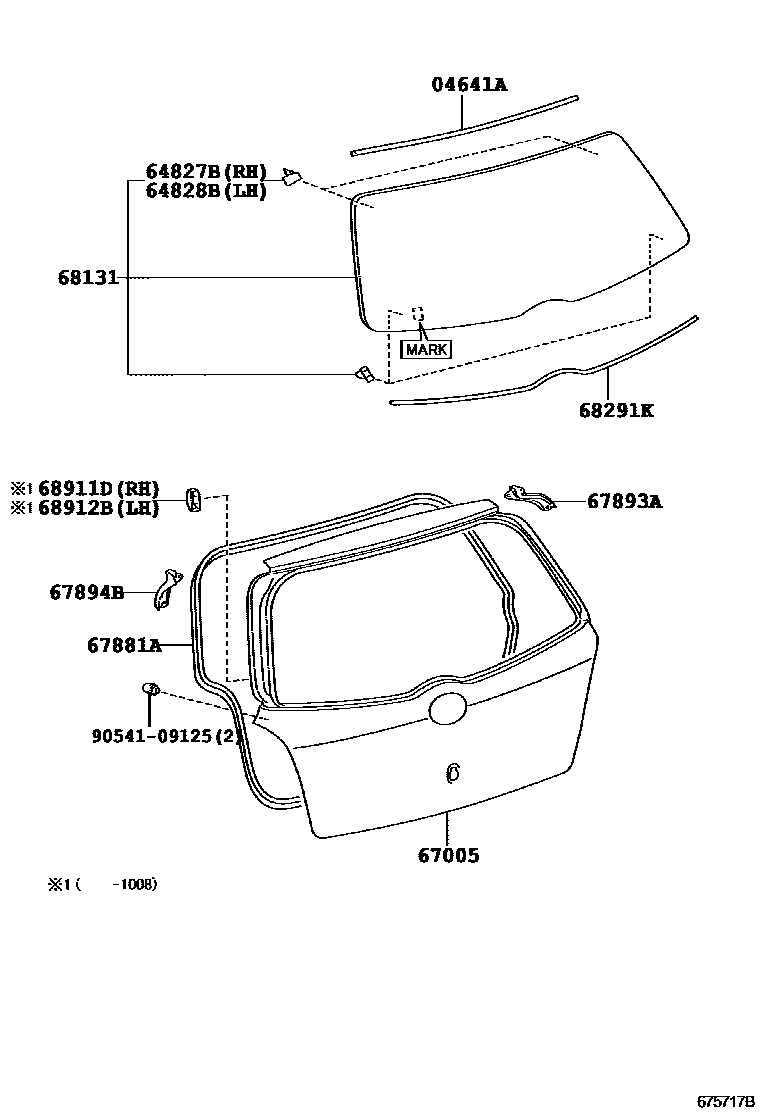

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

04641ADAM KIT, BACK WINDOW GLASS ADHESIVE

main64813-0D100iNCP90,ZSP91..STD200805-201008

64827BCLIP, BACK WINDOW GLASS, RH

main64827-0D040iZSP91..RS200805-201008

GLASS MARK=FUYAO

main64827-0D050iNCP90,ZSP91..STD200805-201008

GLASS MARK=ASAHI

64828BCLIP, BACK WINDOW GLASS, LH

main64828-0D040iNCP90,ZSP91..STD200805-201008

GLASS MARK=FUYAO

main64828-0D050iNCP90,ZSP91..STD200805-201008

GLASS MARK=ASAHI

67005PANEL SUB-ASSY, BACK DOOR

main67005-0D060iZSP91..RS200805-201008

main67005-0D070iNCP90,ZSP91..STD200805

67881AWEATHERSTRIP, BACK DOOR

main67881-0D040iZSP91..RS200805-201008

67893APROTECTOR, BACK DOOR PANEL, NO.1

main67893-0D020iZSP91..RS200805-201008

67894BPROTECTOR, BACK DOOR PANEL, NO.2

main67894-0D020iZSP91..RS200805-201008

68131GLASS, BACK DOOR

main68105-0D080iNCP90,ZSP91..STD200805-201008

*EHT,T=3.1,GREEN,GLASS MARK=FUYAO

main68105-0D090iNCP90,ZSP91..STD200805-201008

*EHT,T=3.1,GREEN,GLASS MARK=ASAHI

68291KDAM KIT, BACK WINDOW GLASS

main64814-0D030iZSP91..RS200805-201008

68911DCOVER, BACK DOOR STAY, RH

main68911-0D020iNCP90,ZSP91200805-201008

68912BCOVER, BACK DOOR STAY, LH

main68912-0D020iNCP90,ZSP91200805-201008

9054109125

main90541-09125

12 parts on this diagram · 2 diagrams in section
