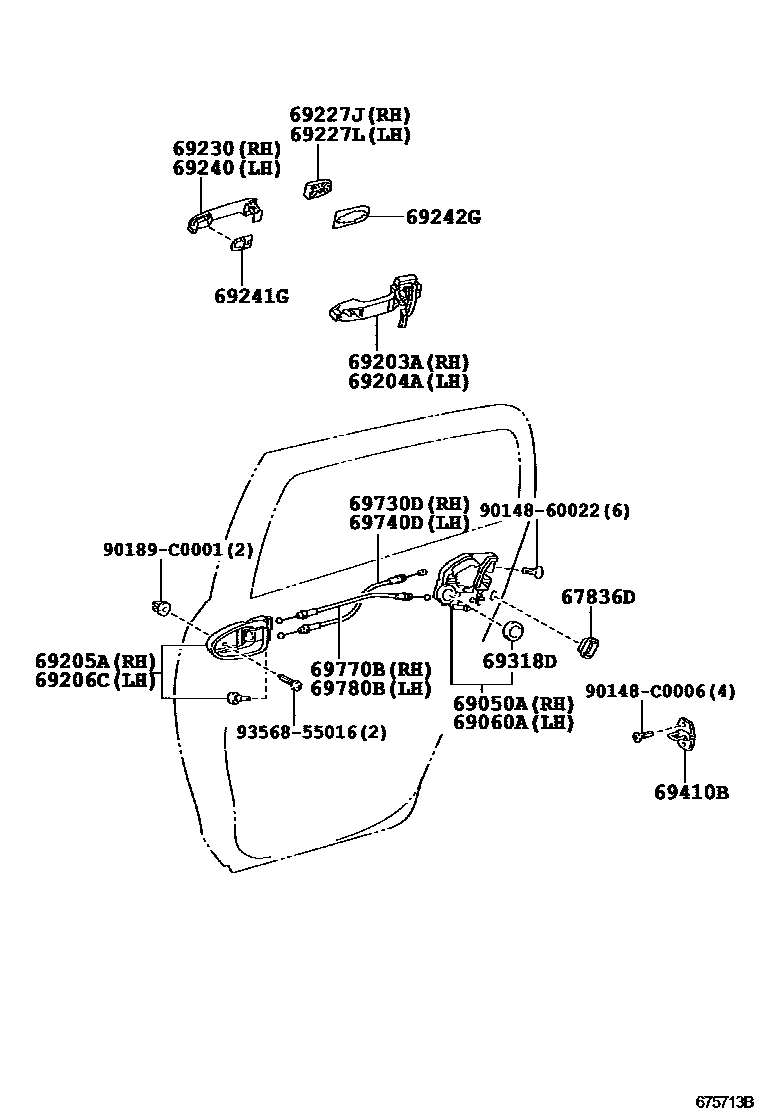

REAR DOOR LOCK & HANDLE
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
1.6E GRADE,GREGE,TRIM4#
GREGE,TRIM4#
DK.GRAY,TRIM1#
GREGE,TRIM4#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
GREGE,TRIM4#
1.6E GRADE,GREGE,TRIM4#
DK.GRAY,TRIM1#
GREGE,TRIM4#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
SUPER WHITE 2,040
GRAY ME.,1G3
SILVER ME.,1D4
BLACK,202
SUPER RED 5,3P0
BEIGE ME.,4R0
BEIGE ME.,4T8
YELLOW,5A6
DK.BLUE MC.,8S6
DARK BLUE MC.,8P8
TRUE BLUE M.M.,8W1
REDDISH PURPLE M.M.,9AC
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
SUPER WHITE 2,040
GRAY ME.,1G3
SILVER ME.,1D4
BLACK,202
SUPER RED 5,3P0
BEIGE ME.,4R0
BEIGE ME.,4T8
YELLOW,5A6
DK.BLUE MC.,8S6
DARK BLUE MC.,8P8
TRUE BLUE M.M.,8W1
REDDISH PURPLE M.M.,9AC
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
9014860022
main90148-60022
90148C0006
main90148-C0006
90189C0001
main90189-C0001
9356855016
main93568-55016
23 parts on this diagram · 1 diagram in section
