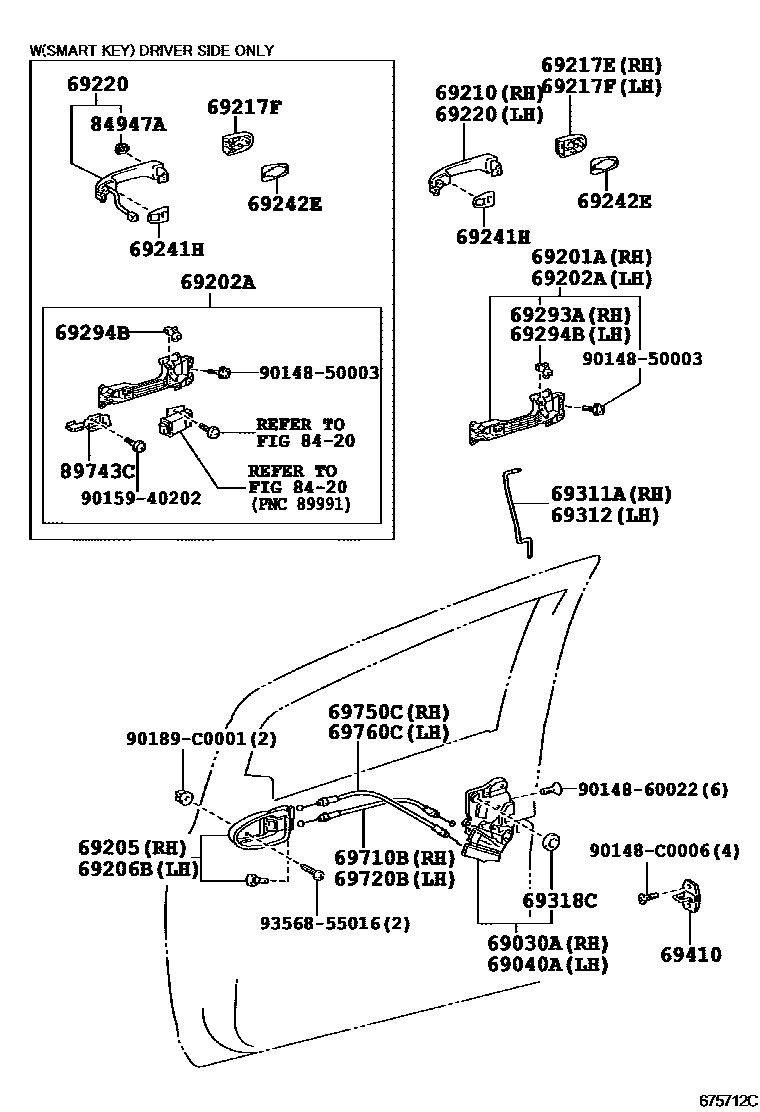

FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START)
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START)
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
GREGE,TRIM4#
1.6E GRADE,GREGE,TRIM4#
DK.GRAY,TRIM1#
GREGE,TRIM4#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
GREGE,TRIM4#
1.6E GRADE,GREGE,TRIM4#
DK.GRAY,TRIM1#
GREGE,TRIM4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START),SUPER WHITE 2,040
SUPER WHITE 2,040
GRAY ME.,1G3
WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START),GRAY ME.,1G3
WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START),SILVER ME.,1D4
SILVER ME.,1D4
WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START),BLACK,202
BLACK,202
SUPER RED 5,3P0
WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START),SUPER RED 5,3P0
BEIGE ME.,4R0
WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START),BEIGE ME.,4R0
BEIGE ME.,4T8
WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START),BEIGE ME.,4T8
WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START),DK.BLUE MC.,8S6
DK.BLUE MC.,8S6
WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START),DARK BLUE MC.,8P8
DARK BLUE MC.,8P8
REDDISH PURPLE M.M.,9AC
WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START),REDDISH PURPLE M.M.,9AC
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START),SUPER WHITE 2,040
SUPER WHITE 2,040
WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START),GRAY ME.,1G3
GRAY ME.,1G3
WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START),SILVER ME.,1D4
SILVER ME.,1D4
BLACK,202
WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START),BLACK,202
WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START),SUPER RED 5,3P0
SUPER RED 5,3P0
WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START),BEIGE ME.,4R0
BEIGE ME.,4R0
WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START),BEIGE ME.,4T8
BEIGE ME.,4T8
DK.BLUE MC.,8S6
WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START),DK.BLUE MC.,8S6
DARK BLUE MC.,8P8
WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START),DARK BLUE MC.,8P8
REDDISH PURPLE M.M.,9AC
WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START),REDDISH PURPLE M.M.,9AC
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
8420
84947ACOVER, DOOR ELECTRICAL KEY SWITCH
WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START)
89743CBRACKET, ELECTRICAL KEY WIRE HARNESS
WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START)
9014850003
main90148-50003
9014860022
main90148-60022
90148C0006
main90148-C0006
9015940202
main90159-40202
90189C0001
main90189-C0001
9356855016
main93568-55016
31 parts on this diagram · 1 diagram in section
