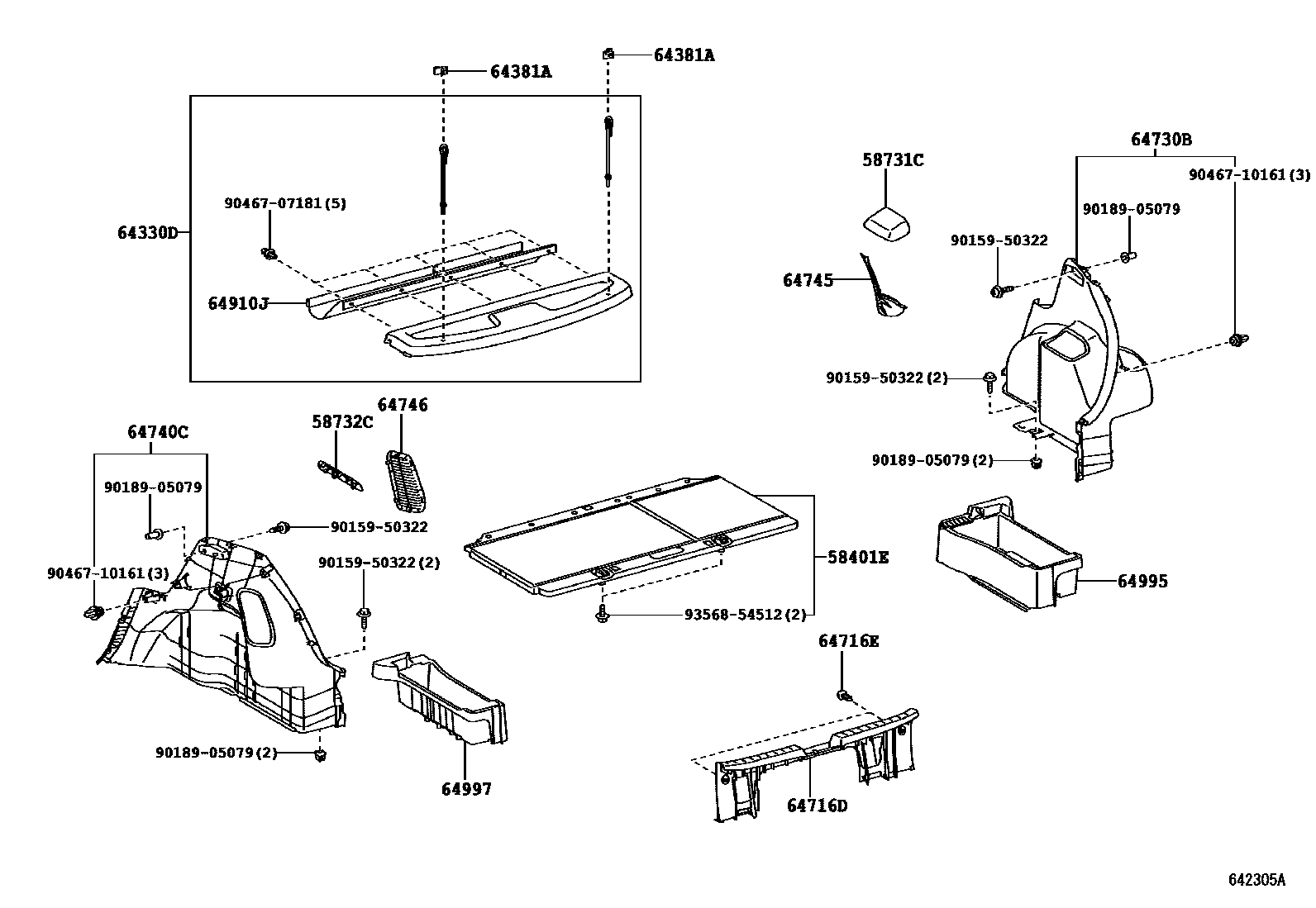

DECK BOARD & DECK TRIM COVER
58401EBOARD SUB-ASSY, DECK
GRAY,TRIM1#
GRAY,TRIM4#
GRAY,TRIM1#,4#
58731CCAP, REAR ABSORBER
DK.GRAY,TRIM1#
DK.GRAY,TRIM4#
DK.GRAY,TRIM1#,4#
58732CCAP, REAR ABSORBER
DK.GRAY,TRIM1#
DK.GRAY,TRIM4#
DK.GRAY,TRIM1#,4#
64330DPANEL ASSY, PACKAGE TRAY TRIM
BLACK,TRIM4#
BLACK,TRIM1#
BLACK,TRIM1#,4#
64381AHANGER, PACKAGE TRAY TRIM
64716DCOVER, DECK TRIM, REAR
64716ECLIP(FOR DECK TRIM REAR COVER)
64730BPANEL ASSY, DECK TRIM SIDE, RH
DK.GRAY,TRIM4#
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#,4#
64740CPANEL ASSY, DECK TRIM SIDE, LH
DK.GRAY,TRIM4#
DK.GRAY,TRIM4#
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#,4#
DK.GRAY,TRIM1#,4#
64745COVER, REAR COMBINATION LAMP SERVICE, RH
DK.GRAY,TRIM1#,4#
DK.GRAY,TRIM1#
DK.GRAY,TRIM4#
64746COVER, REAR COMBINATION LAMP SERVICE, LH
DK.GRAY,TRIM1#
DK.GRAY,TRIM4#
DK.GRAY,TRIM1#,4#
64910JCOVER ASSY, TONNEAU
BLACK,TRIM4#
BLACK,TRIM1#
BLACK,TRIM1#,4#
64995BOX, DECK FLOOR, RH
sub64995-0D061
64997BOX, DECK FLOOR, LH
sub64997-0D061
9015950322
main90159-50322
9018905079
main90189-05079
9046707181
main90467-07181
9046710161
main90467-10161
9356854512
main93568-54512
19 parts on this diagram · 1 diagram in section
