SIDE MEMBER
52562DRETAINER, REAR BUMPER, UPPER SIDE, RH
5701
58745PROTECTOR, QUARTER PANEL, FRONT RH
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61167BBRACE, FRONT BODY PILLAR, LOWER
61201RAIL SUB-ASSY, ROOF SIDE, RH
61211RAIL, ROOF SIDE, OUTER RH
61213BRAIL, ROOF SIDE, OUTER NO.2 RH
61327REINFORCEMENT, CENTER BODY PILLAR, OUTER RH
61343APILLAR, CENTER BODY, INNER RH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61411PANEL, ROCKER, OUTER RH
61415BEXTENSION, ROCKER, OUTER RH
61418AREINFORCEMENT, ROCKER PANEL, RH
61607EPANEL, QUARTER WHEEL HOUSE, INNER RH
61621DTROUGH, BACK DOOR OPENING, RH
61625FEXTENSION, QUARTER PANEL, UPPER RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
sub61631-0D060
61635EEXTENSION, QUARTER WHEEL HOUSE, RH
61665BREINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, RH
61711PANEL, ROOF SIDE, OUTER RH
61731BPANEL, ROOF SIDE, INNER RH
61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH
61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH
61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH
61768BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH
61783BPAD, REAR WHEEL OPENING EXTENSION, NO.1
61824PLATE, NOISE CONTROL, NO.1
61826CPAD, NOISE SHUTTER, NO.3
62151BPAD, COWL SIDE SILENCER
68981ARETAINER, BACK DOOR STAY, RH
75925BTAPE, BLACK OUT, NO.3 RH
827150D760BRACKET,WIRING HARNESS CLAMP
main82715-0D760
90105C0106
main90105-C0106
90105C0110
main90105-C0110

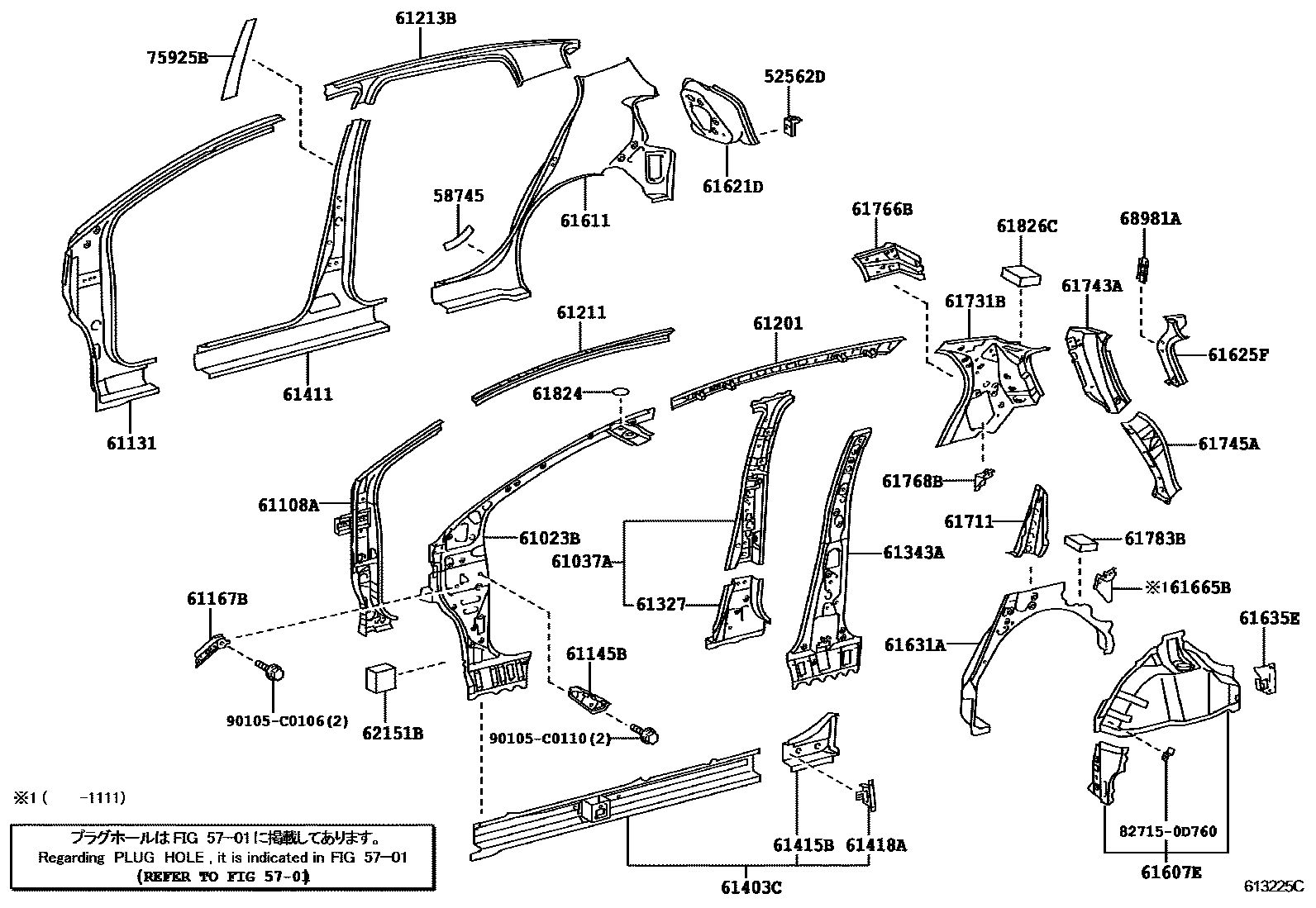

40 parts on this diagram · 2 diagrams in section
