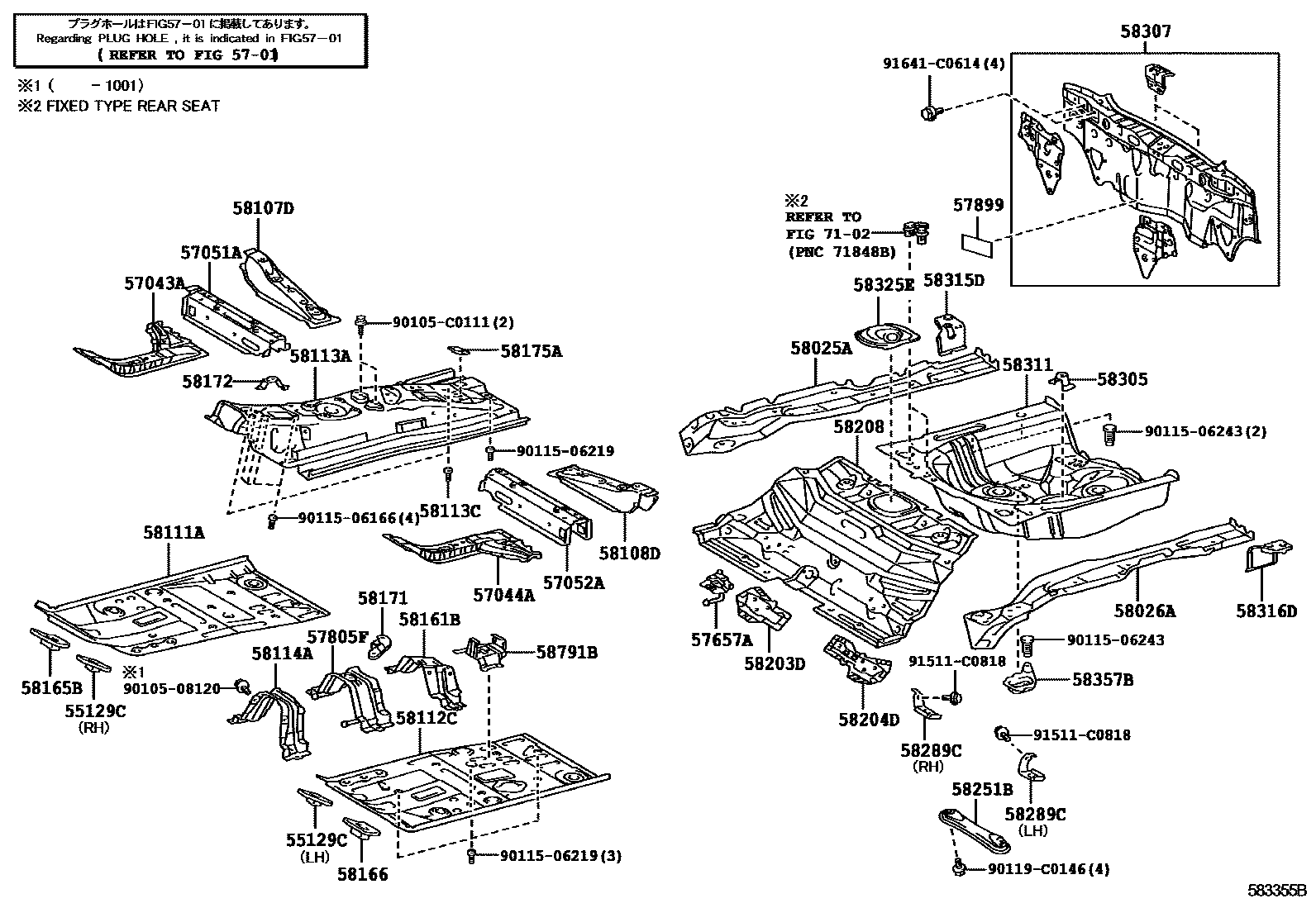

FLOOR PAN & LOWER BACK PANEL

55129CCOVER, DASH PANEL HOLE

main55129-0D120iZSP91..RS200805-201008

RH

main55139-0D040iZSP91..RS200805-201008

LH

5701

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-0D030iZSP91..RS200805-201008

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-0D060iZSP91..RS200805-201008

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-0D020iNCP90,ZSP91..STD200805

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-0D020iZSP91..RS200805-201008

57657ABRACKET, EXHAUST PIPE MOUNTING, NO.2

main51904-0D020iZSP91..RS200805-201008

57805FREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1

main57805-0D080iZSP91..RS200805-201008

57899SEAL, REAR FLOOR, REAR

main57899-0D010iZSP91..RS200805-201008

58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH

main58025-0D010iZSP91..RS200805-201008

58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH

main58026-0D010iZSP91..RS200805-201008

58107DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH

main58107-0D020iZSP91..RS200805-201008

sub58107-0D090

58108DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH

main58108-0D020iZSP91..RS200805-201008

sub58108-0D060

58111APAN, FRONT FLOOR, RH

main58111-0D070iZSP91..RS200805-201008

58112CPAN, FRONT FLOOR, LH

main58112-0D904iZSP91..RS200805-201008

58113APANEL, FRONT FLOOR, CENTER

main58113-0D905iZSP91..RS200805-201008

58113CBOLT, WELD(FOR FRONT FLOOR PANEL, CENTER)

main90115-06243×2iZSP91..RS200805-201008

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-0D080iZSP91..RS200805-201008

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main58161-0D070iNCP90,ZSP91..STD200805

58165BCOVER, FRONT FLOOR, RH

main58165-0D030iNCP90,ZSP91..STD200805

58166COVER, FRONT FLOOR, LH

main58166-0D030iZSP91..RS200805-201008

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-0D040iZSP91..RS200805-201008

58172BRACKET, COMPUTER MOUNTING, NO.3

main58172-0D020iZSP91..RS200805-201008

58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1

main58175-0D010iNCP90,ZSP91..STD200805

58203DBRACKET SUB-ASSY, REAR SEAT HINGE, OUTER RH

main58203-0D020iNCP90,ZSP91..STD200805

58204DBRACKET SUB-ASSY, REAR SEAT HINGE, OUTER LH

main58204-0D020iZSP91..RS200805-201008

58208PAN, CENTER FLOOR

main58211-0D060iNCP90,ZSP91..STD200805

main58211-52240iZSP91..RS200805-201008

58251BBRACE, FLOOR PANEL, FRONT

main58251-0D050×2iZSP91..RS200805-201008

58289CBRACKET, FLOOR BRAKE HOSE, REAR

main58289-0D060iZSP91..RS200805-201008

RH

main58299-0D060iNCP90,ZSP91..STD200805

LH

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58351-0D050iZSP91..RS200805-201008

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-0D090iNCP90,ZSP91200805-201308

58311PAN, REAR FLOOR

main58311-0D060iZSP91..RS200805-201008

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-0D050iNCP90,ZSP91..STD200805

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-0D050iZSP91..RS200805-201008

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-0D040iZSP91..RS200805-201008

58357BBRACKET, ACTUATOR COVER, NO.3 RH

main58357-0D040iZSP91..RS200805-201008

58791BCARRIER, JACK

main58791-0D080iZSP91..RS200805-201008

7102

9010508120

main90105-08120

90105C0111

main90105-C0111

9011506166

main90115-06166

9011506219

main90115-06219

9011506243

main90115-06243

90119C0146

main90119-C0146

91511C0818

main91511-C0818

91641C0614

main91641-C0614

46 parts on this diagram · 1 diagram in section
