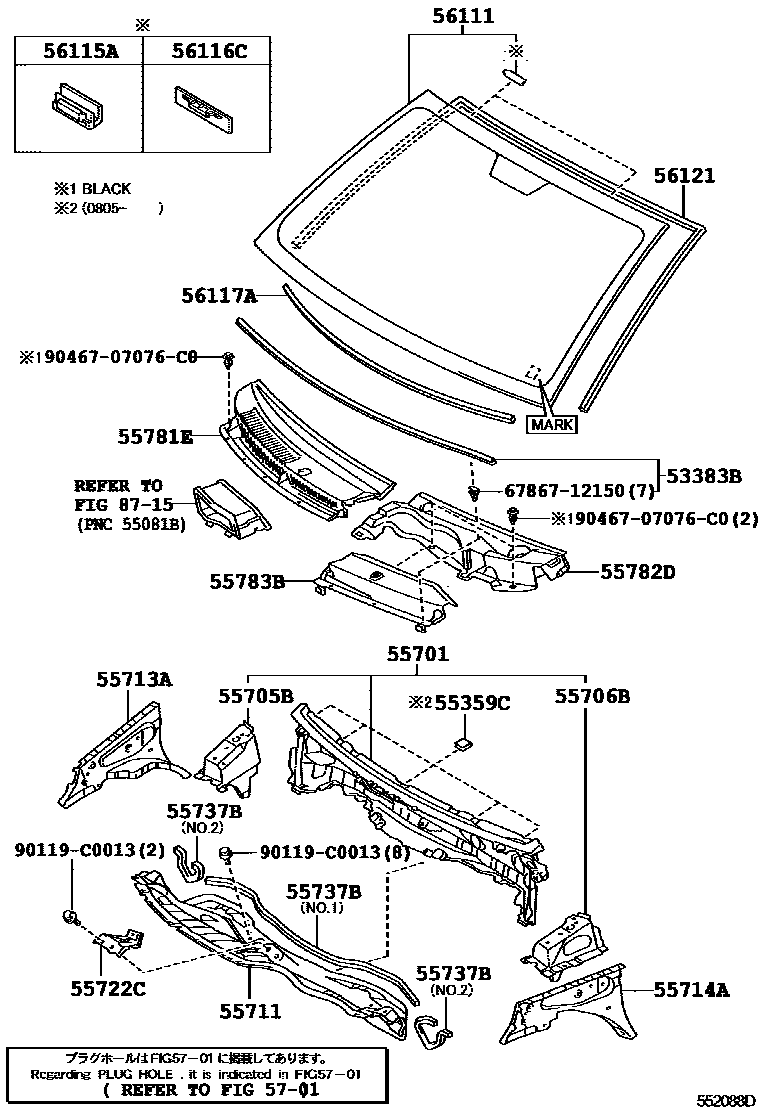

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-0D100iZSP91..RS200805-201008

55359CCOSHION, INSTRUMENT PANEL, NO.5

main55359-52160iZSP91..RS¥70200805-201008

55701PANEL SUB-ASSY, COWL

main55700-0D160iNCP90,ZSP91200805-201308

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-0D080iZSP91..RS200805-201008

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-0D070iZSP91..RS200805-201008

55711PANEL, COWL TOP, OUTER

main55701-0D120iZSP91..RS200805-201008

55713APANEL, COWL TOP SIDE, RH

main55713-0D070iNCP90,ZSP91200805-201308

55714APANEL, COWL TOP SIDE, LH

main55714-0D070iNCP90,ZSP91200805-201308

55722CBRACE, COWL TOP TO COWL, INNER

main55722-0D050iZSP91..RS200805-201008

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-0D110iZSP91..RS200805-201008

NO.1

main55737-0D120iNCP90,ZSP91..STD200805-201008

NO.2

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-0D160iZSP91..RS200805-201008

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-0D060iNCP90,ZSP91..STD200805-201008

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-0D130iZSP91..RS200805-201008

56111GLASS, WINDSHIELD

main56101-0D905iZSP91..RS200805-201008

*LAM,T=4.56,GREEN,GLASS MARK=ASAHI

main56101-0D906iNCP90,ZSP91..STD200805-201008

*LAM,T=4.56,GREEN,GLASS MARK=FUYAO

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iNCP90,ZSP91..STD¥130200805-201008

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iZSP91..RS¥120200805-201008

56117ADAM, WINDOW GLASS ADHESIVE

main56117-52130iZSP91..RS¥760200805-201008

L=1010

sub56117-50140¥870

56121WEATHERSTRIP, WINDSHIELD

main56121-0D020iZSP91..RS200805-201008

GLASS MARK=ASAHI

main56121-0D030iNCP90,ZSP91..STD200805-201008

GLASS MARK=FUYAO

5701

8715

6786712150CLIP, DOOR WEATHERSTRIP

main67867-12150¥100

90119C0013

main90119-C0013

9046707076C0

main90467-07076C0

23 parts on this diagram · 1 diagram in section
