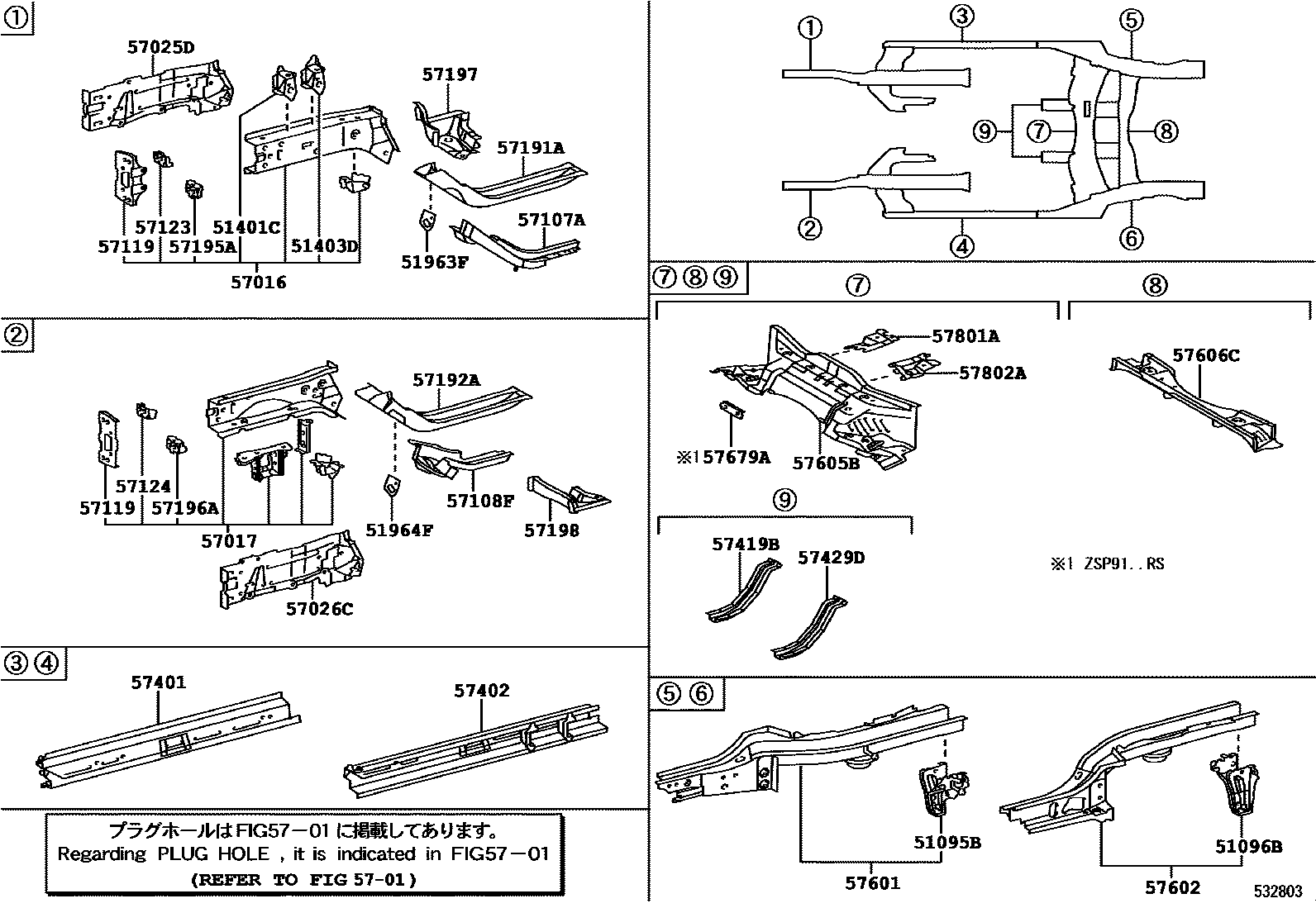

FLOOR SIDE MEMBER
51095BHOOK SUB-ASSY, TRANSPORT, REAR RH
51096BHOOK SUB-ASSY, TRANSPORT, REAR LH
51401CBRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51403DBRACKET SUB-ASSY, ENGINE REAR MOUNTING
51963FHOOK, TRANSPORT
51964FHOOK, TRANSPORT, LH
5701
57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
57025DMEMBER SUB-ASSY, FRONT SIDE, OUTER RH
57026CMEMBER SUB-ASSY, FRONT SIDE, OUTER LH
57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
57108FBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR LH
57119PLATE, FRONT SIDE MEMBER, FRONT
RH
LH
57123SUPPORT, FRONT SIDE MEMBER, RH
57124SUPPORT, FRONT SIDE MEMBER, LH
57191AMEMBER, FRONT SIDE, INNER REAR RH
57192AMEMBER, FRONT SIDE, INNER REAR LH
57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH
57196AREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH
57197BOX, TORQUE, FRONT RH
57198BOX, TORQUE, FRONT LH
57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57419BREINFORCEMENT, FRONT FLOOR UNDER, REAR
57429DREINFORCEMENT, FRONT FLOOR UNDER, REAR LH
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57679ARETAINER, REAR FLOOR CROSSMEMBER
57801AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, RH
57802AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, LH
33 parts on this diagram · 1 diagram in section
