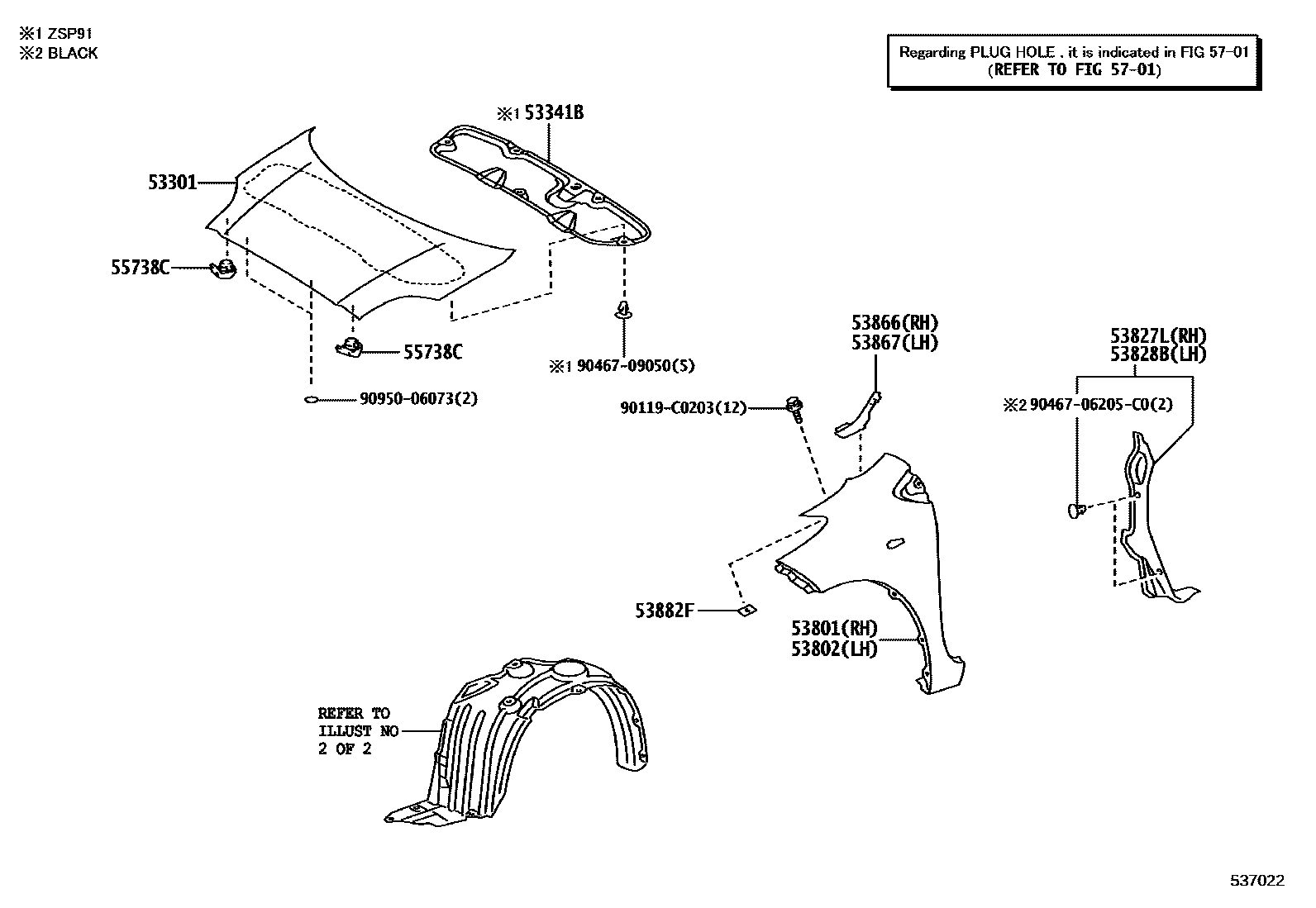

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-0D070iNCP90,ZSP91200805-201308

53341BINSULATOR, HOOD

main53341-0D100iZSP91..STD200805-201008

53801FENDER SUB-ASSY, FRONT RH

main53811-0D130iNCP90,ZSP91200912-201308

main53811-52210iNCP90,ZSP91200805-200911

sub53811-52410

53802FENDER SUB-ASSY, FRONT LH

main53812-0D130iNCP90,ZSP91200912-201308

main53812-52210iNCP90,ZSP91200805-200911

sub53812-52380

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-0D050iZSP91..RS200805-201008

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-0D050iZSP91..RS200805-201008

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-0D060iNCP90,ZSP91..STD200805-201008

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-0D060iZSP91..RS200805-201008

53882FSEAL, FRONT FENDER

main53882-16030iNCP90,ZSP91200805-201308

55738CSTOPPER, HOOD, RH

main55738-0D040iZSP91..RS200805-201008

5701

90119C0203

main90119-C0203

9046706205C0

main90467-06205C0

9046709050

main90467-09050

9095006073

main90950-06073

15 parts on this diagram · 2 diagrams in section
