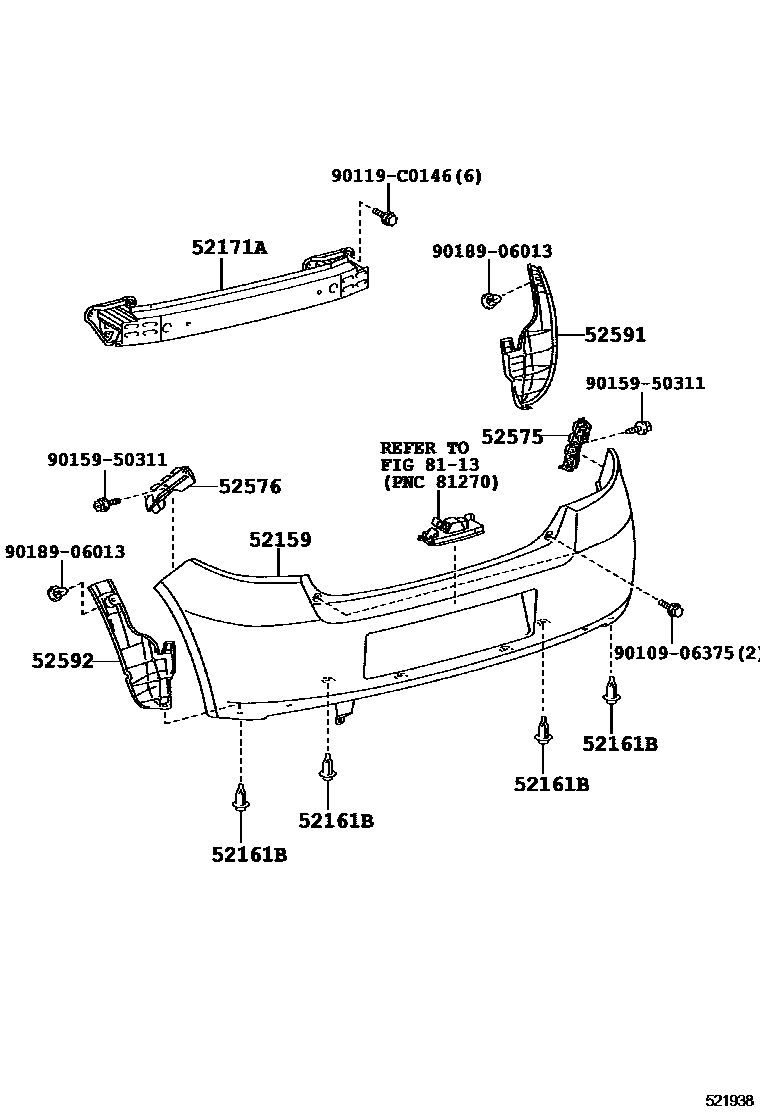

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52159COVER, REAR BUMPER

main52159-0D985iNCP90,ZSP91200805-201008

PAINT REQ.

main52159-0D990iNCP90,ZSP91..STD201008

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-16010iZSP91..RS¥120200805-201008

sub52161-0K040¥120

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52023-0D050iNCP90,ZSP91200805-201008

main52023-0D070iNCP90,ZSP91201008-201308

52575RETAINER, REAR BUMPER SIDE, RH

main52575-0D080iZSP91..RS200805-201008

52576RETAINER, REAR BUMPER SIDE, LH

main52576-0D080iZSP91..RS200805-201008

52591SEAL, REAR BUMPER SIDE, RH

main52591-0D090iZSP91..RS200805-201008

52592SEAL, REAR BUMPER SIDE, LH

main52592-0D090iZSP91..RS200805-201008

8113

9010906375

main90109-06375¥80

90119C0146

main90119-C0146

9015950311

main90159-50311¥70

9018906013

main90189-06013¥70

12 parts on this diagram · 2 diagrams in section
