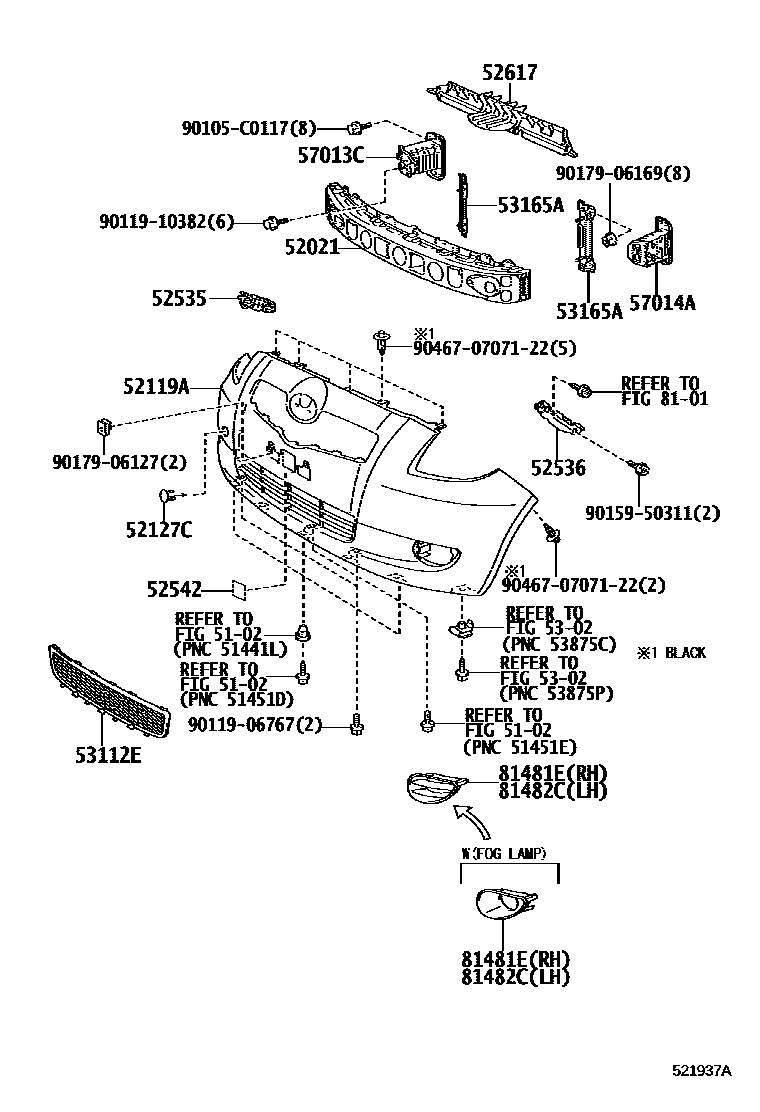

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

5102

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-0D100iNCP90,ZSP91200805-201308

52119ACOVER, FRONT BUMPER

main52119-0D999iNCP90,ZSP91200805-201008

PAINT REQ.

main52119-0U901iNCP90,ZSP91..STD201008

PAINT REQ.

52127CCOVER, FRONT BUMPER HOLE

main52127-0D908iNCP90,ZSP91200805-201008

main52127-0D913iNCP90,ZSP91..STD201008

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-0D040iZSP91..RS200805-201008

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-0D040iZSP91..RS200805-201008

52542SEAL, FRONT BUMPER, CENTER

main52542-0D020iNCP90,ZSP91200805-201008

52617ABSORBER, RADIATOR SUPPORT, UPPER

main52617-0D030iNCP90,ZSP91..STD201008

main52617-0D060iNCP90,ZSP91200805-201008

5302

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-0D080iNCP90,ZSP91200805-201008

NO PAINT REQ.

main53112-0D230iNCP90,ZSP91..STD201008

NO PAINT REQ.

53165ABRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1

main53164-0D040iNCP90,ZSP91200805-201308

RH

main53165-0D040iNCP90,ZSP91200805-201308

LH

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-0D020iNCP90,ZSP91200805-201301

main57013-0D021iNCP90,ZSP91201302-201308

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-0D020iNCP90,ZSP91200805-201308

8101

81481ECOVER, FOG LAMP, RH

main81481-0D030iNCP90200805-201008

main81481-0D040iZSP91200805-201008

main81481-0D160iNCP90201008

1.6E GRADE

main81481-0D170iZSP91..STD201008

81482CCOVER, FOG LAMP, LH

main81482-0D040iNCP90200805-201008

main81482-0D050iZSP91200805-201008

main81482-0D170iNCP90201008

1.6E GRADE

main81482-0D180iZSP91..STD201008

90105C0117

main90105-C0117

9011906767

main90119-06767

9011910382

main90119-10382

9015950311

main90159-50311

9017906127

main90179-06127

9017906169

main90179-06169

904670707122

main90467-0707122

23 parts on this diagram · 2 diagrams in section
