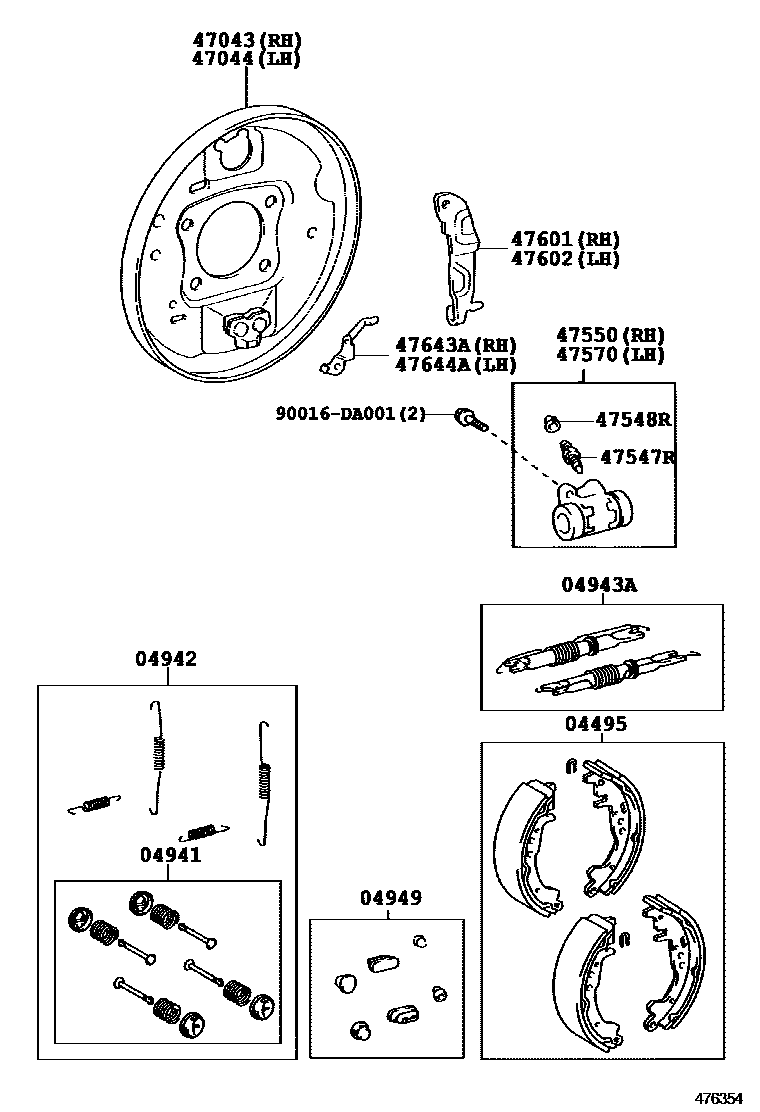

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04495SHOE KIT, REAR BRAKE

main04495-0D070iZSP91..RS200805-201008

MARK SABC LN521-FF

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-0D070iZSP91..RS200805-201008

04942SPRING KIT, REAR BRAKE

main04942-0D080iZSP91..RS200805-201008

04943ASTRUT KIT, REAR BRAKE

main04943-0D050iZSP91..RS200805-201008

04949PLUG KIT, REAR BRAKE

main04949-0D040iZSP91..RS200805-201008

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-0D070iNCP90,ZSP91200805-201308

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-0D070iZSP91..RS200805-201008

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010iNCP90,ZSP91¥200200805-201308

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iNCP90,ZSP91¥160200805-201308

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-0D060iNCP90,ZSP91200805-201308

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-0D040iZSP91..RS200805-201008

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-0D070iNCP90,ZSP91200805-201308

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-0D070iZSP91..RS200805-201008

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-0D070iNCP90,ZSP91200805-201308

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-0D070iZSP91..RS200805-201008

90016DA001

main90016-DA001

16 parts on this diagram · 1 diagram in section
