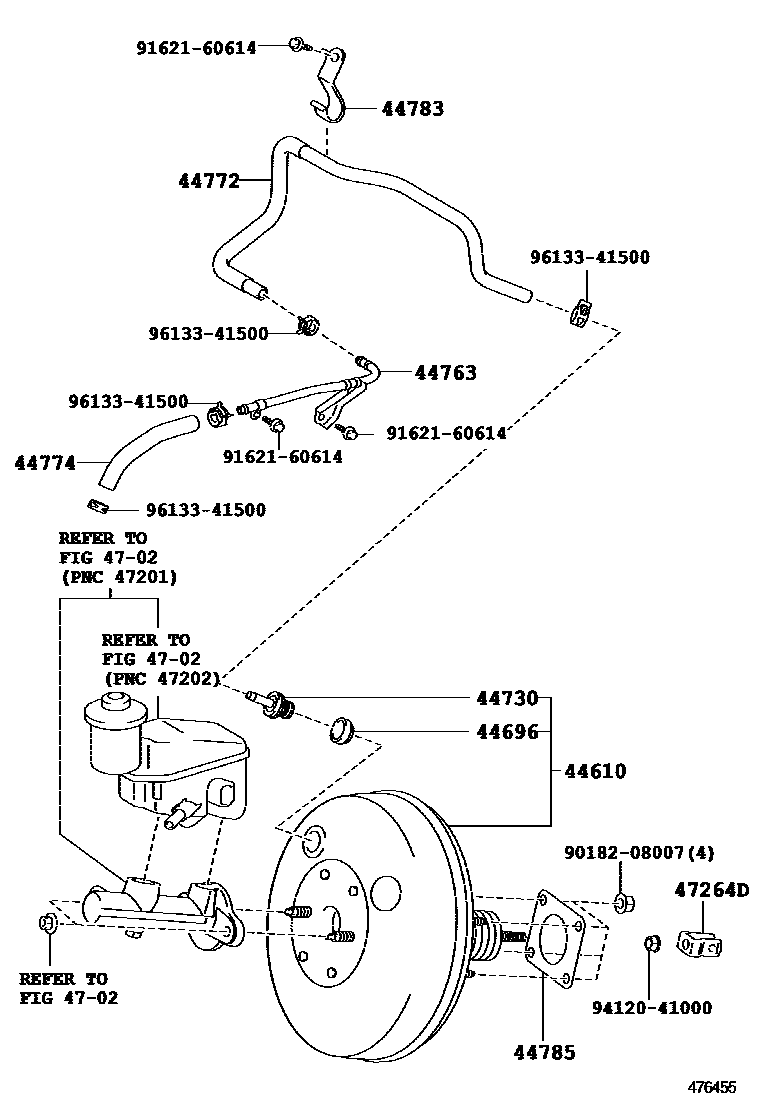

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

44610BOOSTER ASSY, BRAKE

main44610-0D190iZSP91..RS200805-201008

44696GROMMET, CHECK VALVE

main90080-48071iZSP91..RS200805-201008

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20080iZSP91..RS¥1,360200805-201008

44763TUBE, BOOSTER VACUUM

main44763-52080iNCP90¥1,600200805

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-0D060iZSP91..RS200805-201008

main44772-0D070iNCP90200805

44774HOSE, UNION TO CONNECTOR TUBE

main95446-09130iNCP90¥460200805

44783CLAMP, VACUUM HOSE

main44783-52040iZSP91..RS¥440200805-201008

44785GASKET, BRAKE BOOSTER

main44785-06020iZSP91..RS200805-201008

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-0D050iZSP91..RS200805-201008

9018208007

main90182-08007¥100

9162160614

main91621-60614¥120

9412041000

main94120-41000¥80

9613341500

main96133-41500¥140

14 parts on this diagram · 2 diagrams in section
