PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-0D150-B0iZSP91..RS200805-201008

DK.GRAY,TRIM1#

main46201-0D150-B0iNCP90200805-201308

DK.GRAY,TRIM4#

main46201-0D150-B0iNCP90200805-201308

DK.GRAY,TRIM1#,4#

46235BRACKET, PARKING BRAKE LEVER SUPPORT

main46235-0D050iZSP91..RS200805-201008

46302ROD SUB-ASSY, PARKING BRAKE PULL, NO.1

main46302-0D050iZSP91..RS200805-201008

46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)

main46411-0D050iZSP91..RS200805-201008

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0D150iNCP90,ZSP91200805-201205

sub46420-0D151

main46420-0D151iNCP90,ZSP91201206-201308

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46402-52030iNCP90,ZSP91200805-201308

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0D150iNCP90,ZSP91200805-201308

46441NUT, WIRE ADJUSTING, NO.1

main46441-52010iZSP91..RS200805-201008

8401

90119C0020

main90119-C0020

90119C0097

main90119-C0097

90178C0032

main90178-C0032

91611G0612

main91611-G0612

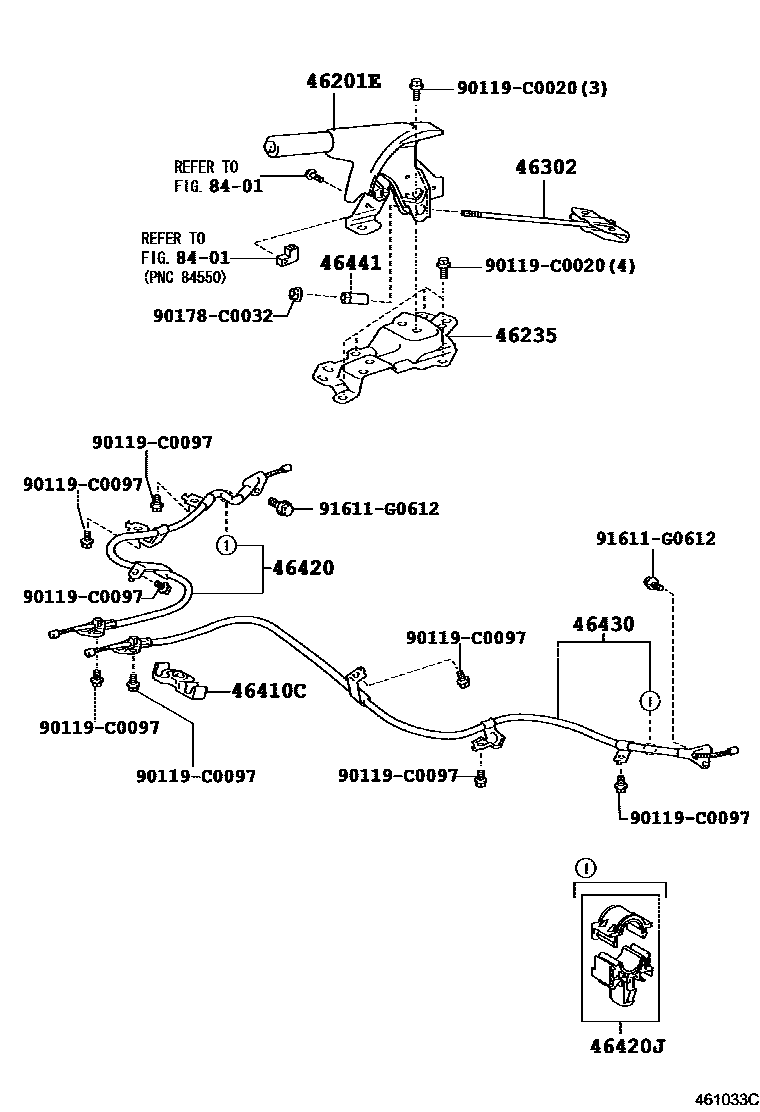

13 parts on this diagram · 1 diagram in section
