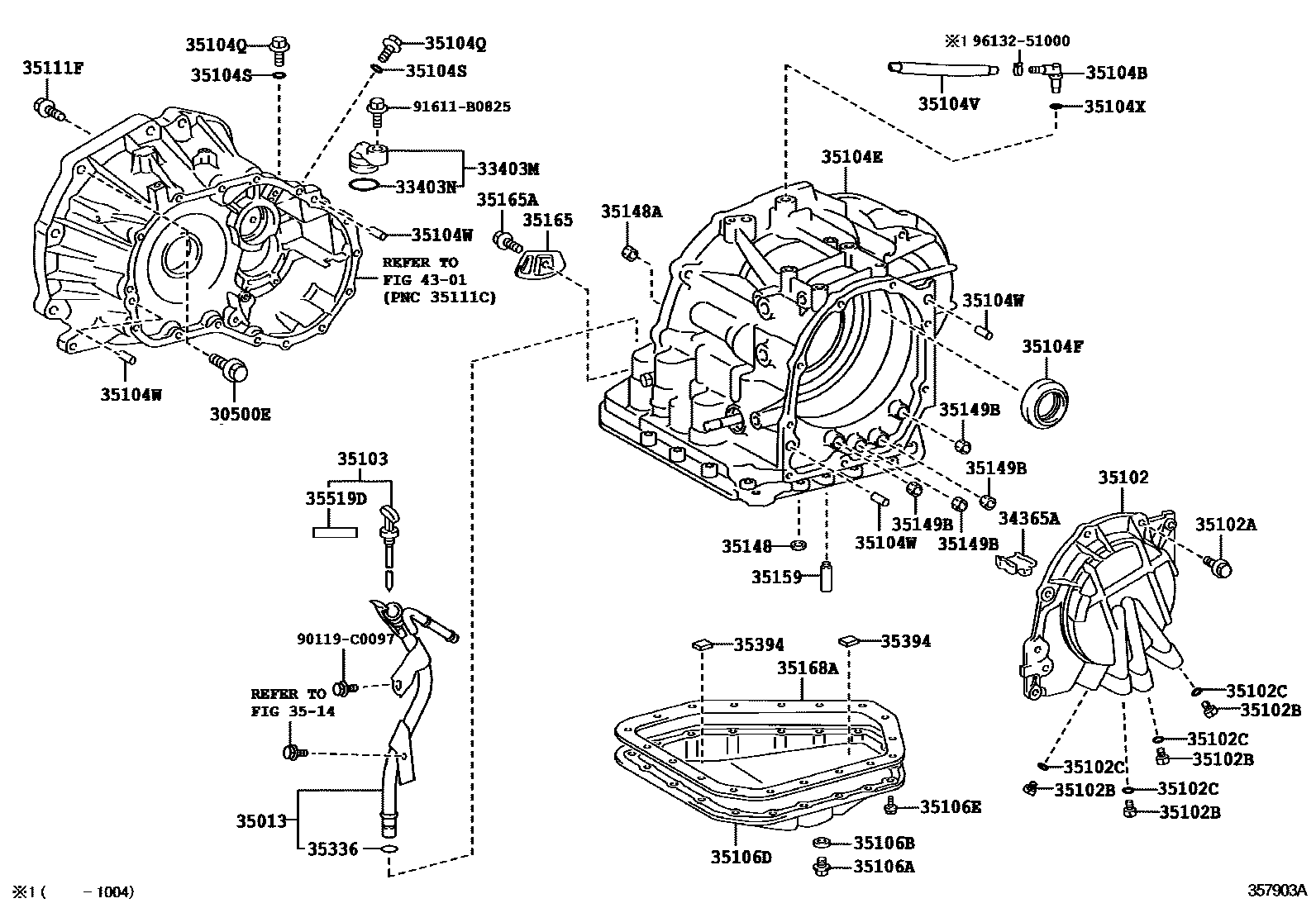

TRANSMISSION CASE & OIL PAN (ATM)

0001 1U441E 0002 1U340E 0003 1U340E

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90119-C0139iZSP91..4FC..RS200805-201008

*10-1.25PX45-30,(L)

main91612-61045iZSP91..4FC..RS¥120200805-201008

*10-1.25PX45-30,(J)

33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)

main33403-06010iZSP91..4FC200805

main33403-35230iNCP90..4FC¥1,180200805

33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)

main96711-24018iZSP91..4FC..RS¥160200805-201008

main96711-24030iNCP90..4FC¥170200805

34365ARETAINER, OUTER RACE

main34365-52012iZSP91..4FC¥50200805

main34365-52020iNCP90..4FC¥70200805

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-0D080iNCP90..4FC201003

main35013-0D090iZSP91..4FC..RS201003-201008

main35013-52140iNCP90..4FC¥2,710200805-201003

main35013-52210iZSP91..4FC200805-201003

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-52020iZSP91..4FC¥16,900200805

main35102-52030iNCP90..4FC¥20,300200805

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08365iZSP91..4FC¥90200805

*8-1.25PX28-20

main90105-08375iNCP90..4FC¥80200805

*8-1.25PX25-25

35102BPLUG(FOR TRANSAXLE REAR COVER)

main90341-08001iNCP90,ZSP91..4FC¥120200805

35102CRING, O(FOR TRANSAXLE REAR COVER PULG)

main90301-06196iNCP90,ZSP91..4FC¥170200805

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-0D080iNCP90..4FC201003

main35103-0D090iZSP91..4FC..RS201003-201008

main35103-52200iNCP90..4FC200805-201003

main35103-52210iZSP91..4FC200805-201003

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03156iNCP90..4FC¥260200805

main90930-03166iZSP91..4FC¥300200805

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-52090iNCP90..4FC¥76,800200805

main35104-52110iZSP91..4FC200805-201003

sub35104-52111

sub90301-06008¥220

sub90301-10189¥170

main35104-52111iZSP91..4FC201003

35104FSEAL, OIL (FOR TRANSAXLE CASE)

main90311-34026iNCP90..4FC¥470200805

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001iNCP90..4FC¥120200805

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196iNCP90..4FC¥170200805

35104VHOSE (FOR BREATHER PLUG)

main90447-11039iNCP90..4FC¥970200805

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10017iZSP91..4FC¥130200805

main90250-10034iNCP90..4FC¥100200805

35104XRING, O (FOR BREATHER PLUG)

main90301-06005iZSP91..4FC¥170200805-201307

main90301-06021iZSP91..4FC¥140201307

main90301-08015iNCP90..4FC¥140200805

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iNCP90..4FC¥100200805

main90341-18016iZSP91..4FC¥190200805

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iNCP90..4FC¥190200805

main90430-18008iZSP91..4FC¥110200805

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-52020iZSP91..4FC¥3,130200805

main35106-52030iNCP90..4FC¥3,750200805

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173iZSP91..4FC¥80200805

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08071iZSP91..4FC¥80200805

*8-1.25PX30-25

3514

35148GASKET, GOVERNOR APPLY, NO.1

main35145-60020iNCP90..4FC¥360200805

35148AGASKET, GOVERNOR APPLY, NO.2

main35148-12010iNCP90..4FC¥410200805

35149BGASKET, TRANSAXLE CASE 2ND BRAKE

main35149-12020iNCP90..4FC¥760200805

main35149-21010iZSP91..4FC¥310200805

35159GASKET, BRAKE DRUM

main35159-21010iZSP91..4FC¥530200805

main35159-52010iNCP90..4FC¥1,490200805

35165PLATE, TRANSMISSION CASE, NO.1

main35165-52010iNCP90..4FC¥260200805

main35165-52030iZSP91..4FC¥240200805

35165ABOLT (FOR TRANSMISSION CASE PLATE NO.1)

main90105-06049iNCP90..4FC¥70200805

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-52010iNCP90..4FC¥550200805

main35168-52020iZSP91..4FC¥580200805

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iNCP90,ZSP91..4FC¥140200805-201008

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iZSP91..4FC¥360200805

main35394-48010iNCP90..4FC¥280200805

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-28041iNCP90,ZSP91..4FC200805-201308

4301

90119C0097

main90119-C0097

91611B0825

main91611-B0825¥160

9613251000

main96132-51000¥160
