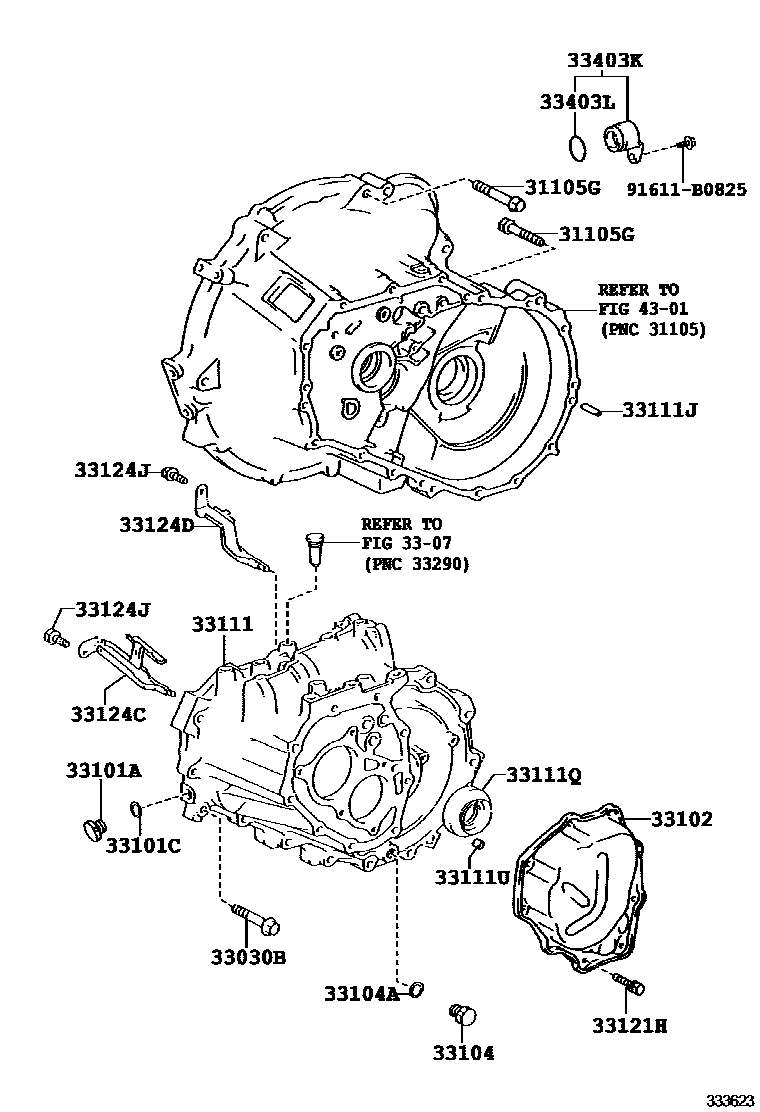

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90119-C0139iZSP91..5F..RS200805-201008

*10-1.25PX45-30,(L)

main91612-61045iZSP91..5F..RS200805-201008

*10-1.25PX45-30,(J)

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08353iNCP90,ZSP91..5F200805-201308

*8-1.25PX50-30

main90105-08430iNCP90,ZSP91..5F200805-201308

*8-1.25PX45-27.5

3307

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-C0003iZSP91..5F..RS200805-201008

sub90341-C0016

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iZSP91..5F..RS200805-201008

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-0D020iNCP90,ZSP91..5F200805-201308

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-C0003iZSP91..5F..RS200805-201008

sub90341-C0016

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iZSP91..5F..RS200805-201008

33111CASE, MANUAL TRANSMISSION

main33111-02030iZSP91..5F..RS200805-201008

sub33111-02070

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iZSP91..5F..RS200805-201008

L=23,OD=8

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90311-C0006iNCP90,ZSP91..5F201101

main90311-C0011iNCP90,ZSP91..5F200805-201101

sub90311-C0006

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iZSP91..5F..RS200805-201008

L=11,OD=11

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90119-08782iNCP90,ZSP91..5F200805-201308

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-0D020iZSP91..5F..RS200805-201008

main33124-20050iNCP90,ZSP91..5F200905-201005

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-0D030iNCP90,ZSP91..5F200805-201308

33124JBOLT, W/WASHER

main91611-G0820iNCP90,ZSP91..5F200805-201308

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-35230iZSP91..5F..RS200805-201008

33403LRING, O

main96711-24030iZSP91..5F..RS200805-201008

4301

91611B0825

main91611-B0825

20 parts on this diagram · 1 diagram in section
