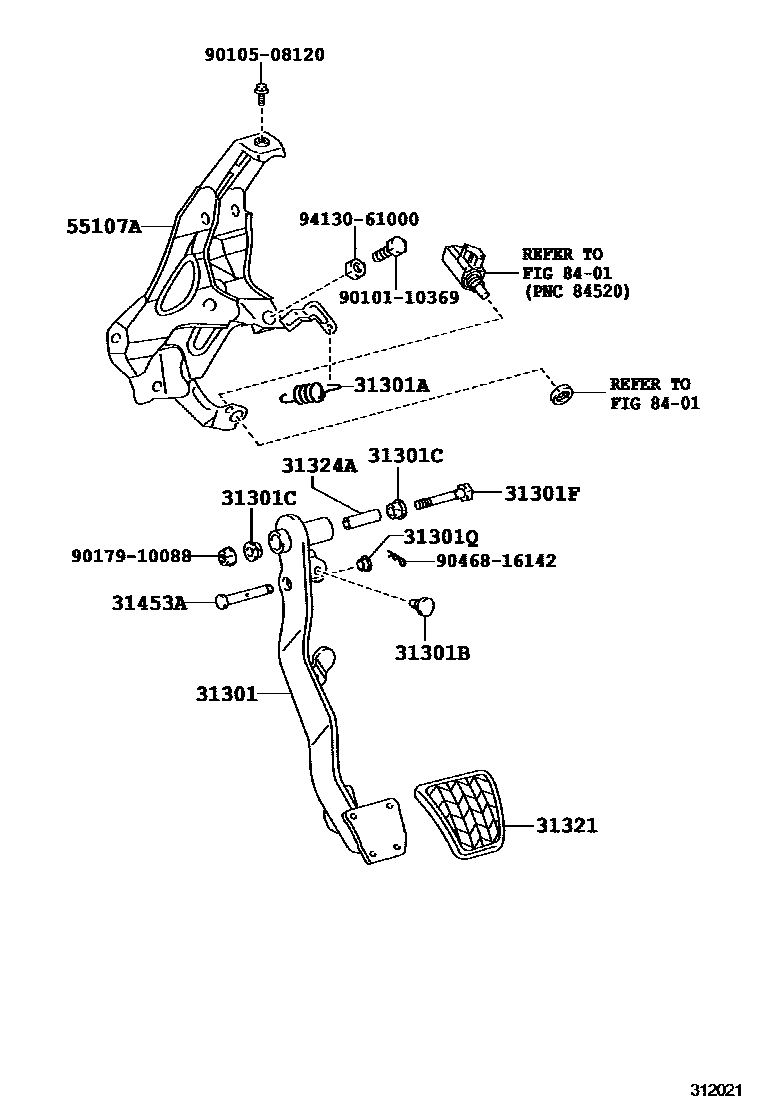

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-0D090iNCP90,ZSP91..5F200805-201303

main31301-0D180iNCP90,ZSP91..5F201303

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14047iZSP91..5F..RS200805-201008

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iNCP90,ZSP91..5F200805

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iNCP90,ZSP91..5F200805

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10081iNCP90,ZSP91..5F200805-201302

main90105-10563iNCP90,ZSP91..5F201303

31301QBUSH(FOR CLUTCH PEDAL SPRING)

main90386-08002iNCP90,ZSP91..5F200805

31321PAD, CLUTCH PEDAL

main31321-0D080iNCP90,ZSP91..5F201305

main31321-52010iNCP90,ZSP91..5F200805-201304

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10004iNCP90,ZSP91..5F200805

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08221iNCP90,ZSP91..5F201208-201308

L=53

main90249-08286iNCP90,ZSP91..5F200805-201208

L=46

sub47148-20020

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-0D120iNCP90,ZSP91..5F200805-201303

main55107-0D240iNCP90,ZSP91..5F201303

9010110369

main90101-10369

9010508120

main90105-08120

9017910088

main90179-10088

9046816142

main90468-16142

9413061000

main94130-61000

15 parts on this diagram · 2 diagrams in section
