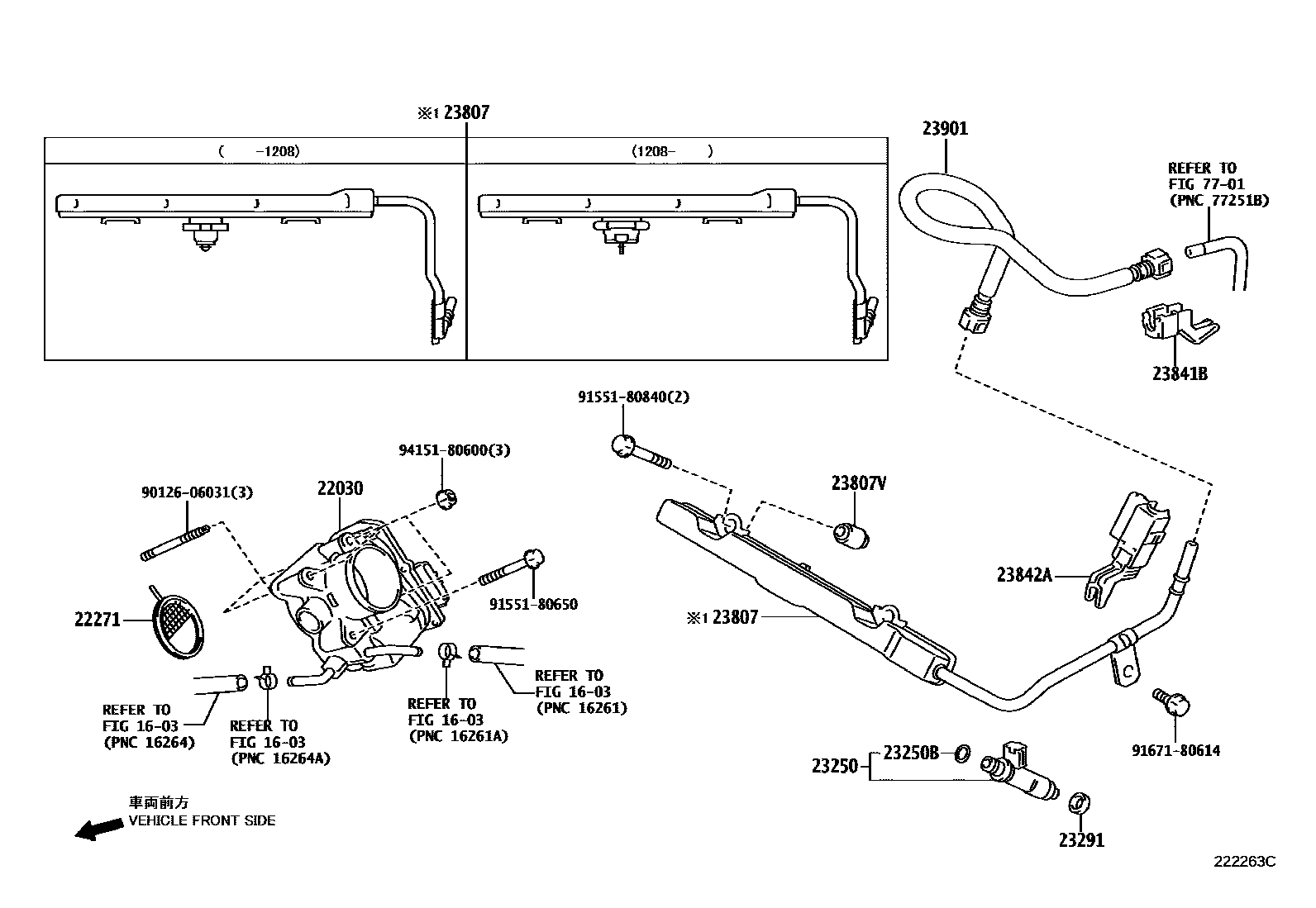

FUEL INJECTION SYSTEM
1603
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271GASKET, THROTTLE BODY
STAMPING MODEL = 4ZR
STAMPING MODEL = 4ZR,(L)
(L)
(J)
23250BRING, O(FOR FUEL INJECTOR)
STAMPING MODEL = 4ZR
23291INSULATOR, INJECTOR VIBRATION
(L)
STAMPING MODEL = 4ZR,(L)
STAMPING MODEL = 4ZR
(J)
23807VSPACER, NO.1(FOR DELIVERY PIPE)
STAMPING MODEL = 4ZR
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23901TUBE SUB-ASSY, FUEL
7701
9012606031
main90126-06031
9155180650
main91551-80650
9155180840
main91551-80840
9167180614
main91671-80614
9415180600
main94151-80600
17 parts on this diagram · 2 diagrams in section
