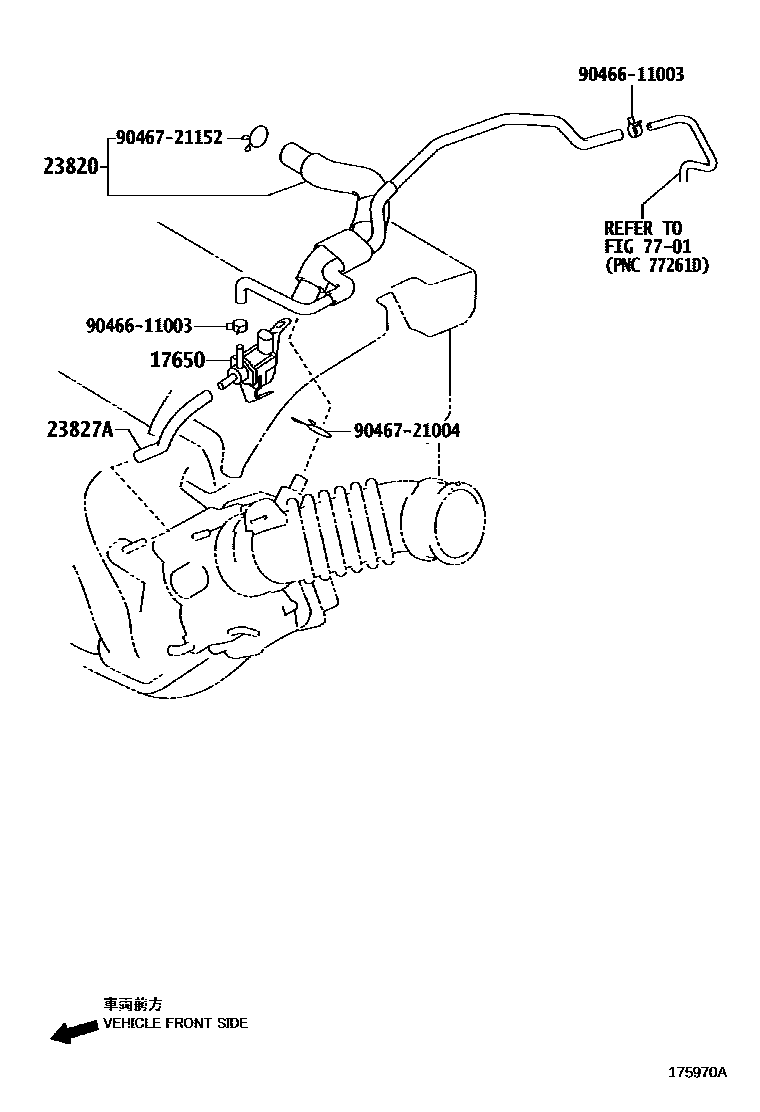

VACUUM PIPING

0001 1 0002 1 0003 1

17650VALVE ASSY, VACUUM SWITCHING

main25860-21070i2NZFE..NCP90¥5,600200805

23820HOSE ASSY, FUEL VAPOR FEED

main23820-21100i2NZFE..NCP90¥4,540200805

sub23820-21101¥3,780

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-21150i2NZFE..NCP90¥640200805

main23827-37020i1ZRFE..ZSP91..4FC¥450200811

STAMPING MODEL = 4ZR

7701

9046611003

main90466-11003¥100

9046721004

main90467-21004¥130

9046721152

main90467-21152¥350

7 parts on this diagram · 3 diagrams in section
