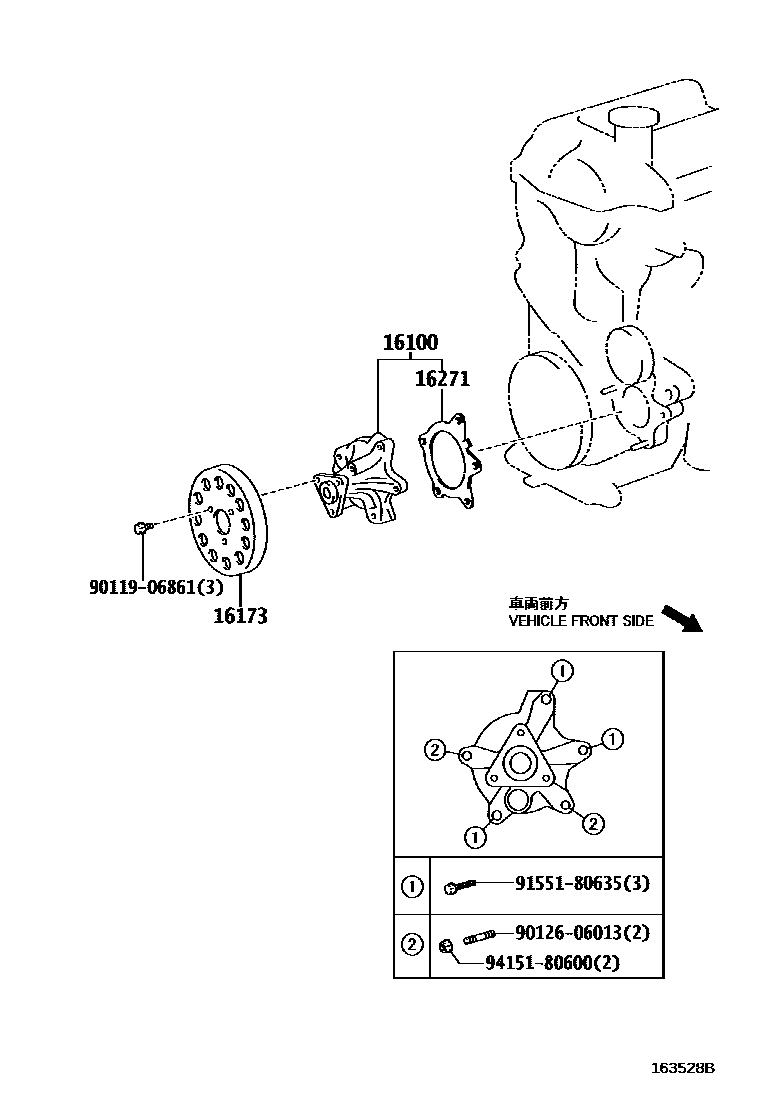

WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-09550i1ZRFE..ZSP91200909-201308

(L)

main16100-09550i1ZRFE..ZSP91200909-201308

STAMPING MODEL = 4ZR,(L)

main16100-29156i2NZFE..NCP90200805-201111

sub16100-29157

main16100-29157i2NZFE..NCP90201111

sub16100-29158

main16100-39465i1ZRFE..ZSP91..4FC200811-200906

STAMPING MODEL = 4ZR

sub16100-39466

sub91551-80825

main16100-39466i1ZRFE..ZSP91200906-200909

STAMPING MODEL = 4ZR,(J)

main16100-39466i1ZRFE..ZSP91200906-200909

(J)

16173PULLEY, WATER PUMP

main16173-21020i2NZFE..NCP90200805

sub16173-21021

16271GASKET, WATER PUMP

main16271-21020i2NZFE..NCP90200805-201111

sub16271-21021

main16271-21021i2NZFE..NCP90201111

main16271-37010i1ZRFE..ZSP91..4FC200811-201201

STAMPING MODEL = 4ZR

9011906861

main90119-06861

9012606013

main90126-06013

9155180635

main91551-80635

9415180600

main94151-80600

7 parts on this diagram · 2 diagrams in section
