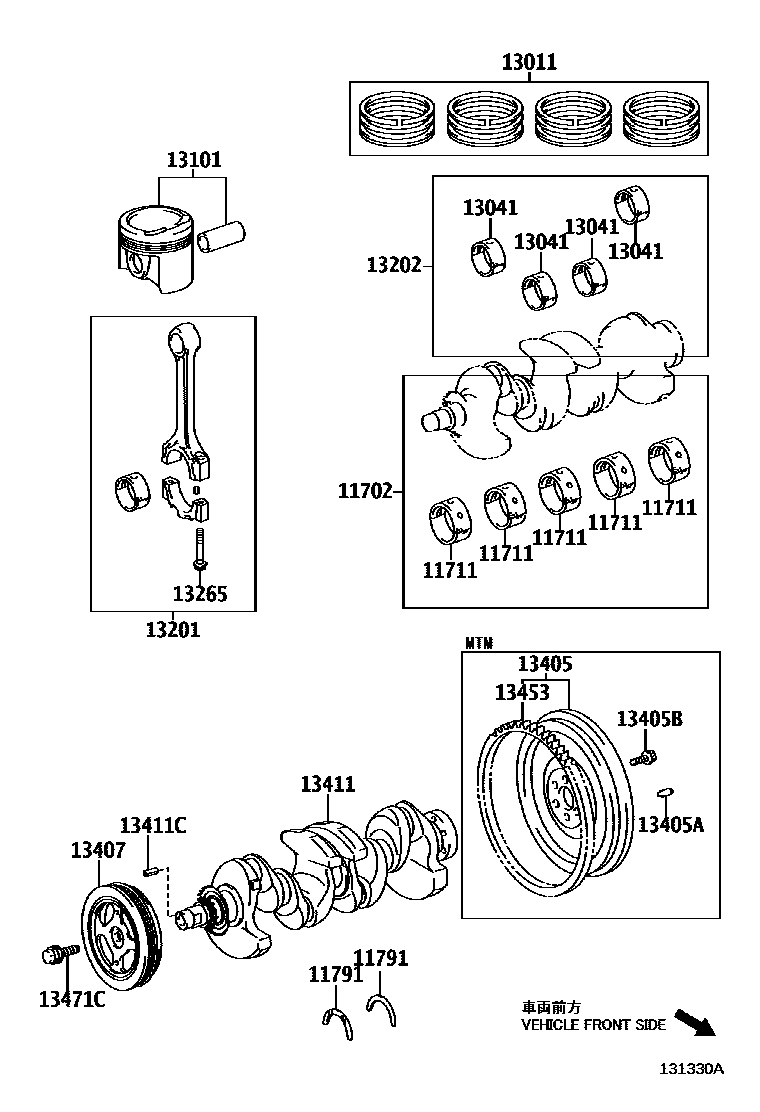

CRANKSHAFT & PISTON
11702BEARING SET, CRANKSHAFT
11711BEARING, CRANKSHAFT
STAMPING MODEL = 4ZR,MARK1,(L):REFER R/M
sub11701-0T031
STAMPING MODEL = 4ZR,MARK2,(L):REFER R/M
sub11701-0T031
STAMPING MODEL = 4ZR,MARK3,(L):REFER R/M
sub11701-0T031
STAMPING MODEL = 4ZR,MARK4,(L):REFER R/M
sub11701-0T031
STAMPING MODEL = 4ZR,MARK1,REFER REPAIR MANUAL
MARK1,REFER REPAIR MANUAL
STAMPING MODEL = 4ZR,MARK2,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
STAMPING MODEL = 4ZR,MARK3,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
STAMPING MODEL = 4ZR,MARK4,REFER REPAIR MANUAL
11791WASHER, CRANKSHAFT THRUST, UPPER
STD,STAMPING MODEL = 4ZR,(L)
STD,(L)
STD,(J)
STD
O/S 0.125
O/S 0.25
13011RING SET, PISTON
STD,(L)
STD,STAMPING MODEL = 4ZR,(L)
STD
STD,(J)
13041BEARING, CONNECTING ROD
MARK1,(L):REFER R/M
STAMPING MODEL = 4ZR,MARK1,(L):REFER R/M
STAMPING MODEL = 4ZR,MARK2,(L):REFER R/M
MARK2,(L):REFER R/M
STAMPING MODEL = 4ZR,MARK3,(L):REFER R/M
MARK3,(L):REFER R/M
MARK1,(J):REFER R/M
MARK2,(J):REFER R/M
MARK3,(J):REFER R/M
13101PISTON SUB-ASSY, W/PIN
STD,STAMPING MODEL = 4ZR
STD
STD
13201ROD SUB-ASSY, CONNECTING
STAMPING MODEL = 4ZR,(L)
(L)
(J)
13202BEARING SET, CONNECTING ROD
13265BOLT, CONNECTING ROD
13405FLYWHEEL SUB-ASSY
STAMPING MODEL = 4ZR,(L)
(L)
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=18,OD=8
L=18,OD=8,STAMPING MODEL = 4ZR
L=18,OD=8,(J)
L=18,OD=8,STAMPING MODEL = 4ZR,(J)
L=18,OD=8,(L)
13405BBOLT, FLYWHEEL SETTING
STAMPING MODEL = 4ZR
13407DAMPER SUB-ASSY, CRANKSHAFT
13411CRANKSHAFT
13411CPIN, STRAIGHT(FOR CRANKSHAFT)
13453GEAR, FLYWHEEL RING
(L)
STAMPING MODEL = 4ZR,(L)
(J)
13471PULLEY, CRANKSHAFT
STAMPING MODEL = 4ZR
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
(J)
STAMPING MODEL = 4ZR,(J)
18 parts on this diagram · 2 diagrams in section
