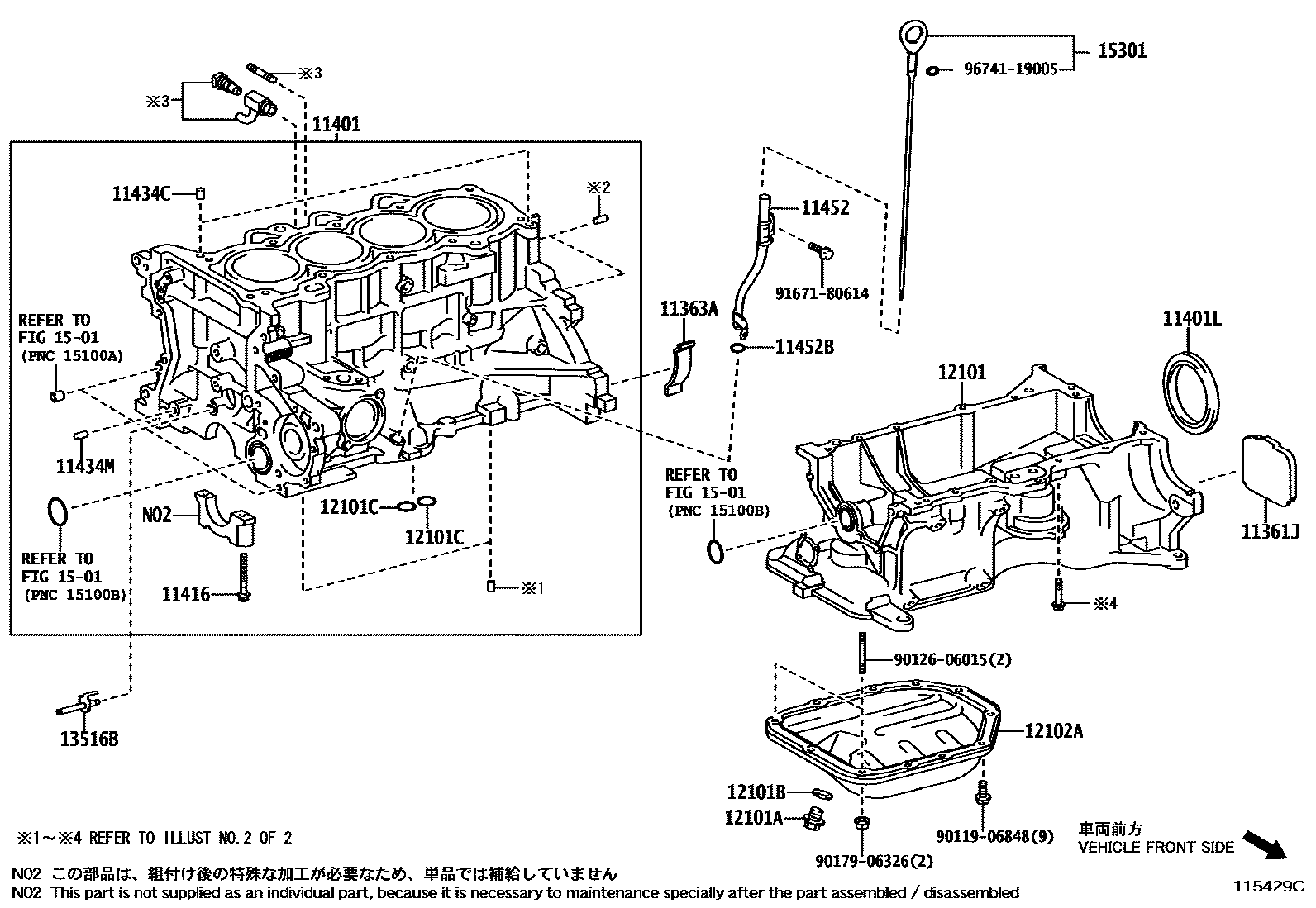

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
11363ACOVER, FLYWHEEL HOUSING SIDE
11401BLOCK SUB-ASSY, CYLINDER
11401LSEAL, ENGINE REAR OIL
(J)
STAMPING MODEL = 4ZR,(J)
(L),NOK
STAMPING MODEL = 4ZR,(L)
(L)
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
STAMPING MODEL = 4ZR
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
L=12,OD=4.0
L=12,OD=4.0,STAMPING MODEL = 4ZR
L=12,OD=4.0,STAMPING MODEL = 4ZR,(J)
L=12,OD=4.0,(J)
L=18,OD=8
L=12,OD=4.0,(L)
11434MPIN, STRAIGHT(FOR CHAIN TENSIONER)
STAMPING MODEL = 4ZR
(J)
STAMPING MODEL = 4ZR,(J)
(L)
11452GUIDE, OIL LEVEL GAGE
STAMPING MODEL = 4ZR
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
STAMPING MODEL = 4ZR,(L)
(L)
(J)
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
STAMPING MODEL = 4ZR
12101BGASKET(FOR OIL PAN DRAIN PLUG)
STAMPING MODEL = 4ZR
(J)
STAMPING MODEL = 4ZR,(J)
(L)
12101CRING, O(FOR OIL PAN)
12102APAN SUB-ASSY, OIL, NO.2
STAMPING MODEL = 4ZR,(L)
(L)
(J)
13516BJET, OIL
1501
15301GAGE SUB-ASSY, OIL LEVEL
STAMPING MODEL = 4ZR
STAMPING MODEL = 4ZR
9011906848
9012606015
9017906326
9167180614
9674119005
22 parts on this diagram · 4 diagrams in section
