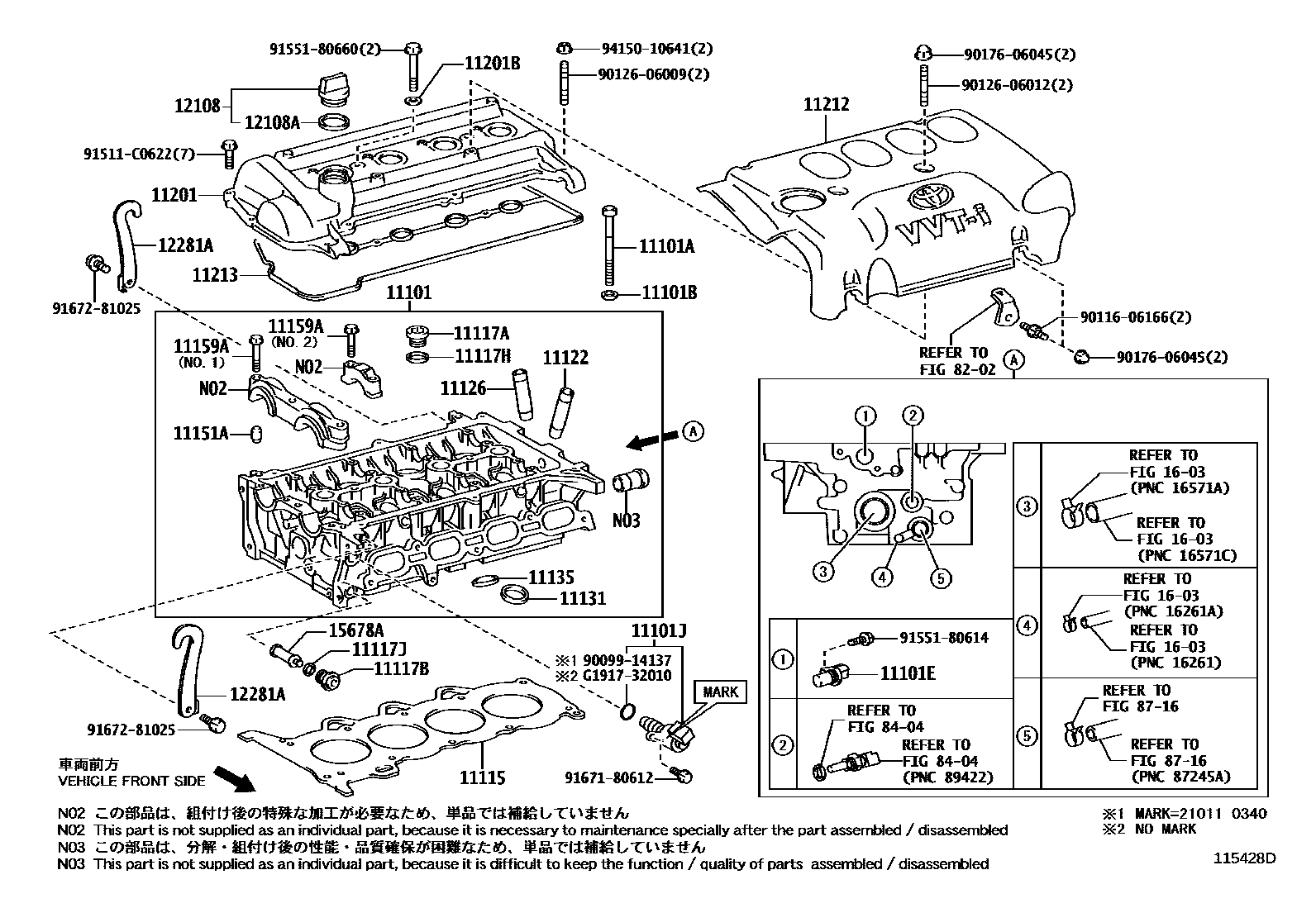

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
STAMPING MODEL = 4ZR
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
STAMPING MODEL = 4ZR
11101ESENSOR, CAM POSITION
STAMPING MODEL = 4ZR
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
(L),NO.1
STAMPING MODEL = 4ZR,(L),NO.1
(L),NO.2
(J),NO.1
(J),NO.2
11117APLUG, W/HEAD TAPER SCREW, NO.1
11117BPLUG, W/HEAD TAPER SCREW, NO.2
STAMPING MODEL = 4ZR
11117HGASKET(FOR WATER HOLE)
STAMPING MODEL = 4ZR
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
11122BUSH, INTAKE VALVE GUIDE
STD
STD,STAMPING MODEL = 4ZR
STD
O/S 0.05
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
STD
STD,STAMPING MODEL = 4ZR
O/S 0.05
11131SEAT, INTAKE VALVE
STD
STD,STAMPING MODEL = 4ZR
O/S 0.03
O/S 0.03,STAMPING MODEL = 4ZR
11135SEAT, EXHAUST VALVE
STD
STD,STAMPING MODEL = 4ZR
STD,(J)
STD,STAMPING MODEL = 4ZR,(J)
O/S 0.03
O/S 0.03
O/S 0.03
O/S 0.03,STAMPING MODEL = 4ZR
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=14,OD=6
L=12.5,OD=8,STAMPING MODEL = 4ZR,(J)
L=12.5,OD=8,(J)
L=12.5,OD=8,(L)
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
NO.2
NO.1
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
(J),T/P A:REF.ILLUST
STAMPING MODEL = 4ZR,(J),T/P A:REF.ILLUST
(L),T/P A:REF.ILLUST
11213GASKET, CYLINDER HEAD COVER
(L)
STAMPING MODEL = 4ZR,(L)
12108CAP SUB-ASSY, OIL FILLER
STAMPING MODEL = 4ZR,(L)
(L)
(J)
12108AGASKET(FOR OIL FILLER CAP)
STAMPING MODEL = 4ZR
12281AHANGER, ENGINE, NO.1
STAMPING MODEL = 4ZR
W/O(PAINTED)
STAMPING MODEL = 4ZR,W/O(PAINTED)
15678AFILTER, OIL CONTROL VALVE
STAMPING MODEL = 4ZR
1603
8202
8404
8716
9009914137
main90099-14137
9011606166
main90116-06166
9012606009
main90126-06009
9012606012
main90126-06012
9017606045
main90176-06045
91511C0622
main91511-C0622
9155180614
main91551-80614
9155180660
main91551-80660
9167180612
main91671-80612
9167281025
main91672-81025
9415010641
main94150-10641
G191732010
mainG1917-32010
40 parts on this diagram · 3 diagrams in section
