ENGINE OVERHAUL GASKET KIT

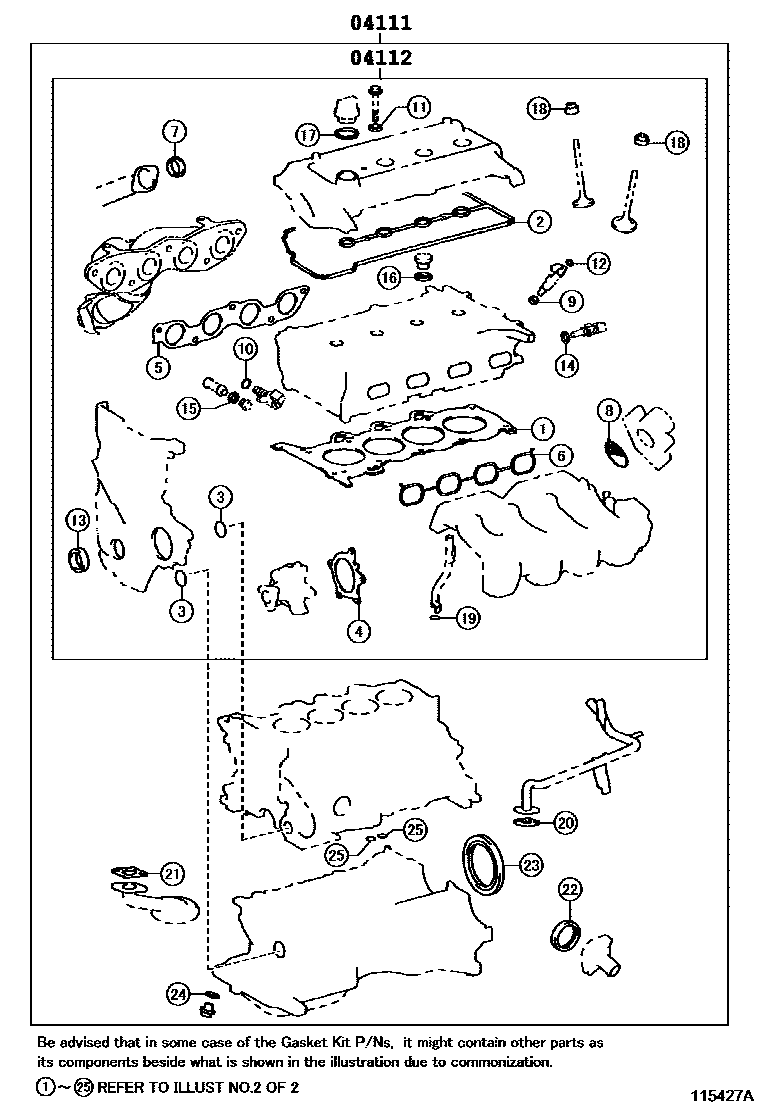

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-0T041i200811-200905
sub04111-0T042
main04111-0T042i200905-201110
sub04111-0T043
main04111-0T043i201110
main04111-21231i200805-200811
sub04111-21232
main04111-21232i200811-201011
sub04111-21233
main04111-21233i201011-201107
sub04111-21234
main04111-21234i201107-201110
sub04111-21235
main04111-21235i201110-201111
sub04111-21236
main04111-21236i201111-201201
sub04111-21237
main04111-21237i201201-201204
sub04111-21238
main04111-21238i201204-201302
sub04111-21239
main04111-21239i201302-201308
sub04111-21370
04112GASKET KIT, ENGINE VALVE GRIND
main04112-0T041i200811-200905
sub04112-0T042
main04112-0T042i200905-201110
sub04112-0T043
main04112-0T043i201110
main04112-21231i200805-201011
sub04112-21232
main04112-21232i201011-201107
sub04112-21233
main04112-21233i201107-201110
sub04112-21234
main04112-21234i201110-201111
sub04112-21235
main04112-21235i201111-201204
sub04112-21236
main04112-21236i201204-201302
sub04112-21237
main04112-21237i201302-201308
sub04112-21238

2 parts on this diagram · 4 diagrams in section
