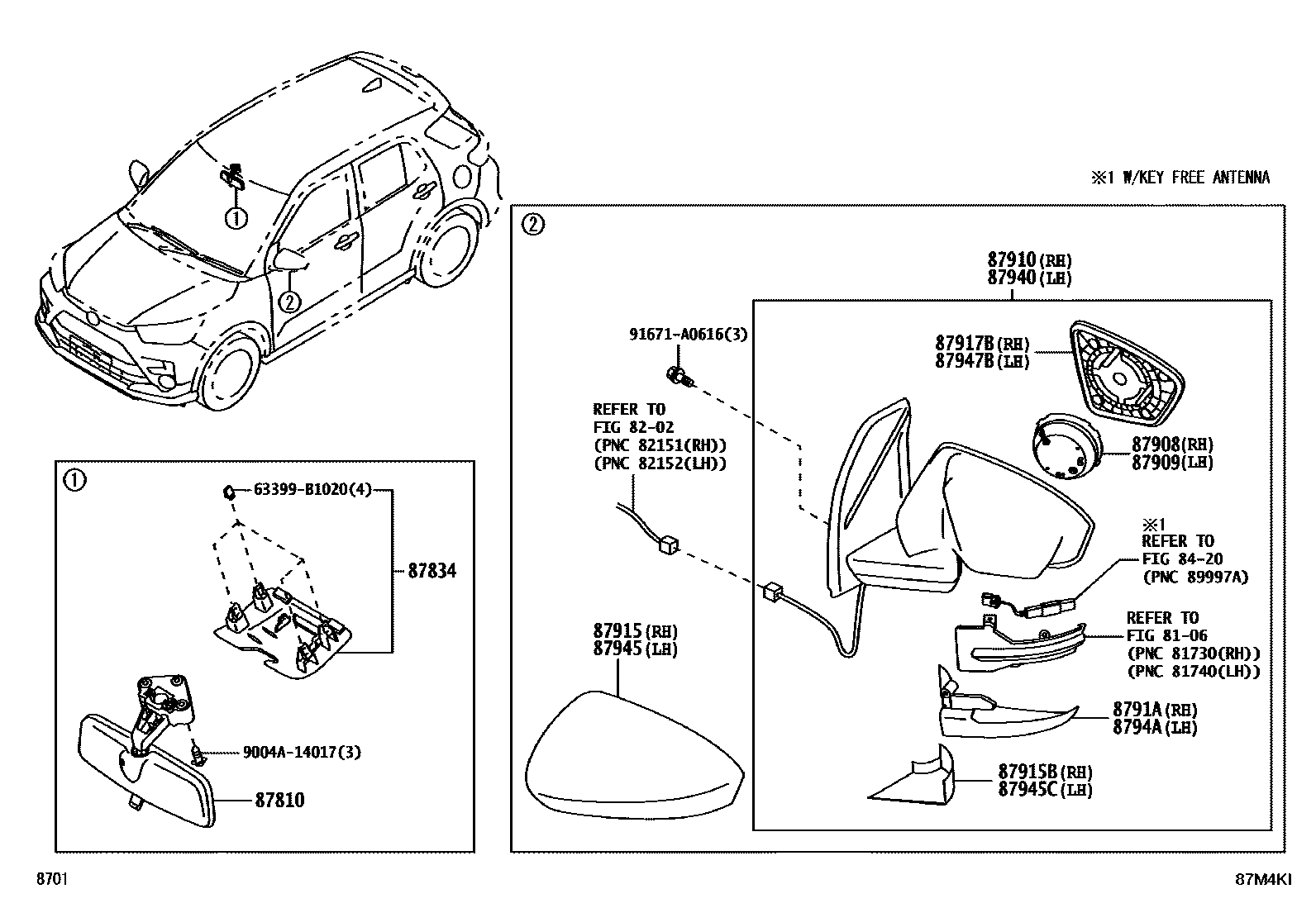

MIRROR
8106
8202
8420
87810MIRROR ASSY, INNER REAR VIEW
BLACK,TRIM2#
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
LT.GRAY,TRIM2#
87908ACTUATOR ASSY, OUTER MIRROR, RH
87909ACTUATOR ASSY, OUTER MIRROR, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,BRUNEI
NO PAINT REQ.,ACTIVE SAFETY PACKAGE-SMART ASSIST(OVERSEAS)
NO PAINT REQ.,LHD ASIA
NO PAINT REQ.
87915COVER, OUTER MIRROR, RH
87915BCOVER, OUTER MIRROR, LOWER RH
main8791B-BZ080iA250..LHD;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608
87917BMIRROR, OUTER REAR VIEW, RH
main87917-BZ180iA251..IDN;A250..GEN,IDN;A251..5F..L..GEN;A251..RHD..CVT..GEN;A251..LHD..(V,X)..(CHL,GEN,PHL)202104-202608
LHD ASIA
ACTIVE SAFETY PACKAGE-SMART ASSIST(OVERSEAS)
BRUNEI
8791ACOVER, OUTER MIRROR, RH NO.2
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PANIT REQ.
NO PANIT REQ.
NO PANIT REQ.
NO PANIT REQ.
NO PANIT REQ.
NO PANIT REQ.
NO PANIT REQ.
NO PANIT REQ.
NO PANIT REQ.,BRUNEI
NO PANIT REQ.,ACTIVE SAFETY PACKAGE-SMART ASSIST(OVERSEAS)
NO PANIT REQ.
NO PANIT REQ.,LHD ASIA
87945COVER, OUTER MIRROR, LH
87945CCOVER, OUTER MIRROR, LOWER LH
main8794B-BZ080iA250..LHD;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608
87947BMIRROR, OUTER REAR VIEW, LH
main87947-BZ180iA251..IDN;A250..GEN,IDN;A251..5F..L..GEN;A251..RHD..CVT..GEN;A251..LHD..(V,X)..(CHL,GEN,PHL)202104-202608
LHD ASIA
ACTIVE SAFETY PACKAGE-SMART ASSIST(OVERSEAS)
BRUNEI
8794ACOVER, OUTER MIRROR, LH NO.2
63399B1020COVER, VISOR HOLDER HOLE
main63399-B1020
9004A14017
main9004A-14017
91671A0616
main91671-A0616
20 parts on this diagram · 1 diagram in section
