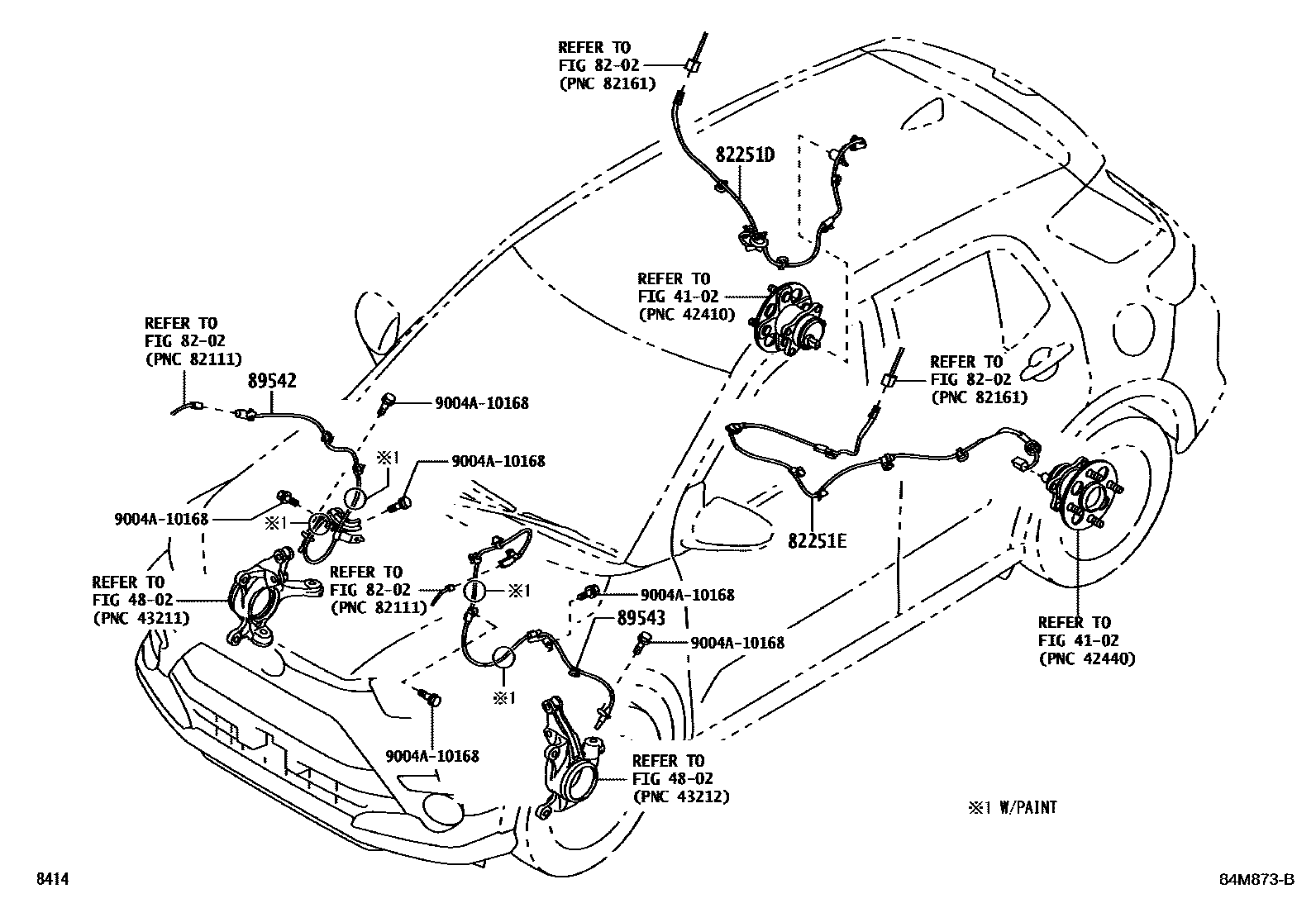

ABS & VSC

4102

4802

8202

82251DWIRE, SPEED SENSOR, RH

main82251-BZ150iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

82251EWIRE, SPEED SENSOR, LH

main82251-BZ160iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

89542SENSOR, SPEED, FRONT RH

main89542-BZ160iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

PAINTED=RED

main89542-BZ240iA25#202302-202310

PAINTED=BULE

89543SENSOR, SPEED, FRONT LH

main89543-BZ110iA25#202104-202608

PAINTED=YELLOW GREEN

main89543-BZ240iA25#202302-202310

PAINTED=YELLOW

9004A10168

main9004A-10168

8 parts on this diagram · 1 diagram in section
