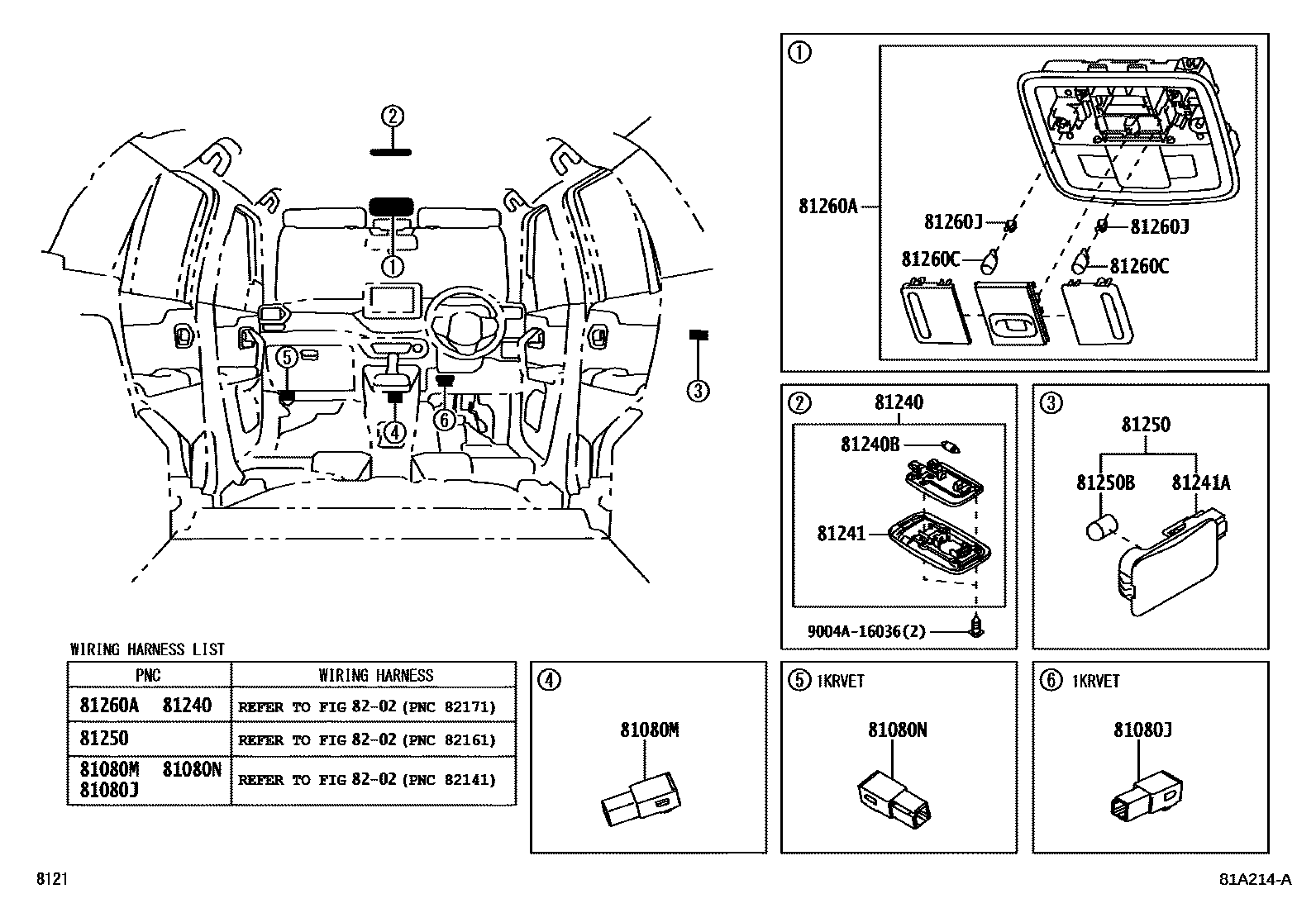

INTERIOR LAMP

0001 1 0002 1 0003 1 0004 1

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-33290iA251..V;A250..V..GCC;A250..GEN,IDN,PHL¥920202104-202608

81080MLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-B1050iA25#¥710202104-202305

sub81080-B1051¥710

main81080-B1051iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)¥710202306-202608

81080NLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-33290iA251..V;A250..V..GCC;A250..GEN,IDN,PHL¥920202104-202608

81240LAMP ASSY, ROOM, NO.1

main81240-BZ010-B0iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

LT.GRAY,TRIM2#

81240BBULB, ROOM LAMP, NO.1

main90049-51153iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)¥180202104-202608

12V 8W

81241LENS, ROOM LAMP, NO.1

main81241-BZ010iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

81241ALENS, ROOM LAMP, NO.2

main81241-BZ080iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

81250LAMP ASSY, ROOM, NO.2

main81240-BZ120iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

81250BBULB, ROOM LAMP, NO.2

main84999-BZ140iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

12V 5W

81260ALAMP ASSY, MAP

main81260-BZ050-B0iA250..IDN,PHL;A251..CHL,IDN202104-202608

LT.GRAY,TRIM2#

main81260-BZ110-B0iA250..GEN;A251..GEN,PHL202108-202607

LT.GRAY,TRIM2#

main81260-BZ120-B0iA25#..GCC202110-202608

LT.GRAY,TRIM2#

81260CBULB(FOR MAP LAMP)

main90981-11013iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)¥110202104-202608

12V 5W T10

sub99132-12050¥110

81260JSOCKET, BULB(FOR MAP LAMP)

main83101-87705iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)¥130202104-202608

8202

9004A16036

main9004A-16036¥110

14 parts on this diagram · 4 diagrams in section
