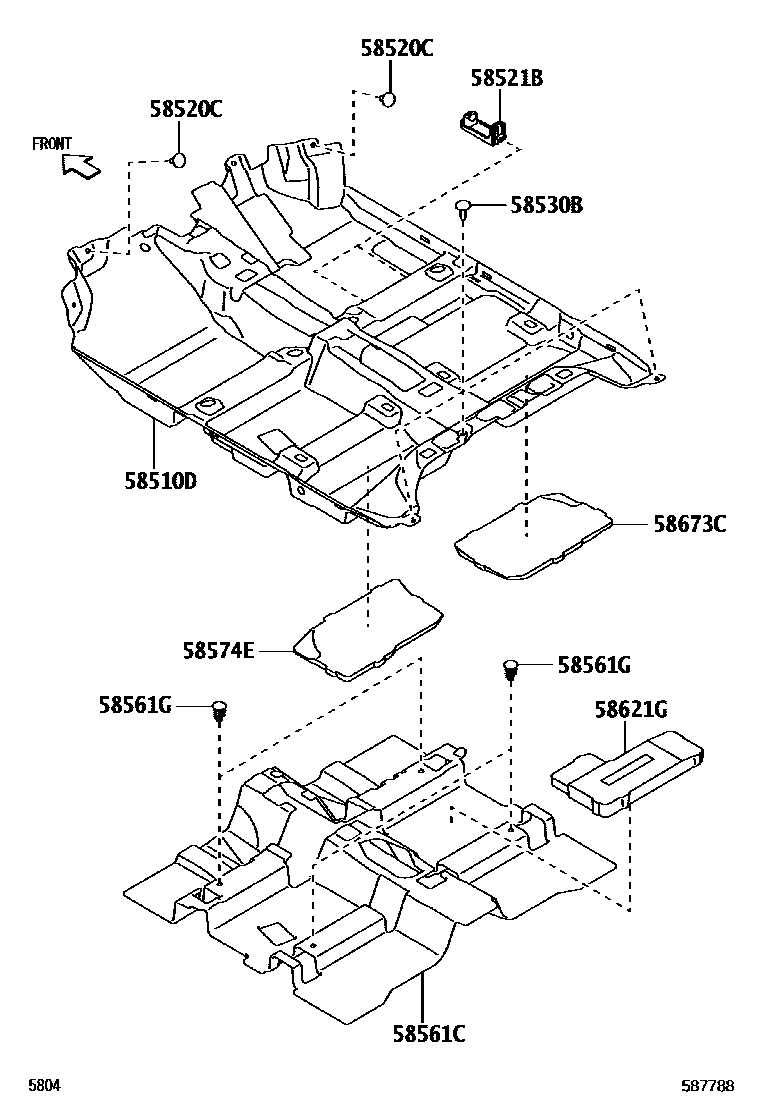

MAT & CARPET

0001 1FLOOR CARPET 0002 1FLOOR CARPET 0003 1FLOOR MAT 0004 1FLOOR MAT

58510DCARPET ASSY, FLOOR, FRONT

main58510-BY410-B0iA25#..CVT..IDN202104-202606

DK.GRAY,TRIM2#

main58510-BY420-B0iA25#..5F..IDN202104-202606

DK.GRAY,TRIM2#

main58510-BZL20-B0iA25#..RHD..CVT..GEN202108-202607

DK.GRAY,TRIM2#

main58510-BZM60-B0iA25#..RHD..5F..GEN202108-202607

DK.GRAY,TRIM2#

main58510-BZR80-B0iA251..LHD..5F;A250..LHD..(GEN,PHL);A251..LHD..CVT..(V,X)..(CHL,GEN,PHL)202108-202608

DK.GRAY,TRIM2#

main58510-BZS40-B0iA25#..GCC202110-202608

DK.GRAY,TRIM2#

58520CCLIP(FOR FRONT FLOOR CARPET)

main9004A-46131-C1iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

BLACK

58521BHOOK, FLOOR CARPET

main58522-52030iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)¥380202104-202608

58530BCLIP(FOR FRONT FLOOR CARPET)

main90044-68046-C2iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

BLACK

sub90044-68046¥200

58561CSILENCER, FRONT FLOOR, NO.1

main58563-BZ060iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

58561GCLIP(FOR FRONT FLOOR SILENCER)

main90044-67298-B0iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

LT.GRAY

58574EPAD, REAR FLOOR SILENCER, NO.1

main58677-BZ050iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

58621GPAD, FRONT FLOOR SILENCER, RH

main58621-BZ130iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

58673CPAD, REAR FLOOR SILENCER, NO.1

main58676-BZ050iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

9 parts on this diagram · 4 diagrams in section
