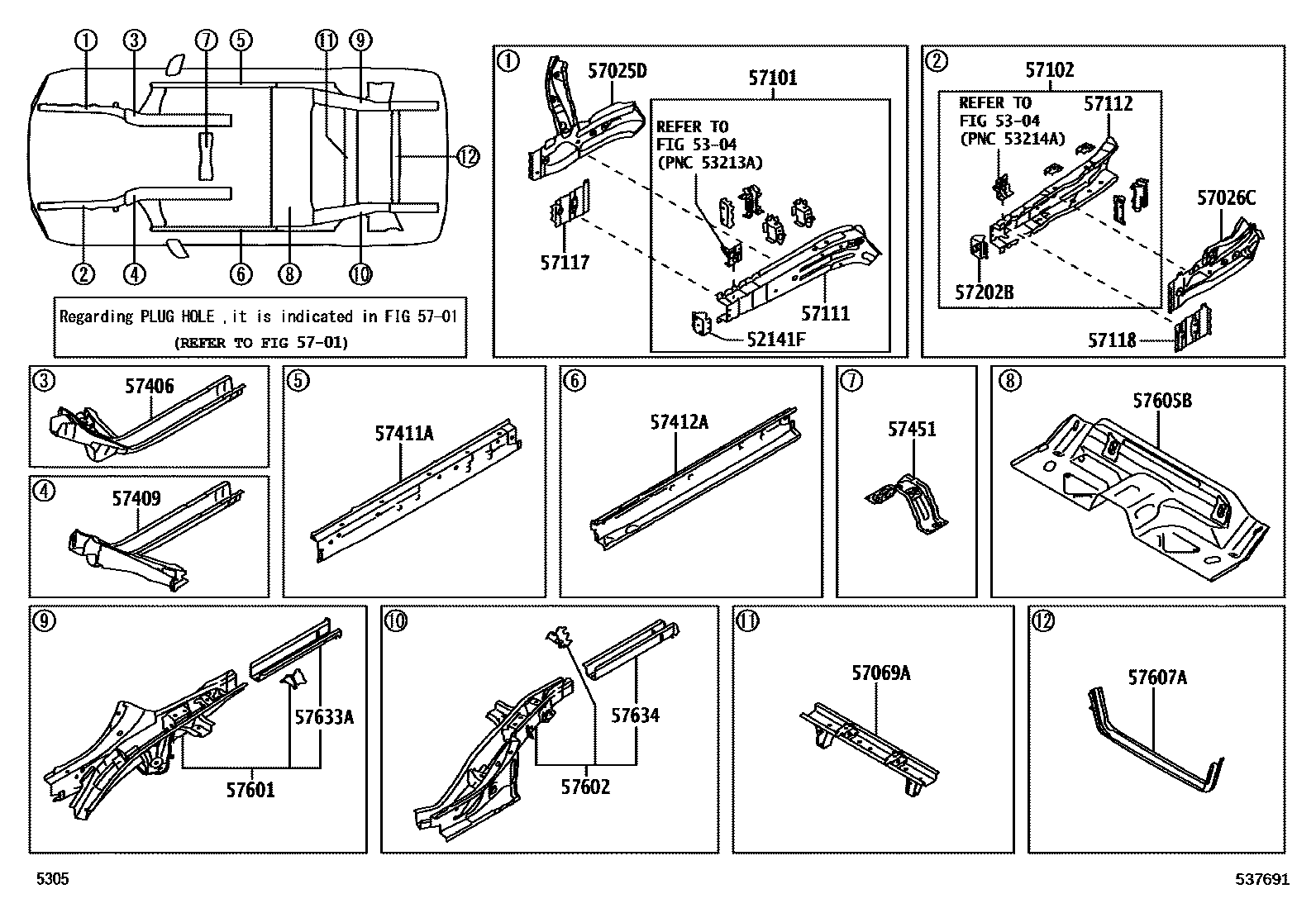

FLOOR SIDE MEMBER

52141FARM, FRONT BUMPER, RH

main52141-BZ100iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

5304

5701

57025DMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-BZ030iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

57026CMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-BZ030iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

57069AMEMBER, REAR FLOOR, CENTER

main57069-BZ150iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-BZ670iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-BZ750iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

57111MEMBER, FRONT SIDE, RH

main57111-BZ270iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

57112MEMBER, FRONT SIDE, LH

main57112-BZ210iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

57117PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH

main57117-BZ070iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

57118PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH

main57118-BZ070iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

57202BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH

main53078-BZ110iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

57406MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57406-BZ260iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

main57406-BZ290iA250..LHD..GEN202108-202607

MEXICO

57409MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57409-BZ230iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

main57409-BZ260iA250..LHD..GEN202108-202607

MEXICO

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-BZ430iA250..IDN;A251..RHD202104-202607

main57401-BZ440iA250..RHD..GEN202108-202607

main57401-BZ450iA251..V..CHL;A250..LHD..(GEN,PHL)202108-202608

main57411-BZ330iA250..GCC;A251..LHD..5F;A251..CVT..(GCC,PHL);A251..LHD..CVT..X..(CHL,GEN)202108-202608

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-BZ440iA250..RHD..GEN202108-202607

main57402-BZ450iA250..GCC;A251..LHD..5F;A251..CVT..(GCC,PHL);A251..LHD..CVT..X..(CHL,GEN)202108-202608

main57402-BZ460iA251..V..CHL;A250..LHD..(GEN,PHL)202108-202608

main57412-BZ320iA250..IDN;A251..RHD202104-202607

57451MEMBER, FRONT FLOOR CROSS

main57451-BZ210iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-BZ540iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-BZ520iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-BZ220iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-BZ080supersedes 57607-BZ110iA251..5F;A250..RHD;A251..L..GCC;A250..GCC,PHL;A251..CVT..(V,X)202104-202608

57633AEXTENSION, REAR FLOOR SIDE MEMBER, REAR RH

main57633-BZ070iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

57634EXTENSION, REAR FLOOR SIDE MEMBER, REAR LH

main57634-BZ060iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

24 parts on this diagram · 1 diagram in section
