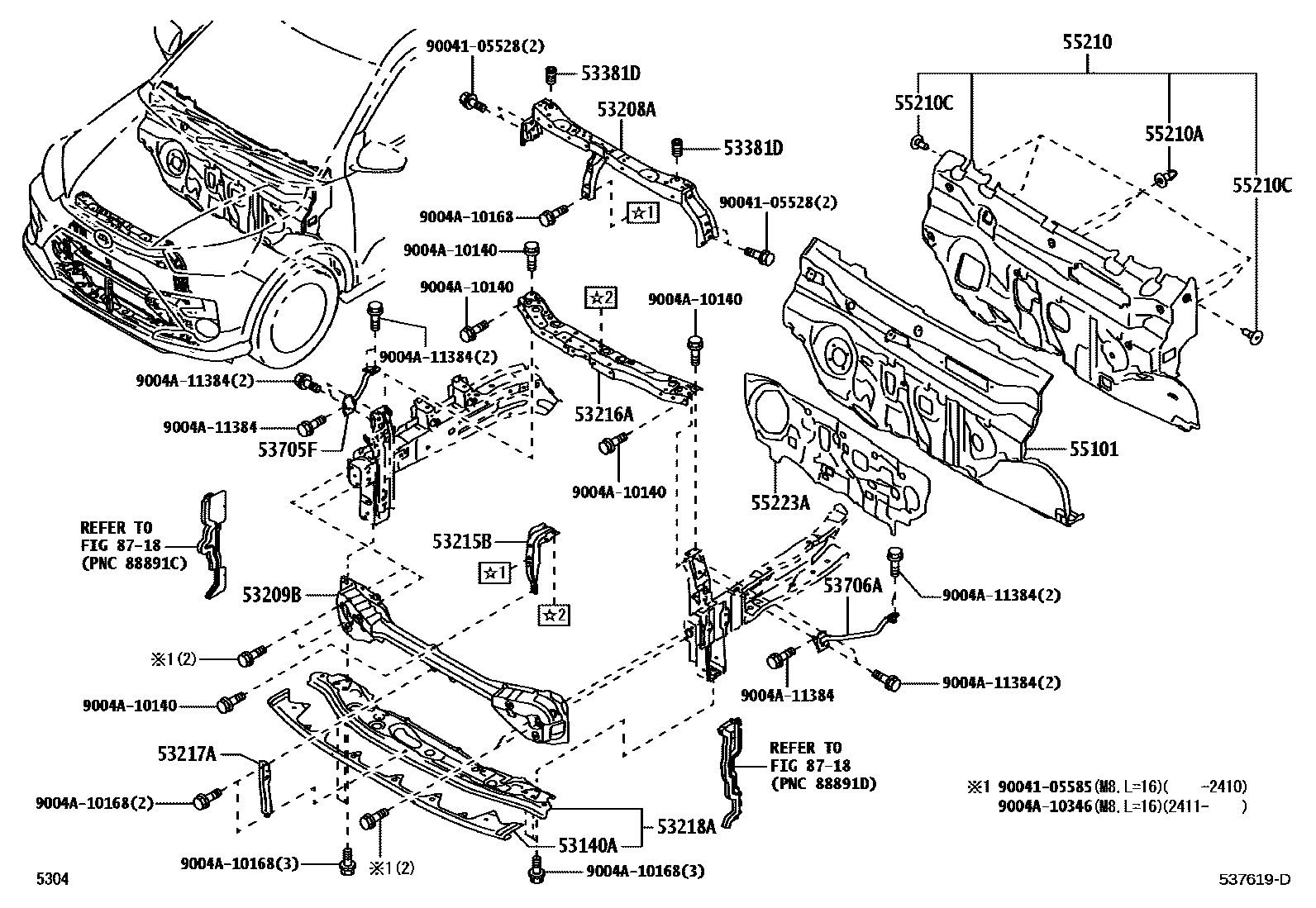

FRONT FENDER APRON & DASH PANEL

0001 1RADIATOR SUPPORT & DASH PANEL0002 1RADIATOR SUPPORT & DASH PANEL0003 1RADIATOR SUPPORT & DASH PANEL0004 1RADIATOR SUPPORT & DASH PANEL0005 1FRONT FENDER APRON

53140ACOVER, RADIATOR

main51451-BZ180iA250..RHD;A250..PHL;A251..RHD..GEN;A251..CHL,IDN,PHL202104-202608

main51451-BZ190iA251..GCC;A251..LHD..5F..GEN;A250..LHD..(GCC,GEN);A251..LHD..CVT..X..GEN202108-202608

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-BZ140iA250..RHD;A250..PHL;A251..RHD..GEN;A251..CHL,IDN,PHL202104-202608

main53208-BZ150iA251..GCC;A251..LHD..5F..GEN;A250..LHD..(GCC,GEN);A251..LHD..CVT..X..GEN202108-202608

53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT

main53209-BZ040iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

53215BSUPPORT, HOOD LOCK

main53215-BZ250iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

53216ASUPPORT, RADIATOR, UPPER

main53216-BZ290iA250..RHD;A250..PHL;A251..RHD..GEN;A251..CHL,IDN,PHL202104-202608

main53216-BZ300iA251..GCC;A251..LHD..5F..GEN;A250..LHD..(GCC,GEN);A251..LHD..CVT..X..GEN202108-202608

53217ABRACE, HOOD LOCK SUPPORT

main53217-BZ010iA251..5F;A250..GEN,IDN,PHL;A251..CVT..(V,X)..(CHL,GEN,IDN,PHL)202104-202608

main53217-BZ020iA25#..GCC202110-202608

53218ASUPPORT, RADIATOR, LOWER

main53028-BZ220iA251..GCC;A251..LHD..5F..GEN;A250..LHD..(GCC,GEN);A251..LHD..CVT..X..GEN202108-202608

main53028-BZ380iA250..RHD;A250..PHL;A251..RHD..GEN;A251..CHL,IDN,PHL202104-202608

53381DBUMPER, HOOD TO FRONT SHROUD

main53381-BZ050iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

53705FBRACE SUB-ASSY, FENDER APRON, RH

main53705-BZ090iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

53706ABRACE SUB-ASSY, FENDER APRON, LH

main53706-BZ070iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

55101PANEL SUB-ASSY, DASH

main55101-BZN60iA25#..RHD..CVT..GEN202108-202607

main55101-BZN70iA25#..RHD..5F..GEN202108-202607

main55101-BZN80iA250..LHD..CVT;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

main55101-BZN90iA25#..LHD..5F202108-202608

main55101-BZP50iA25#..CVT..IDN202104-202606

main55101-BZP70iA25#..5F..IDN202104-202606

55210INSULATOR ASSY, DASH PANEL

main55210-BZ590iA25#..RHD202104-202607

main55210-BZ600iA250..LHD;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

55210ACLIP

main90467-11122iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)¥100202104-202608

55210CCLIP

main90467-13079iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)¥120202104-202608

55223AINSULATOR, DASH PANEL, OUTER

main55223-BZ160iA25#..RHD202104-202607

main55223-BZ180iA250..LHD;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

8718

9004105528

main90041-05528¥110

9004105585

main90041-05585¥150

9004A10140

main9004A-10140

9004A10168

main9004A-10168

9004A10346

main9004A-10346

9004A11384

main9004A-11384

22 parts on this diagram · 5 diagrams in section
