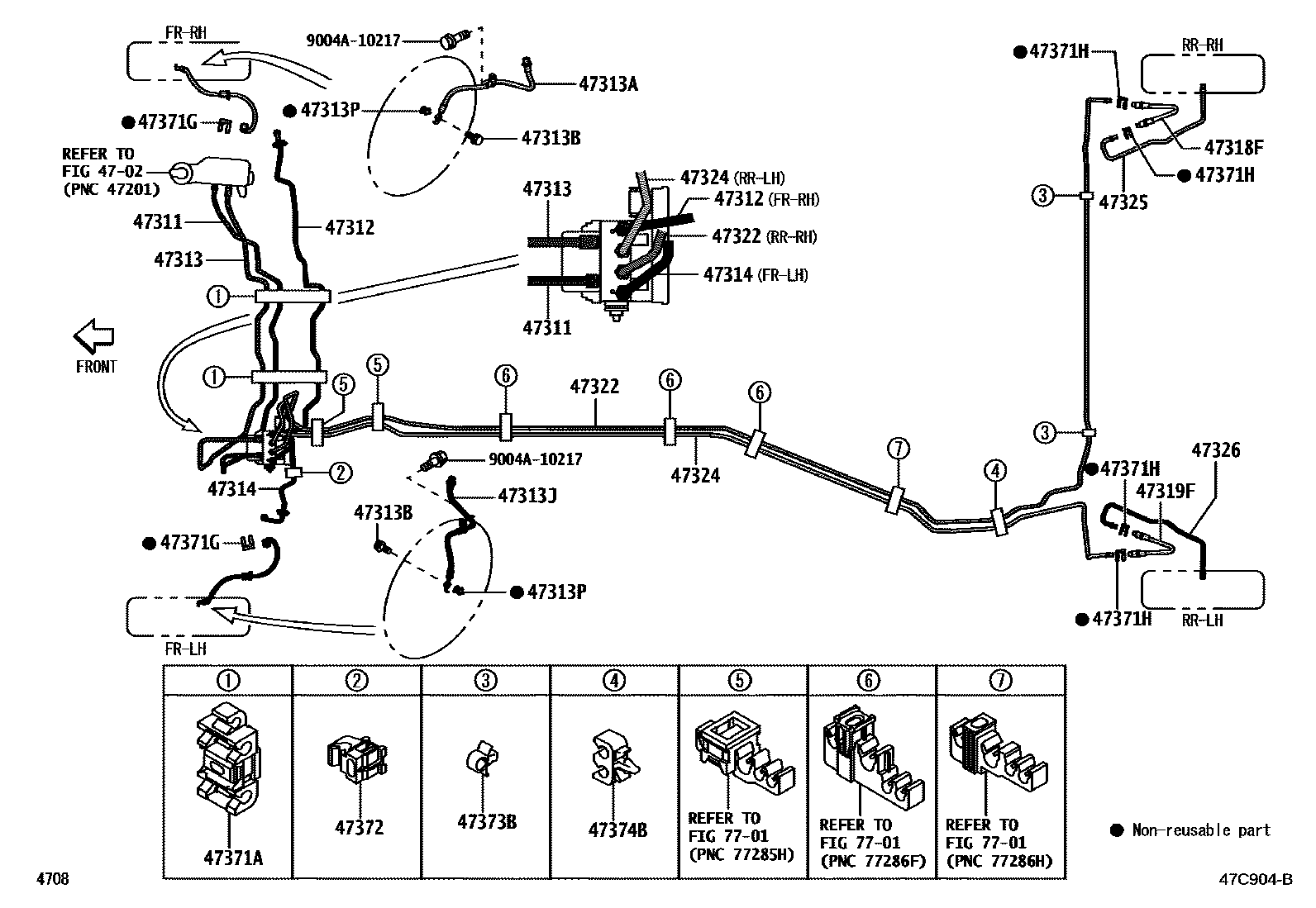

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1ACTUATOR 0004 1ACTUATOR

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-BZ670iA25#..RHD202104-202607

main47311-BZ690iA250..LHD;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

47312TUBE, FRONT BRAKE, NO.2

main47312-BZ690iA25#..RHD202104-202607

main47312-BZ700iA250..LHD;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

47313TUBE, FRONT BRAKE, NO.3

main47313-BZ630iA25#..RHD202104-202607

main47313-BZ650iA250..LHD;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main9004A-94114iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main9004A-94114iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

47314TUBE, FRONT BRAKE, NO.4

main47314-BZ660iA25#..RHD202104-202607

main47314-BZ670iA250..LHD;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

47318FHOSE, FLEXIBLE(FOR REAR RH)

main9004A-94146iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

47319FHOSE, FLEXIBLE(FOR REAR LH)

main9004A-94146iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

47322TUBE, REAR BRAKE, NO.2

main47322-BZ430iA25#..RHD202104-202607

main47322-BZ440iA250..LHD;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

47324TUBE, REAR BRAKE, NO.4

main47324-BZ490iA25#..RHD202104-202607

main47324-BZ500iA250..LHD;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

47325TUBE, REAR BRAKE, NO.5

main47325-BZ210iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

47326TUBE, REAR BRAKE, NO.6

main47326-BZ240iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

47371ACLAMP, BRAKE TUBE, NO.1

main47371-B2080×2iA25#..RHD202104-202310

main47371-BZ300×2iA25#..RHD202311-202607

47371GCLAMP, BRAKE TUBE, NO.11

main90044-65441×2iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

47371HCLAMP, BRAKE TUBE, NO.12

main90044-65441×4iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

47372CLAMP, BRAKE TUBE, NO.2

main47372-B2040iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

47373BCLAMP, BRAKE TUBE, NO.3

main90044-64918×2iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

47374BCLAMP, BRAKE TUBE, NO.4

main90044-64891iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608
