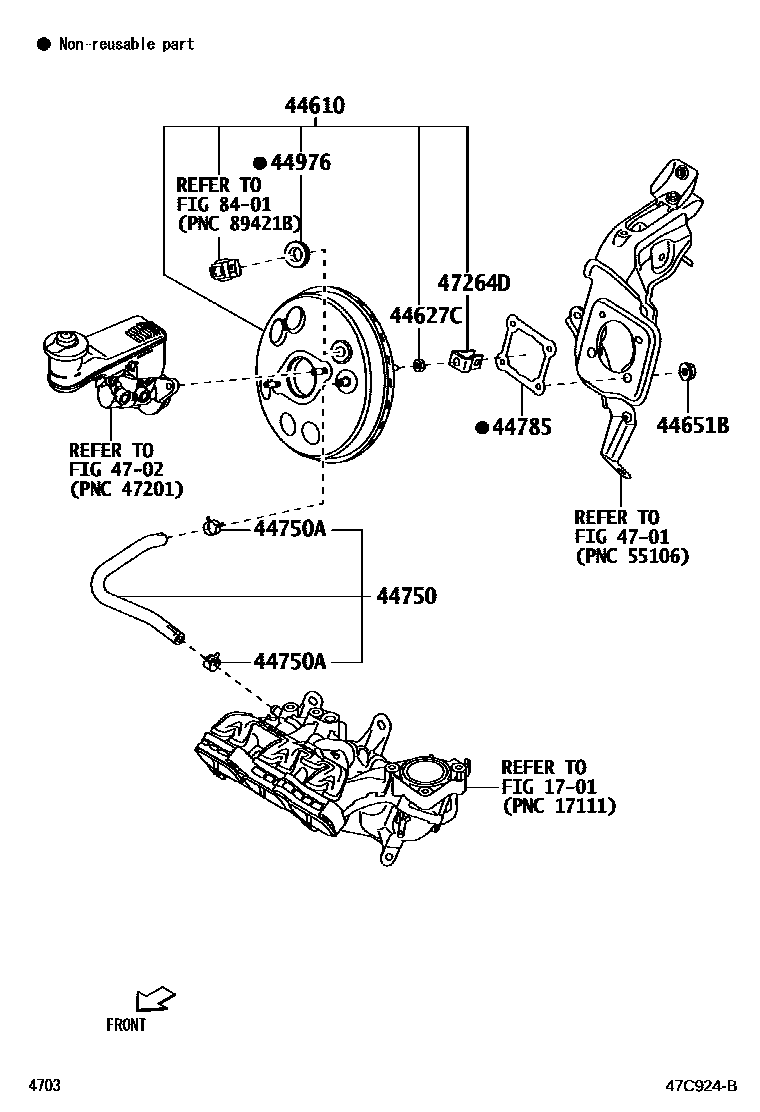

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1L/EJECTOR 0003 1W/EJECTOR

1701

44610BOOSTER ASSY, BRAKE

main44610-BZ820iA25#..RHD202104-202607

main44610-BZ870iA250..LHD;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

44627CNUT, BOOSTER SLEEVE CYLINDER

main9004A-17229iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

44651BNUT, BOOSTER

main90041-79300iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

44750HOSE ASSY, VACUUM

main44750-BZ360iA25#..RHD202104-202607

main44750-BZ380iA251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

main44750-BZ390iA250..LHD202108-202608

44750ACLIP(FOR VACUUM HOSE ASSY)

main90044-67161iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

44785GASKET, BRAKE BOOSTER

main47275-BZ010iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

sub47278-87703

44976SEAL, BOOSTER

main44685-B2010iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

4701

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-BZ110iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

8401

12 parts on this diagram · 3 diagrams in section
