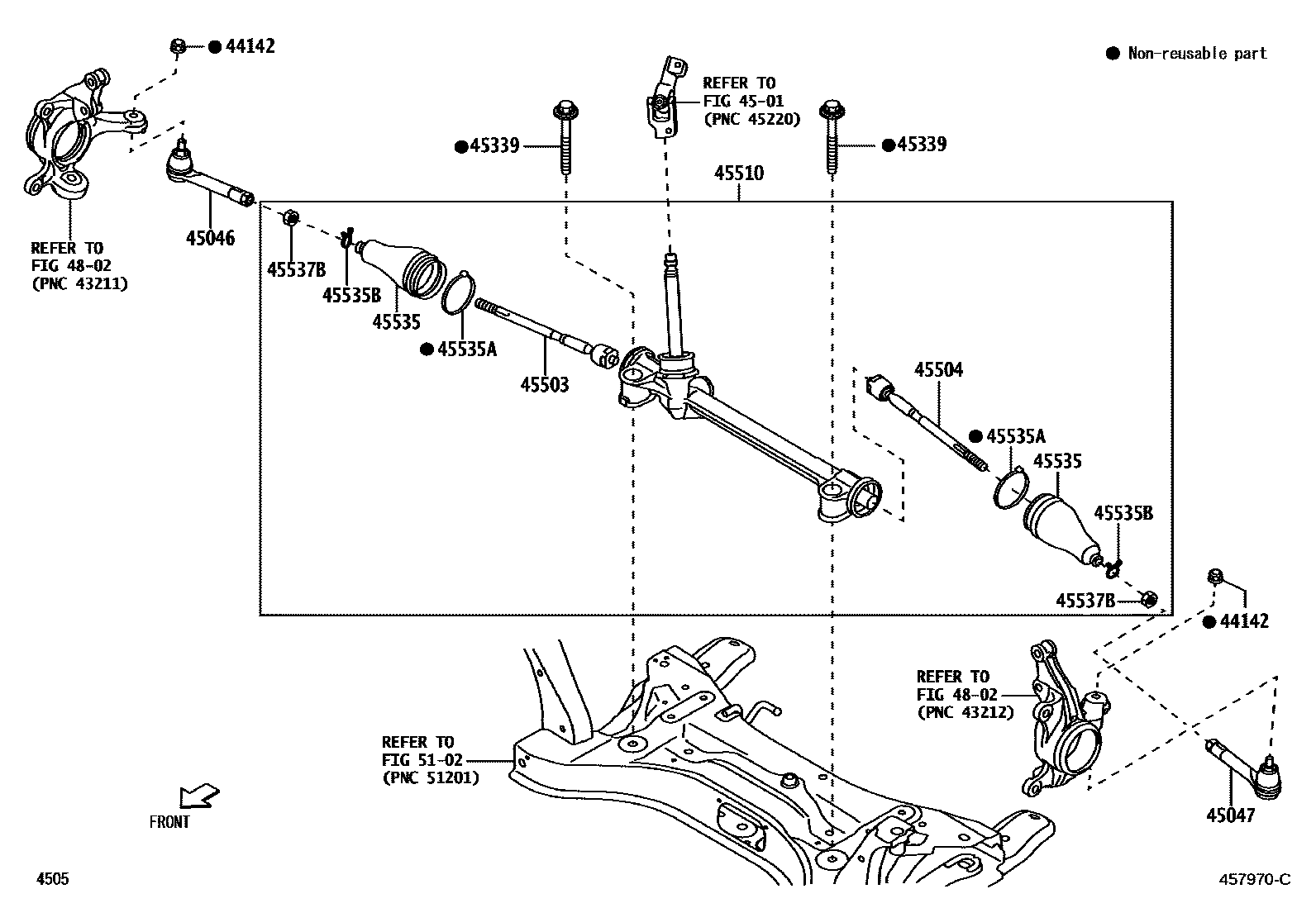

FRONT STEERING GEAR & LINK

0001 1 0002 1

44142NUT, LOCK

main90041-77011×2iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

4501

45046END SUB-ASSY, TIE ROD, RH

main45046-BZ250iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

45047END SUB-ASSY, TIE ROD, LH

main45046-BZ250iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

45339BOLT, STEERING GEAR HOUSING

main90041-19A33×2iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

45503END SUB-ASSY, STEERING RACK

main45503-BZ250iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

RH

45504END SUB-ASSY, STEERING RACK, NO.2

main45503-BZ250iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

LH

45510GEAR ASSY, STEERING

main45502-BZ080iA251..RHD202104-202607

main45502-BZ090iA250..RHD202104-202607

main45502-BZ100iA250..X..GCC;A251..LHD..5F;A251..CVT..(GCC,PHL);A251..LHD..CVT..X..(CHL,GEN)202108-202608

main45502-BZ110iA250..LHD..V;A251..V..CHL202108-202608

45535BOOT, STEERING RACK, NO.1

main45535-BZ190×2iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-BZ060×2iA25#202104-202305

main45538-BZ061×2iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202306-202608

45535BCLIP(FOR STEERING RACK BOOT)

main45537-BZ030×2iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

45537BNUT, RACK END LOCK

main9004A-17228×2iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

4802

5102

14 parts on this diagram · 2 diagrams in section
