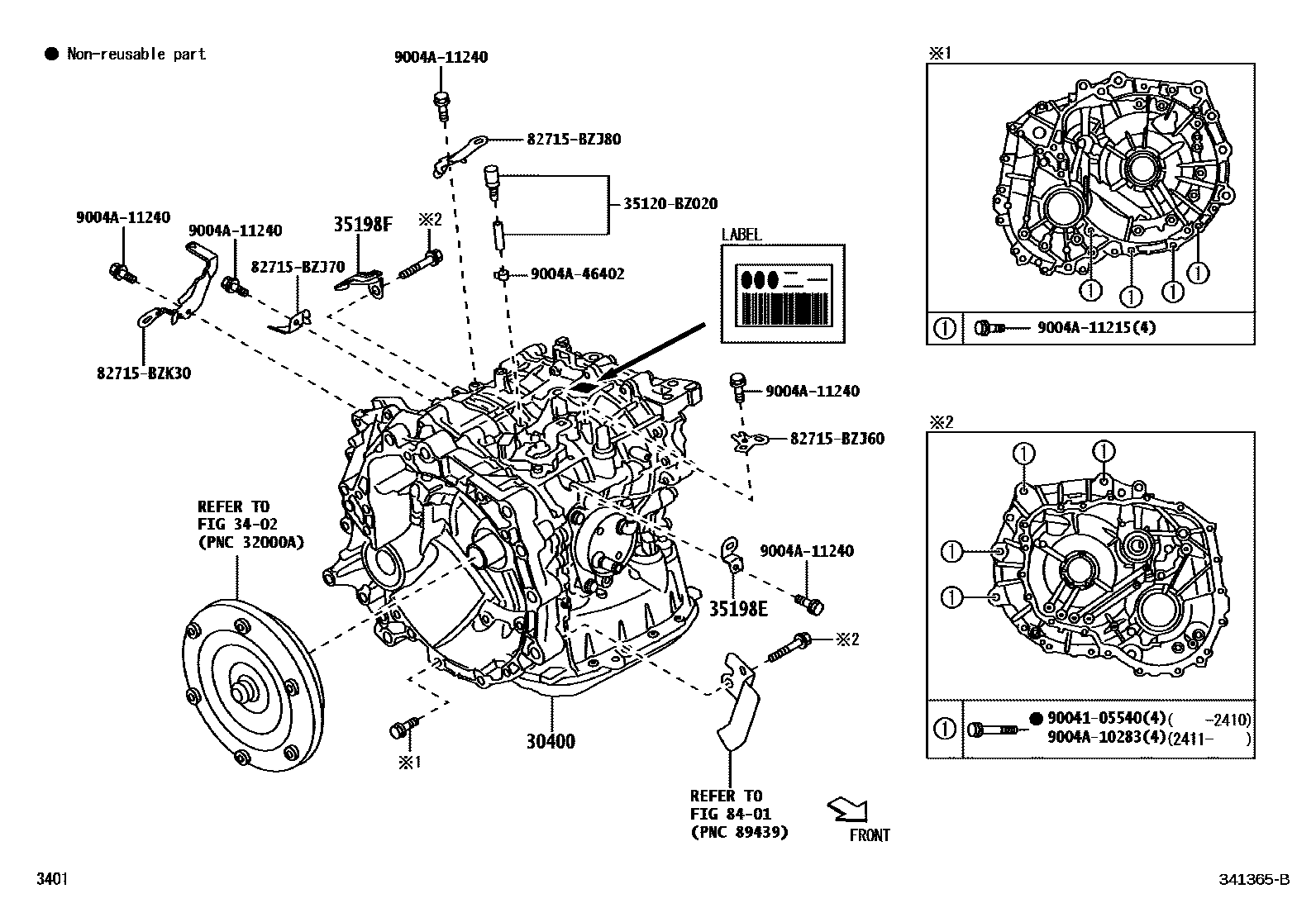

TRANSAXLE ASSY(CVT)

0001 1TRANSAXLE ASSY 0002 1INNER PARTS 0004 1INNER PARTS 0006 1VALVE BODY ASSY 0008 1VALVE BODY ASSY

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-B2A60iA251..CVT202104-202307

UNIT.NO=A21K,A22K

main30400-B2C20iA250..CVT202104-202608

UNIT.NO=A2NK

main30400-BZ060iA251..L..GCC;A251..CVT..(V,X)202211-202608

UNIT.NO=C45

main30400-BZ080iA250..CVT202305-202608

UNIT.NO=C62

3402

35198EBRACKET, WIRE HARNESS CLAMP, NO.1

main82715-BZJ90iA251..L..GCC;A25#..CVT..(V,X)202104-202608

35198FBRACKET, WIRE HARNESS CLAMP

main82715-B2510iA251..L..GCC;A25#..CVT..(V,X)202104-202608

8401

35120BZ020BREATHER ASSY, TRANSMISSION

main35120-BZ020

82715BZJ60BRACKET,WIRING HARNESS CLAMP

main82715-BZJ60

82715BZJ70BRACKET,WIRING HARNESS CLAMP

main82715-BZJ70

82715BZJ80BRACKET,WIRING HARNESS CLAMP

main82715-BZJ80

82715BZK30BRACKET,WIRING HARNESS CLAMP

main82715-BZK30

9004105540

main90041-05540

9004A10283

main9004A-10283

9004A11215

main9004A-11215

9004A11240

main9004A-11240

9004A46402

main9004A-46402

15 parts on this diagram · 5 diagrams in section
