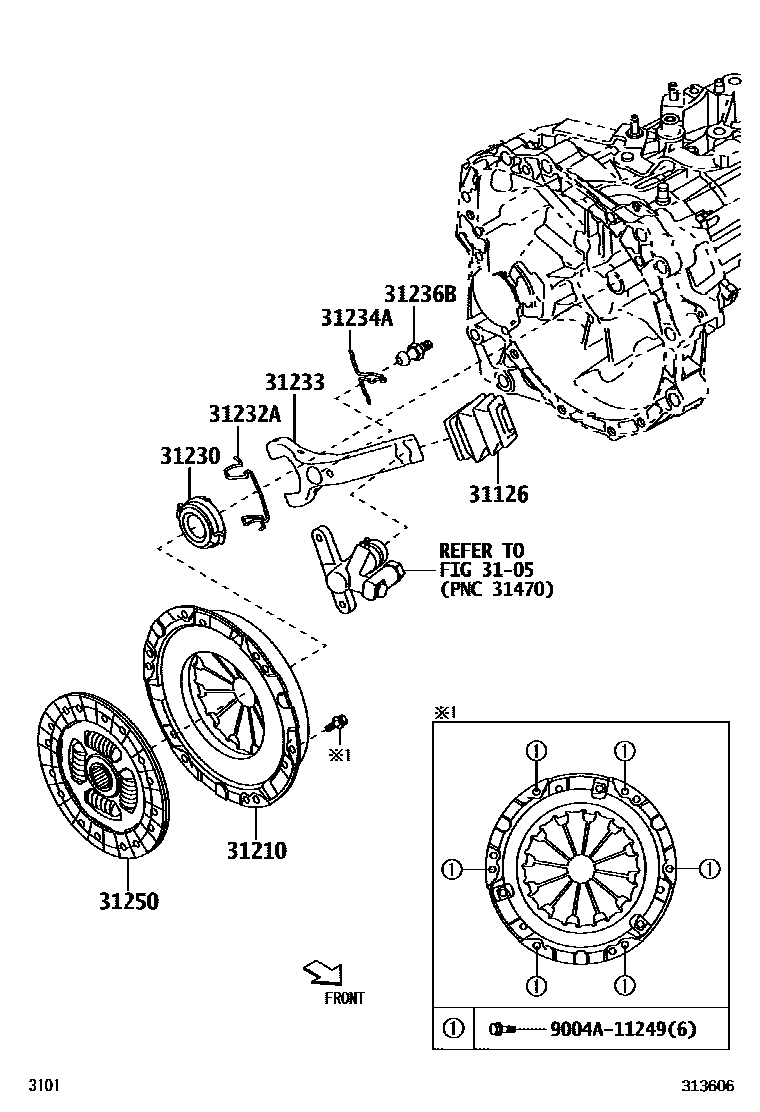

CLUTCH & RELEASE FORK

0001 1 0002 1

3105

31126BOOT, CLUTCH RELEASE FORK

main31126-BZ030iA250..5F202104-202607

31210COVER ASSY, CLUTCH

main31210-BZ260iA251..5F202104-202608

main31210-BZ270iA250..5F202104-202607

31230BEARING ASSY, CLUTCH RELEASE

main31230-BZ070iA25#..5F202104-202608

31232ACLIP, RELEASE BEARING HUB

main31232-BZ050iA251..5F202104-202608

main31232-BZ060iA250..5F202104-202607

31233FORK, CLUTCH RELEASE

main31233-BZ080iA250..5F202104-202607

31234ASPRING, RELEASE FORK SUPPORT

main31234-BZ040iA250..5F202104-202607

31236BSUPPORT, RELEASE FORK

main31236-BZ010iA250..5F202104-202607

31250DISC ASSY, CLUTCH

main31250-BZ310iA251..5F202104-202608

main31250-BZ320iA250..5F202104-202607

9004A11249

main9004A-11249

10 parts on this diagram · 2 diagrams in section
