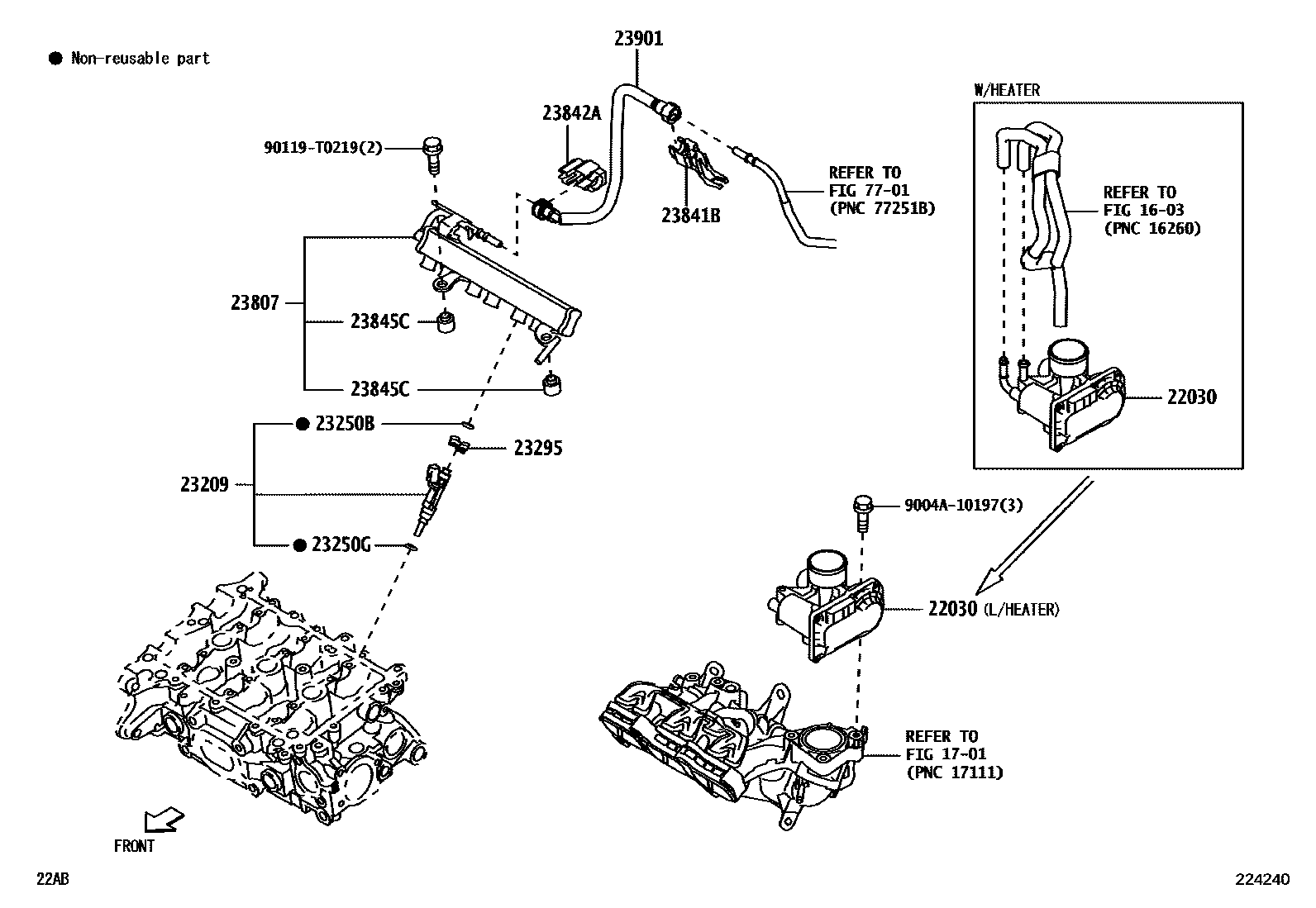

FUEL INJECTION SYSTEM

0001 1 0002 1L/EGR

1603

1701

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-B1050iWAVE..A251..CHL,GCC,GEN202108-202209

sub22030-BZ110

main22030-B1060iWAVE..A251..IDN,PHL202104-202209

sub22030-BZ120

main22030-B6020i1KRVET..A250..IDN,PHL202104-202607

main22030-B6030i1KRVET..A250..PHL202108-202607

VIETNAM

main22030-B6030i1KRVET..A250..GCC,GEN202108-202608

main22030-BZ110iWAVE..A251..CHL,GCC,GEN202209-202409

main22030-BZ111iWAVE..A251..CHL202409-202608

main22030-BZ120iWAVE..A251..IDN,PHL202209-202409

main22030-BZ121iWAVE..A251..IDN,PHL202409-202607

23209INJECTOR SET, FUEL

main23209-B1050i1KRVET..A250202104-202203

main23209-B1090i1KRVET..A250202204-202608

main23209-B9100iWAVE..A251202104-202209

sub23209-B9120

main23209-B9120iWAVE..A251..CHL202209-202608

23250BRING, O(FOR FUEL INJECTOR)

main90043-01349iWAVE..A251202104-202608

main90043-01349iWAVE..A251..CHL202209-202608

COLOR:BLACK

23250GRING, O, NO.2(FOR FUEL INJECTOR)

main90043-01372i1KRVET..A250202104-202608

23295HOLDER, INJECTOR, NO.1

main23295-B1010i1KRVET..A250202104-202608

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-B1060i1KRVET..A250202104-202608

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-BZ020i1KRVET..A250;WAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X)202104-202608

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-BZ010i1KRVET..A250;WAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X)202104-202608

23845CINSULATOR, FUEL PIPE

main23845-40010i1KRVET..A250202104-202608

23901TUBE SUB-ASSY, FUEL

main23901-BZ140i1KRVET..A250;WAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X)202104-202608

7701

9004A10197

main9004A-10197

90119T0219

main90119-T0219

15 parts on this diagram · 2 diagrams in section
