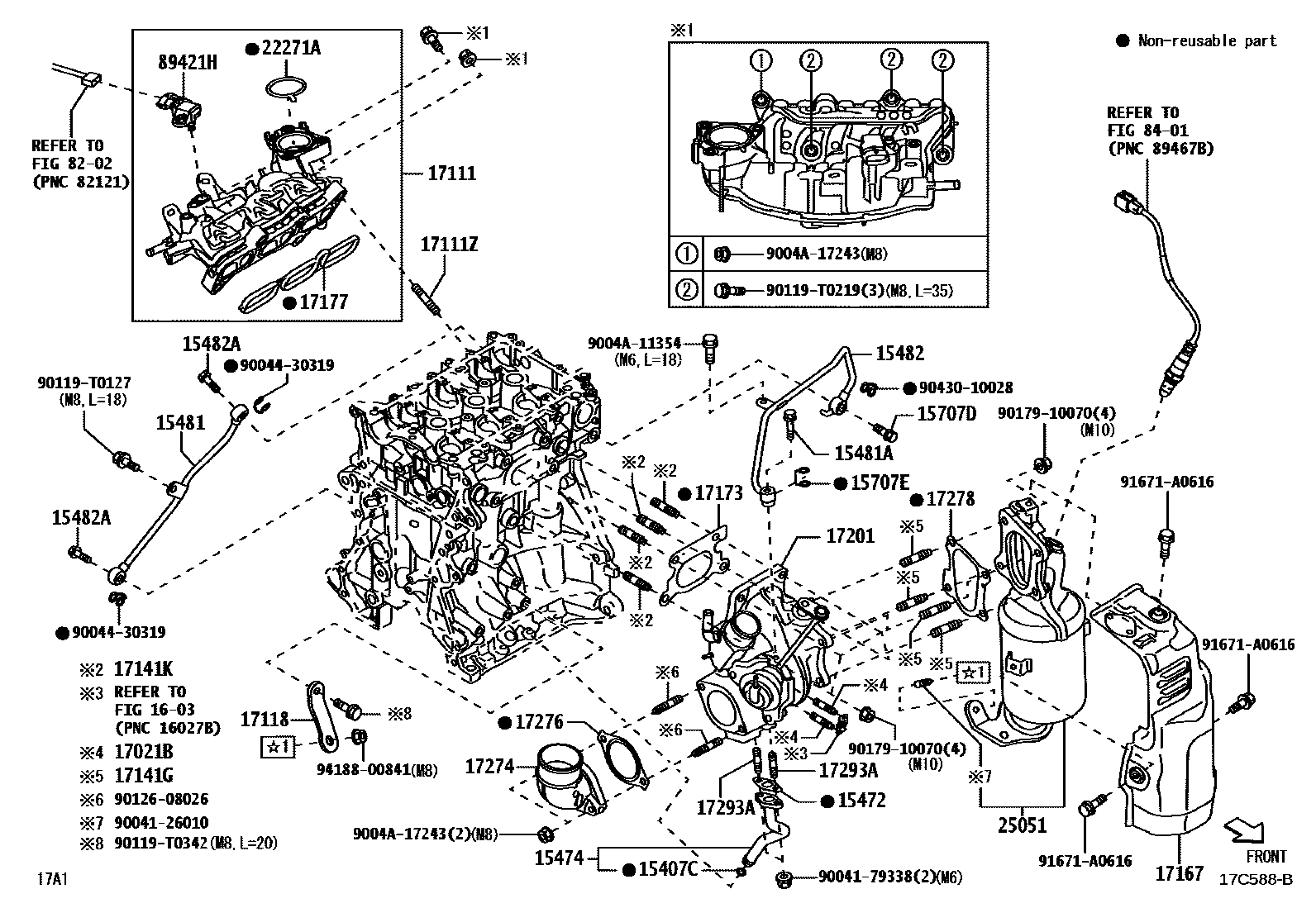

MANIFOLD
15407CRING, O(FOR TURBO OIL PIPE)
15472GASKET, TURBO OIL OUTLET, NO.1
15474PIPE, TURBO OIL OUTLET
15481PIPE, TURBO OIL, NO.1
15481ABOLT, UNION, NO.1
M8,L=33.5
M8,L=33.5
15482PIPE, TURBO OIL, NO.2
15482ABOLT, UNION, NO.2
M8,L=25.5
M8,L=25.5
15707DBOLT, UNION(FOR OIL PIPE)
M10,L=25
M10,L=25
15707EGASKET(FOR OIL PIPE)
1603
17021BBOLT, STUD
17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17118STAY, MANIFOLD
17141GBOLT, STUD(FOR TURBOCHARGER)
17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17274ELBOW, COMPRESSOR INLET
17276GASKET, COMPRESSOR INLET
17278GASKET, TURBO TO EXHAUST MANIFOLD
17293ABOLT, STUD(FOR TURBOCHARGER STAY)
22271AGASKET, THROTTLE BODY
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
sub25051-BZ300
sub25051-BZ240
sub25051-B6011
main25051-BZ300iWAVE..A251..L..GCC;WAVE..A251..5F..(GEN,IDN,PHL);WAVE..A251..CVT..(V,X)..(GCC,GEN,IDN,PHL)202209-202608
8202
8401
89421HSENSOR, VACUUM
9004126010
main90041-26010
9004179338
main90041-79338
9004430319
main90044-30319
9004A11354
main9004A-11354
9004A17243
main9004A-17243
90119T0127
main90119-T0127
90119T0219
main90119-T0219
90119T0342
main90119-T0342
9012608026
main90126-08026
9017910070
main90179-10070
9043010028
main90430-10028
91671A0616
main91671-A0616
9418800841
main94188-00841
42 parts on this diagram · 4 diagrams in section
