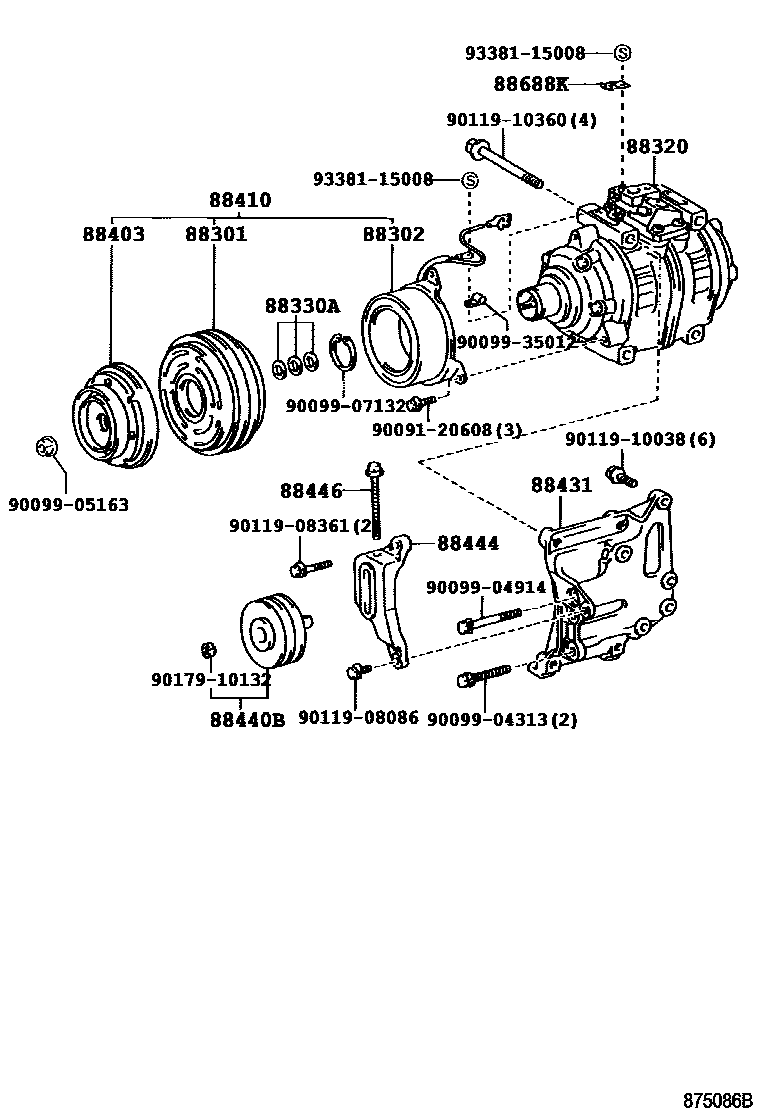

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-36040iHZB50..HRF..WC;HZB50..LHD..SRF..WC199301-199907

sub88412-36041

main88412-36041iBB50..CHI199705-200408

main88412-36080iRZB40..WC;RZB50..GCC;RZB50..HRF..GEN199309-200408

main88412-36130iHZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC199907-200408

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-36240iBB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL199301-200408

main88411-36260iRZB40..WC;RZB50..GCC;RZB50..HRF..GEN199309-200408

88320COMPRESSOR ASSY, COOLER

main88320-36350iRZB50..GCC;BB4#,RZB40..WC;RZB50..HRF..GEN199301-199602

sub88320-36520

main88320-36360iHZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL199301-199602

sub88320-36530

main88320-36520iRZB50..GCC;RZB50..HRF..GEN;BB4#,50,RZB40..WC199602-200201

sub88320-36560

main88320-36530iHZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL199602-201501

main88320-36540iRZB40..22S..GEN199705-201501

main88320-36560iBB42,BZB40,50..WC200108-201501

88330AWASHER (FOR MAGNET CLUTCH)

main88335-12050iBB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD)199301-201501

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-36040iBB50,HZB50,RZB40,50..WC..(ARL,CHI)199301-200408

88410CLUTCH ASSY, MAGNET

main88410-36340iBB4#,50..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL199301-199705

sub88410-36341

main88410-36341iBB4#,5#..WC;HZB50..HRF..WC;HZB50..LHD..SRF..WC199701-201501

main88410-36430iRZB40,50..CHI199309-201501

main88410-36510iHZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC199907-201501

main88410-36520iBZB40,50..STD200108-201501

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-36421iBB50..STD..WC..IV199301-201501

main88431-36550iHZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL199301-199907

main88431-36570iRZB40,50..(17S,26S,30S)..WC..(GCC,GEN)199309-200708

main88431-36610iHZB50..WC..ARL199907-201501

main88431-36680iXZB50..LHD..WC..IV;XZB5#..WC..(ARL,GEN,TAIW)200608-200708

sub88431-36681

main88431-36681iXZB50..LHD..WC..IV;XZB40,5#..WC..(ARL,GEN,TAIW)200708-201501

sub88431-E0150

main88431-36690iTRB40,50..WC200708-201501

main88431-E0150iXZB40,5#..WC201501

88440BPULLEY ASSY, IDLE

main16604-76010iHZB50..WC199907-201501

main88440-12170iRZB40..WC;RZB50..GCC;RZB50..HRF..GEN199309-199705

main88440-36130iBB50..EX..GEN;BB4#,50..17S,19S,22S199301-201501

main88440-36130iXZB50..LHD..WC..IV;XZB5#..WC..(ARL,GEN,TAIW)200608-200708

*196

main88440-36130iXZB50..LHD..WC..IV;XZB40,5#..WC..(ARL,GEN,TAIW)200708-200804

*197

main88440-36170iRZB40..WC;RZB50..GCC;RZB50..HRF..GEN199705-201404

sub88440-36171

main88440-36171iTRB40,50..WC201405-201501

88444BRACKET, IDLE PULLEY

main88444-36091iBB50..EX;BB50..WC..TDEFI;BB4#,5#..STD..WC..CBU199301-200108

sub88444-36092

main88444-36092iBB42,5#,BZB40,50..WC..(ARL,EUR,GCC,GEN)200108-201501

main88444-36150iHZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL199301-201501

88446BOLT, IDLE PULLEY

main88446-35010iTRB40,50..WC200708-201501

main88446-60030iRZB40..WC;RZB50..GCC;RZB50..HRF..GEN199309-200708

main90099-04306iBB50..STD..WC..IV199301-201501

main90099-04306iXZB50..LHD..WC..IV;XZB5#..WC..(ARL,GEN,TAIW)200608-200708

*196

main90099-04306iXZB50..LHD..WC..IV;XZB40,5#..WC..(ARL,GEN,TAIW)200708-200804

*197

main90105-08099iHZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL199301-201501

88688KBRACKET, COOLER COMPRESSOR

main88688-36370iRZB40..WC;RZB50..GCC;RZB50..HRF..GEN199309-199401

sub88688-36371

main88688-36371iRZB40..WC;RZB50..GCC;RZB50..HRF..GEN199401-199507

sub88688-36430

main88688-36440iRZB40..WC;RZB50..GCC;RZB50..HRF..GEN199507-199705

main88688-36441iRZB40,50..WC199705-200708

main88688-36610iBB50..EX..GEN;BB4#,50..17S,19S,22S199705-201501

main88688-36620iHZB50..WC199701-201501

main88688-3B120iXZB50..STD..GEN200608-201501

9009120608

main90091-20608

9009904313

main90099-04313

9009904914

main90099-04914

9009905163

main90099-05163

9009907132

main90099-07132

9009935012

main90099-35012

9011908086

main90119-08086

9011908361

main90119-08361

9011910038

main90119-10038

9011910360

main90119-10360

9017910132

main90179-10132

9338115008

main93381-15008

23 parts on this diagram · 9 diagrams in section
