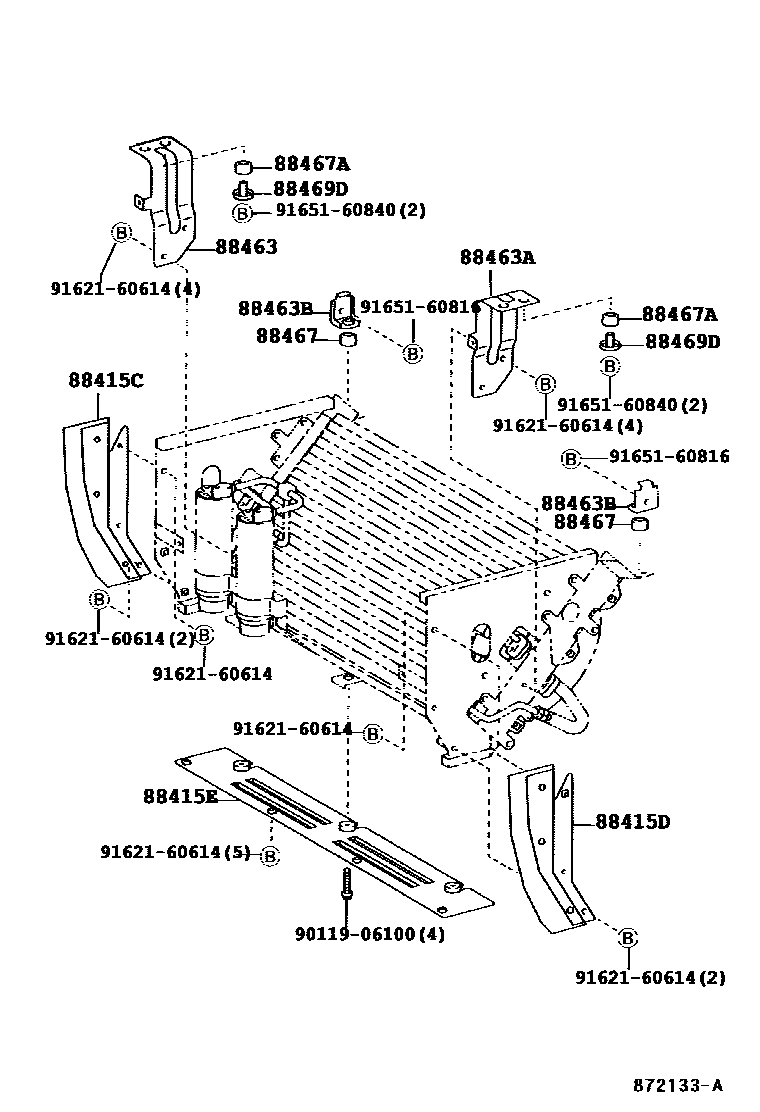

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1TYPE A 0003 1TYPE B 0004 1TYPE B 0005 1TYPE A 0007 1TYPE B 0008 1 0009 1 0010 1 0013 1 0014 1 0015 1 0016 1 0017 1 0020 1 0021 1 0023 1 0025 1 0026 1 0028 1 0030 1 0031 1 0032 1 0033 1 0034 1 0035 1 0036 1SERVICE PARTS 0040 1O-RING

88415CCOVER, DUST, NO.1

main88415-36060iRZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL199301-201501

main88415-36190iBZB50..EX200509-201501

88415DCOVER, DUST, NO.2

main88415-36080iBB50..EX..GEN;HZB50..RHD..(20S,22S)..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN199301-201501

main88415-36200iBZB40,50200509-201501

88415ECOVER, DUST, NO.3

main88415-36100iRZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL199301-199506

main88415-36140iRZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL199506-201501

main88415-36210iBZB40,50200509-200510

main88415-36280iBZB50..EX200511-201501

88463BRACKET, COOLER CONDENSER, NO.1

main88463-36010iRZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..RHD..HRF..WC..DSL;BB42,HZB50,RZB40..LHD..WC..5F199301-199506

main88463-36020iBB4#..RHD..WC199301-199506

main88688-36450iBB4#..RHD..WC199506-200408

main88688-36460iBB5#..WC..TDEFI199506-201501

main88688-36480iBB42,XZB40..RHD..WC200408-201501

main88688-36870iBZB40,50..STD200108-201208

sub88688-36871

main88688-36871iBZB40,50201209-201501

88463ABRACKET, COOLER CONDENSER, NO.2

main88463-36020iRZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL199301-199506

main88463-36040iBB42,RZB40..LHD..WC199301-199506

main88463-36050iBB4#..RHD..WC199301-199506

main88688-36450iXZB50..(20S,21S)..WC;BB50,HZB50,TRB50,XZB59..WC..(DCR,DSL,EFI,TD)199506-201501

main88688-36470iRZB40..HRF..GCC199506-201501

main88688-36480iBB42..RHD..WC199506-200408

main88688-36740iBZB40,50201501

main88688-36880iBZB50..EX200108-201501

88463BBRACKET, COOLER CONDENSER, NO.3

main88463-36060iRZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL199301-199506

main88688-36490iBB58,59;HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)199506-201501

88467CUSHION, COOLER CONDENSER, NO.1

main88467-90B00iRZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL199301-201501

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-90B01iBB50,HZB50,RZB40,50..WC..(ARL,CHI)199301-201501

88469DCOLLAR, CONDENSER BRACKET, NO.1

main88469-90B00iRZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL199301-201501

9011906100

main90119-06100

9162160614

main91621-60614

9165160816

main91651-60816

9165160840

main91651-60840

13 parts on this diagram · 27 diagrams in section
