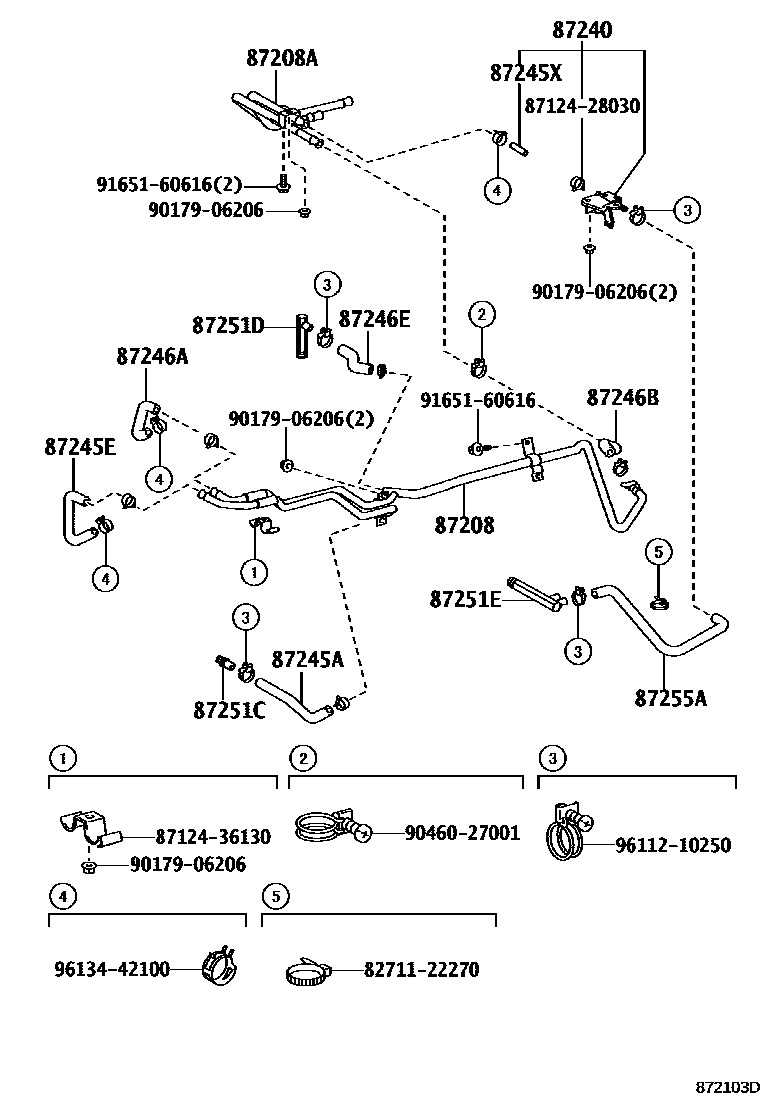

HEATING & AIR CONDITIONING - WATER PIPING

0001 1FRONT 0002 1FRONT 0003 1FRONT 0005 1FRONT(W/WATER PUMP) 0006 1FRONT 0008 1 0009 1FRONT ONLY 0010 1FRONT 0011 1FRONT 0012 1FRONT(W/WATER PUMP) 0013 1FRONT 0017 1FRONT ONLY 0020 1FRONT 0021 1FRONT 0022 1FRONT 0023 1FRONT 0024 1FRONT 0025 1FRONT 0026 1FRONT 0027 1FRONT ONLY 0028 1FRONT(W/WATER PUMP) 0029 1FRONT 0030 1FRONT ONLY 0031 1FRONT ONLY 0032 1FRONT 0033 1FRONT 0034 1FRONT(W/WATER PUMP) 0035 1FRONT 0037 1FRONT 0038 1FRONT 0039 1FRONT 0040 1FRONT 0041 1FRONT 0042 1FRONT 0043 1FRONT 0044 1FRONT 0045 1FRONT 0046 1FRONT 0047 1FRONT 0048 1REAR 0049 1REAR 0050 1REAR 0051 1REAR 0052 1REAR 0053 1REAR 0054 1REAR 0055 1REAR 0056 1REAR 0057 1REAR 0058 1REAR 0059 1REAR 0060 1REAR 0061 1REAR 0063 1REAR 0066 1REAR 0068 1REAR 0069 1REAR 0070 1REAR 0071 1REAR 0072 1REAR 0073 1REAR 0074 1 0075 1

87208PIPE SUB-ASSY, HEATER WATER

main87208-36370iHZB50..RHD199301-199705

main87208-36371iHZB50..RHD199705-199907

main87208-36372iHZB50..RHD..HRF..STD..WC..GEN..5F199907-201501

main87208-36380iHZB50..LHD199301-199705

main87208-36381iHZB50..LHD199705-199907

main87208-36382iHZB50..LHD199907-201005

sub87208-36383

main87208-36383iHZB50..LHD201005-201501

main87208-36390iBB4#..RHD..(ARL,GEN)199301-199705

main87208-36391iBB40,42..RHD..(ARL,GEN)199705-199907

main87208-36392iBB42..RHD..HRF..WOC199907-201501

main87208-36400iBB42..LHD199301-199705

main87208-36401iBB42..LHD199705-199907

main87208-36402iBB42..WC..GCC;BB42..LHD..26S..GEN199907-201501

main87208-36412iBB50..RHD..6F199907-200105

main87208-36420iBB42..LHD..WOC..GEN199301-199705

COLD SPEC

main87208-36421iBB42..LHD..WOC..GEN199705-199907

COLD SPEC

main87208-36422iBB42..LHD..SRF..WOC..GEN199907-200701

COLD SPEC

main87208-36430iBB42..SCO199301-199407

main87208-36440iRZB40,50199309-199705

main87208-36441iRZB40,50199705-199907

main87208-36442iRZB40..HRF..GCC200408-200708

COLD SPEC

main87208-36442iRZB40..WOC..GCC;RZB40..22S..GEN199907-200408

main87208-36560iBB50..RHD..IV199605-199907

main87208-36570iBB50..LHD..EUR199605-199907

main87208-36650iBB50..EX199705-199907

main87208-36651iBB50..EX..GEN199907-200108

main87208-36660iBB5#..STD..GEN199705-199907

main87208-36661iBB50..TD199907-201501

main87208-36770iBB50,58..LHD..TDEFI199907-200608

main87208-36A20iXZB50..RHD..WC..(ARL,EUR)200608-201108

sub87208-36A21

main87208-36A21iXZB50..RHD..IV201108-201501

main87208-36B60iXZB5#..EX200609-201501

main87208-36B80iXZB50..LHD..IV200608-201501

main87208-36C00iTRB40,50200708-201312

main87208-36C01iTRB40,50201312-201501

main87208-3B010iBB50,59..EX..TDEFI200108-200608

main87208-3B020iBB50..RHD..6F200105-200608

main87208-3B030iBZB50..EX200211-200608

87208APIPE SUB-ASSY, HEATER WATER, A

main87208-36190iBB42,RZB40,50..LHD..HRF..GEN199301-199705

FR MANUAL HEATER,W/O(FILTER) & RR HEATER

main87208-36190iBB50..EUR199705-199907

main87208-36460iHZB50..LHD..STD..(EUR,GEN);HZB50..RHD..(ARL,EUR,GEN)..5F199301-199705

FR MANUAL HEATER,W/O(FILTER) & RR HEATER

main87208-36461iHZB50..RHD..5F;HZB50..LHD..STD..GEN199705-199907

FR MANUAL HEATER,W/O(FILTER) & RR HEATER

main87208-36462iHZB50199907-201501

main87208-36470iHZB50..GCC199401-199705

FR MANUAL HEATER,W/O(FILTER)

main87208-36470iHZB50..SCO;HZB50..22S..4FC199301-199705

main87208-36471iHZB50..GCC199705-199907

FR MANUAL HEATER,W/O(FILTER)

main87208-36472iHZB50..4FC199907-200108

main87208-36730iBB42..RHD..GEN;RZB40,50..HRF..GCC;BB42,RZB40,50..LHD..SRF;BB40,5#..STD..(ARL,GEN)199705-199907

FR MANUAL HEATER,W/O(FILTER) & RR HEATER

main87208-36731iBB42,TRB40,50..LHD199907-201501

main87208-36780iBB50..CBU..6F199907-200608

main87208-36B70iXZB50..TAIW200608-201501

main87208-36C50iBB42..RHD201501

main87208-36C90iHZB50..RHD201501

87240VALVE ASSY, HEATER WATER

main87240-36030iHZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F199301-199907

W(REAR HEATER)

main87240-36080iBB50..EUR199606-199907

main87240-36120iBB50..WOC..6F;BB50..STD..WC..IV199907-201501

main87240-36130iBB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F199705-199907

87245HOSE, HEATER WATER, INLET

main87245-3B410iBB50..EUR199605-199907

W(REAR HEATER)

main87245-3C230iBB50..EUR199605-199907

NO.1

main87245-3C240iBB50..LHD..EUR199605-199907

NO.2

main87245-3C250iBB50..RHD..IV199605-199907

NO.2

87245AHOSE, HEATER WATER, INLET A

main87209-36850iBB4#..ARL,GCC,GEN199408-199705

main87209-36A80iXZB50..RHD..(ARL,EUR)200608-201501

main87245-36230iHZB50..SRF..WOC;HZB50..LHD..STD..WC..GEN..5F199301-199907

*EX-USSR

main87245-36230iHZB50..RHD..TD199301-199605

main87245-36231iHZB50..SRF..WOC;HZB50..LHD..STD..WC..GEN199907-200701

COLD SPEC

main87245-36270iHZB50..DSL;HZB50..LHD..TD199301-199705

main87245-36271iHZB50199705-199907

main87245-36272iHZB50..RHD..SRF;HZB50..RHD..WOC..GEN;HZB50..RHD..(20S,22S)..GEN199907-201501

main87245-36570iBB42..LHD..WOC..GEN199301-199705

COLD SPEC

main87245-36571iBB42..LHD..WOC199705-200701

COLD SPEC

main87245-36A30iXZB5#..EX200609-201501

main87245-36D60iXZB50..LHD200608-201501

main87245-36E00iTRB40,50200708-201501

main87245-3B410iBB42..SCO199301-199407

main87245-3B430iBB4#..ARL,GCC,GEN199301-199408

W(REAR HEATER)

main87245-3B431iBB40,42..RHD..(ARL,GEN)199705-199907

main87245-3B432iBB42..RHD..WC;BB42..RHD..SRF199907-201501

main87245-3B470iRZB40,50199309-199404

sub99556-30330

main87245-3C251iBB50..RHD..6F199907-200105

main87245-3C310iBB50..EX..GEN199907-200108

main87245-3C450iBB50..WC..CBU199705-199907

main87245-3C480iRZB40,50199705-199907

main87245-3C481iRZB40..WOC..GCC;RZB40..22S..GEN199907-200708

main87245-3C540iBB42..LHD199705-199907

main87245-3C541iBB42..WOC..GCC;BB42,50..19S,22S199907-201501

main87245-3C640iBB50..EX199705-199907

main87245-3C650iBB58;BB50..GEN..IV199705-199907

main87245-3C661iBB50..STD..WC..IV..5F199907-200108

main87245-3E170iBB50..RHD..6F200105-200608

main87245-3E260iBZB50..EX200211-200608

main87245-3E300iBB50,59..EX200108-200608

main99556-30500iRZB40,50199404-199705

*H,L=330

87245EHOSE, HEATER WATER, INLET E

main87245-3B390iBB42..RHD..GEN;BB40,HZB50..RHD199301-199705

main87245-3B391iHZB50..RHD..SRF;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN199705-200408

main87245-3B490iBB42,HZB50,RZB40,50..LHD199301-199705

main87245-3C490iBB50..EX..GEN..CBU199705-200108

87245XHOSE, HEATER WATER

main87245-36220iBB50,HZB50..LHD..EUR199308-199907

NO.1

main87245-36240iBB50,HZB50..LHD..EUR199308-199907

NO.2

main87245-36280iBB42..RHD..22S;RZB40..EX..GCC;HZB50..RHD..EX..(ARL,GEN)199301-199705

FR MANUAL HEATER,W/O(FILTER) & RR HEATER,NO.3

main87245-36280iBB42..RHD..22S;RZB40..EX..GCC;HZB50..RHD..EX..(ARL,GEN)199301-199705

NO.3

main87245-36290iHZB50..LHD..EX199301-199705

NO.1

main87245-36290iBB42..RHD..22S;RZB40..EX..GCC;HZB50..RHD..EX..(ARL,GEN)199301-199705

FR MANUAL HEATER,W/O(FILTER) & RR HEATER

main87245-36290iBB42..RHD..22S;RZB40..EX..GCC;HZB50..RHD..EX..(ARL,GEN)199301-199705

FR MANUAL HEATER,W/O(FILTER) & RR HEATER,NO.1

main87245-3B220iBB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL199301-199705

NO.2

main87245-3B230iBB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL199301-199705

NO.1

main87245-3C170iBB50,HZB50..RHD..IV199308-199907

main87245-3C410iBB50..LHD;BB50..RHD..6F;XZB50..ARL,EUR,TAIW;BB42,58,HZB50,RZB40,50,TRB40,50199907-201612

main87245-3C550iBB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F199705-199907

NO.2

main87245-3C560iBB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F199705-199907

NO.1

main87245-3C570iHZB50..RHD..EX199705-199907

FR MANUAL HEATER,W/O(FILTER) & RR HEATER,NO.1

main87245-3C580iHZB50..RHD..EX199705-199907

FR MANUAL HEATER,W/O(FILTER) & RR HEATER,NO.2

main87245-3C590iBB50..WC..CBU199705-199907

FR MANUAL HEATER,W/O(FILTER) & RR HEATER,NO.2

main87245-3C590iHZB50..LHD..EX199705-199907

NO.3

main87245-3C590iHZB50..LHD..EX199705-199907

FR MANUAL HEATER,W/O(FILTER) & RR HEATER,NO.3

main87245-3C600iBB42,HZB50,RZB40..LHD..(17S,20S,22S)199705-199907

FR MANUAL HEATER,W/O(FILTER) & RR HEATER,NO.1

main87245-3C600iBB50..WC..CBU199705-199907

NO.1

main87245-3C610iRZB40..26S;BB42..WOC..GCC;HZB50..SRF..GCC;HZB50..LHD..HRF..STD;BB42,RZB50..LHD..(26S,30S)..WC199705-199907

NO.1

sub87245-3C611

main87245-3C610iBB58;BB50..GEN..IV199705-199907

FR MANUAL HEATER,W/O(FILTER) & RR HEATER,NO.1

sub87245-3C611

main87245-3C610iBB58;BB50..GEN..IV199705-199907

COLD SPEC & *EX-USSR,NO.1

sub87245-3C611

main87245-3C620iBB42..LHD..WOC..GEN;HZB50..LHD..SRF..GEN199705-199907

COLD SPEC & *EX-USSR,NO.2

sub87245-3C621

main87245-3C620iBB58;BB50..GEN..IV199705-199907

NO.2

sub87245-3C621

main87245-3C620iBB58;BB50..GEN..IV199705-199907

FR MANUAL HEATER,W/O(FILTER) & RR HEATER,NO.2

sub87245-3C621

main87245-3C710iBB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F199705-199907

REAR

main87245-3C730iBB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F199705-199907

FRONT

main99556-30100iBB50..EUR199301-199907

*H,L=55

main99556-30100iBB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL199301-199705

*H,L=85,NO.3

main99556-31000iBB50,HZB50..RHD..IV199308-199907

*H,L=960

87246AHOSE, HEATER WATER, OUTLET A

main87245-36E10iTRB40,50200708-201501

FRONT HEATER

main87245-3B400iBB4#,HZB50..RHD199301-199705

main87245-3B401iBB40,42,HZB50..RHD..(ARL,GEN)199705-199907

main87245-3B500iBB42,HZB50,RZB40,50..LHD199301-199705

main87245-3C370iHZB50..RHD..SRF;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN199907-201501

main87245-3C461iBB42..LHD..SRF;HZB50,TRB40,50..LHD199907-201501

main87245-3C490iXZB50..WOC..CBU199907-201501

main87245-3C500iBB50..EX199705-199907

main87245-3C510iBB50..STD..WC..IV;BB50..LHD..WOC..6F199907-201501

87246BHOSE, HEATER WATER, OUTLET B

main87245-36C00iHZB50,TRB40,50..LHD201005-201501

main87245-3B410iBB42..RHD..GEN;BB40,HZB50..RHD199301-199705

main87245-3C380iXZB50..IV199907-201501

main87245-3C440iBB50..STD..GEN;BB40,58,RZB40,50;BB42,HZB50..RHD..(ARL,GEN)199705-199907

main87245-3C460iRZB40,50..WC..GCC199705-199907

FR MANUAL HEATER,W/O(FILTER)

main87245-3C460iRZB40,50..GEN;BB42,HZB50..LHD;RZB40..WOC..GCC199705-199907

COLD SPEC

main87245-3E290iBZB50..EX200211-200608

main99556-30065iBB42,HZB50,RZB40,50..LHD199301-199705

*H,L=65

sub99556-30100

87246EHOSE, HEATER WATER, OUTLET E

main87245-36D40iXZB5#..EX200609-201501

main87245-36D50iXZB50..TAIW200608-201501

main87245-36E10iTRB40,50201501

main87245-3B330iXZB50..WC..ARL200608-201501

main87245-3B431iBB50..EX199705-199907

main87245-3B440iBB4#..ARL,GCC,GEN199301-199705

main87245-3B441iBB40,42..RHD..(ARL,GEN)199705-199907

main87245-3B442iBB42..RHD200408-201501

main87245-3B442iBB50..RHD..6F199907-200408

FR MANUAL HEATER,W/O(FILTER)

main87245-3B450iBB42..SCO199301-199407

main87245-3B462iRZB50;RZB40..GEN;RZB40..SRF..GCC199907-200708

main87245-3B480iHZB50199301-199705

main87245-3B481iHZB50199705-199907

main87245-3C260iBB50,59..EX..TDEFI200108-200608

main87245-3C300iBB50,58..6F199907-200608

main87245-3C450iBB42..LHD199705-199907

main87245-3C451iBB50..WOC..CBU..TD200008-201501

main87245-3C451iBB50..LHD..IV..6F199907-200408

FR MANUAL HEATER,W/O(FILTER)

main87245-3C540iBB50..WC..CBU199705-199907

main87245-3C641iBB50..EX..GEN199907-200108

main87245-3C651iBB50..WOC..5F199907-200108

main87245-3C660iBB58;BB50..GEN..IV199705-199907

87251CJOINT, WATER HOSE THROUGH

main87251-30200iBB5#..LHD199301-201501

main87251-30200iBB42..LHD..SRF..GEN199301-199907

CHINA SPEC

main87251-30200iBB42..LHD..SRF..GEN199301-199705

CHINA SPEC OR TAIWAN SPEC

main87251-30200iBB42..SRF..WC;BB42..WOC..GCC;BB4#,50..RHD..(ARL,EUR,GEN)199505-199705

W(REAR HEATER)

main87251-60010iBB42..LHD..WOC..GEN199301-199705

COLD SPEC & *EX-USSR

87251DJOINT, WATER, NO.1

main87251-30200iBB50..STD..WC..IV;BB50..LHD..WOC..6F199907-201501

main87251-36020iBB58;BB50..GEN..IV199705-199907

main87251-60010iBB4#199301-199705

main87251-95403iBB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC199705-201501

87251EJOINT, WATER, NO.2

main87251-30200iBB58,59;BB50..6F;BB50,BZB50..EX199907-200608

main87251-36020iBB50..STD..WC..IV..5F199907-200108

main87251-90B00iBB4#199301-199404

main87251-95400iBB50..TD;BB42..RHD;BB42..LHD..SRF199404-201501

87255AHOSE, REAR HEATER WATER INLET, A(FROM ENGINE)

main87209-36A80iXZB40,50..LHD200608-201501

main87245-36180iBB4#..ARL,GCC,GEN199301-199705

main87245-36181iBB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC199705-201501

main87245-36250iBB50..RHD..6F199301-200105

main87245-36250iHZB50..LHD..STD..WC..GEN;BB42,HZB50..LHD..SRF..WOC..GEN199907-200408

COLD SPEC

main87245-36B90iHZB50..LHD..WC..GEN;BB42,HZB50..LHD..SRF..WOC200408-200701

COLD SPEC

main87245-36E20iTRB40,50200708-201501

main87245-3B620iHZB50..LHD..TD;HZB50..30S..4FC;HZB50..(ARL,GCC,GEN)..5F199301-199907

main87245-3B621iHZB50199907-201501

main87245-3C080iRZB40..HRF..GCC199309-200708

sub87245-36E20

main87245-3C290iBB50,58..6F199907-201501

main87245-3C530iBB50..STD..WC..IV;BB50..LHD..WOC..6F199705-200108

8271122270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22270

8712428030CLAMP, HEATER

main87124-28030

8712436130CLAMP, HEATER

main87124-36130

9017906206

main90179-06206

9046027001

main90460-27001

9165160616

main91651-60616

9611210250

main96112-10250

9613442100

main96134-42100

22 parts on this diagram · 63 diagrams in section
