MIRROR

0001 1INNER MIRROR 0002 1OUTER MIRROR = W(SUB MIRROR) 0003 1OUTER MIRROR = W/O(SUB MIRROR0004 1SUB MIRROR 0005 1REAR UNDER MIRROR

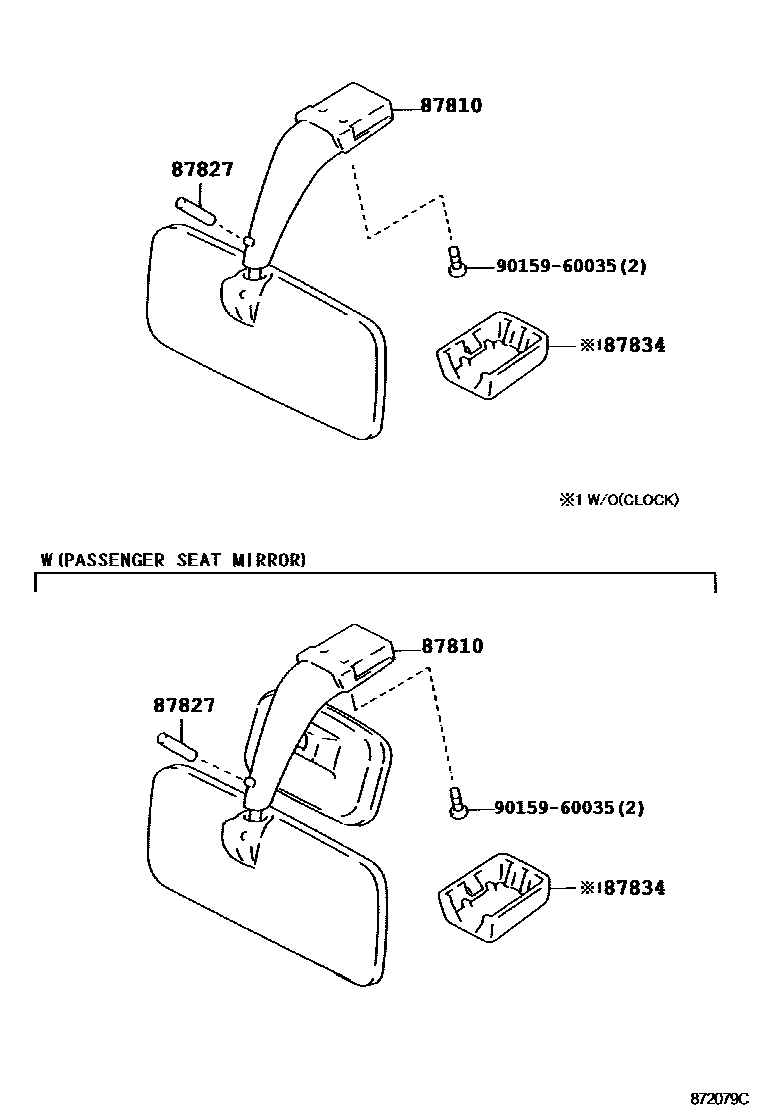

87810MIRROR ASSY, INNER REAR VIEW

main87810-36010-A0iBB42,HZB50,RZB40,50..GCC,GEN,SCO199301-199505

IVORY,TRIM4#

sub87810-36010

main87810-36010-A1iHZB50..GCC,GEN,SCO;BB42,5#,RZB40,50..GCC,GEN199505-199907

IVORY,TRIM4#

sub87810-36010

main87810-36020-A0iBB4#,HZB50,RZB40,50..CBU199301-199505

W(PASSENGER SEAT MIRROR),IVORY,TRIM4#

sub87810-36020

main87810-36020-A1iBB50..EX;BB4#,HZB50,RZB40,50..CBU199505-199907

W(PASSENGER SEAT MIRROR),IVORY,TRIM4#

sub87810-36020

main87810-36040-A0iBB50..STD..WC..IV..5F199907-200108

IVORY,TRIM4#

sub87810-36040

main87810-36040-B0iBB42,HZB50,TRB40,50,XZB40,50..20S,26S,30S200108-201612

MD.CHARCOAL,TRIM1#

sub87810-36040

main87810-36050-A0iBB50..EX..GEN;BB50..STD..GEN..CBU..5F;BB4#,HZB50,RZB40,50..ARL,GCC,GEN199907-200108

W(PASSENGER SEAT MIRROR),IVORY,TRIM4#

sub87810-36050

main87810-36050-B0iBB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..ARL,GCC,GEN200108-201612

W(PASSENGER SEAT MIRROR),MD.CHARCOAL,TRIM1#

sub87810-36050

main87810-36070-B0iHZB50..LHD..HRF..WC..GEN201109-201612

GRAY,TRIM1#

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-10010iBB50..CHI199301-201501

L=40.5

main87828-30010iXZB50..WOC..CBU199301-201501

L=44.0

main87828-32010iBB42..GEN,SCO199301-201501

L=47.0

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-A0iBB4#,HZB50,RZB40,50..(DX,STD)..CBU199301-199505

IVORY,TRIM4#

sub87834-20080

main87834-20080-A1iBB4#,HZB50,RZB40,50..(DX,STD)..CBU199505-200108

IVORY,TRIM4#

sub87834-20080

main87834-20080-B5iHZB50..ARL200108-201612

MD.CHARCOAL,TRIM1#

sub87834-20080

9015960035

main90159-60035

4 parts on this diagram · 5 diagrams in section
