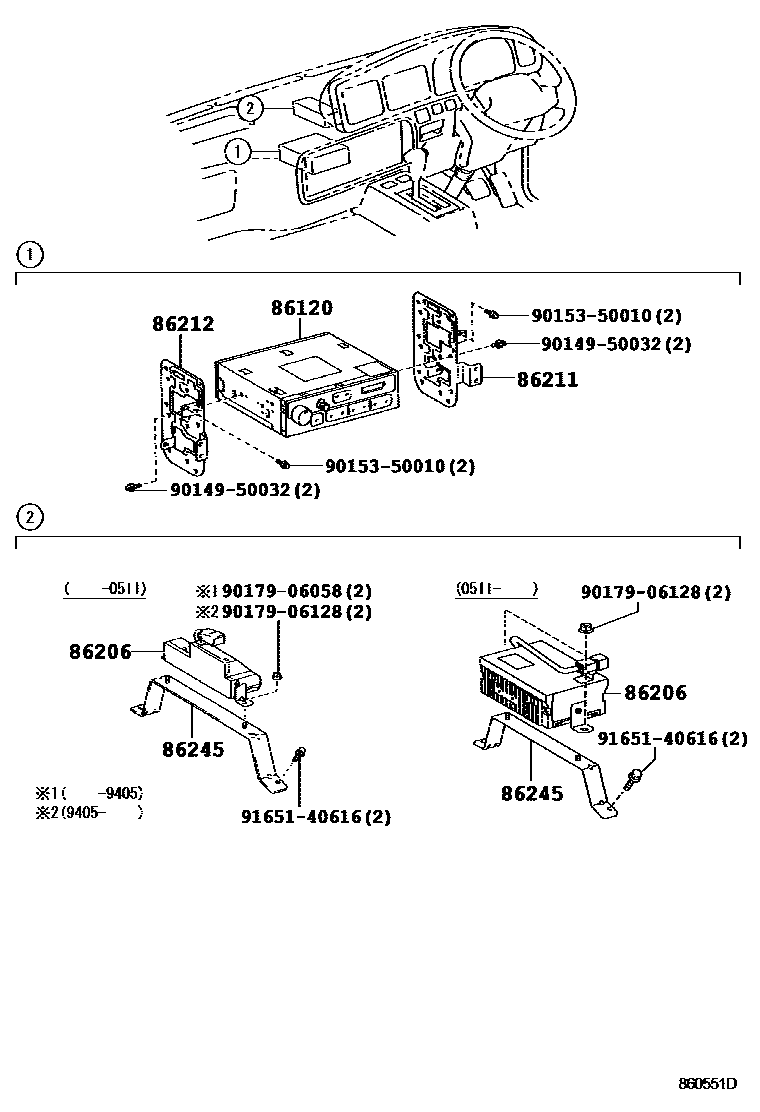

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1RADIO & CONVERTER 0004 1RADIO & CONVERTER 0005 1RADIO & CONVERTER 0006 1RADIO & RADIO KNOB 0007 1RADIO & RADIO KNOB 0008 1RADIO & RADIO KNOB 0009 1TAPE PLAYER & MIC

86120RECEIVER ASSY, RADIO

main86120-10460iRZB50;RZB40..GEN;RZB40..SRF..GCC199907-201108

MATSUSHITA, ID=52202,AM/FM

main86120-10460iTRB40,50200708-201108

MATSUSHITA, ID=52202

main86120-16650iBB42,50,HZB50,TRB40,50201108-201209

MATSUSHITA, ID=52201

main86120-16660iHZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB42,50,HZB50,RZB40..(19S,22S)..GEN199907-200708

FUJITSU TEN,ID=17409,AM/FM ETR CASSETTE (AM=9KHZ STEP) 2 SPEAKER

main86120-16670iTRB40,50200708-201108

FUJITSU TEN,ID=17410

main86120-16670iRZB50;RZB40..GEN;RZB40..SRF..GCC199907-201108

FUJITSU TEN,ID=17410,AM/FM ETR CASSETTE(AM=10KHZ STEP) 2 SPEAKERS

main86120-16680iRZB50;RZB40..GEN;RZB40..SRF..GCC199907-201108

MATSUSHITA, ID=57206,AM/FM CASSETTE

main86120-16680iTRB40,50;XZB50..GEN..4FC200708-201108

MATSUSHITA, ID=57206

main86120-1A010iHZB50,RZB40..17S,20S;BB42,HZB50,RZB40,50..STD..(GCC,SCO)199301-199907

MATSUSHITA,AM/FM/SW

main86120-1A020iBB4#,HZB50,RZB40,50..(17S,19S,22S,26S,30S)..(ARL,GCC,GEN)199301-199907

FUJITSU TEN,ID=12201,AM/FM ETR

main86120-1A040iRZB40,50..STD;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN)199301-199907

FUJITSU TEN,ID=12101,AM ETR

main86120-26160iBB42,50,HZB50,TRB40,50..GEN201209-201501

PANASONIC,ID=52898

main86120-26230iXZB59;BB42,HZB50,TRB40,50,XZB40,50..(20S,21S,26S,30S)..(GCC,GEN,TAIW)201501-201511

FUJITSU TEN,ID100315

sub86120-26231

main86120-26231iXZB59;BB42,HZB50,TRB40,50,XZB40,50..(20S,21S,26S,30S)..(GCC,GEN,TAIW)201512

FUJITSU TEN,ID100648

sub86120-26232

main86120-26240iBB42,HZB50,TRB40,50,XZB40,50..(26S,30S)..GEN201501-201511

FUJITSU TEN,ID100316

sub86120-26241

main86120-26241iBB42,HZB50,TRB40,50,XZB40,50..(26S,30S)..GEN201512

FUJITSU TEN,ID100649

sub86120-26242

main86120-28600iBB42,50,HZB50,TRB40,50,XZB5#..GCC,GEN,TAIW201209-201501

FUJITSUTEN,ID=100111

sub86120-28601

main86120-2A070iBB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN199301-199907

MATSUSHITA,AM/FM

main86120-2B380iBB42,5#,HZB50,RZB40,50..(17S,22S,26S,30S)..(GCC,GEN)199705-199907

FUJITSU TEN,ID=17202,AM/FM CASSETTE

main86120-35050iBB42,HZB50,RZB40,50..(17S,22S,26S,30S)..(GCC,GEN)..5F199705-199907

MATSUSHITA,ID=57100,AM CASSETTE

main86120-35080iHZB50..LHD..WOC;BB42..LHD..HRF..WOC;BB42,RZB40..SRF..WOC..GEN;RZB40,50..(26S,30S)..WC..(GCC,GEN)199907-201209

MATSUSHITA,ID=52100,AM 1 SPEAKER (9KHZ)

sub86120-60N00

main86120-35080iTRB40,50200708-201209

MATSUSHITA,ID=52100

sub86120-60N00

main86120-35090iBB42,HZB50,RZB40,50..GEN..5F199705-199907

MATSUSHITA,ID=57400,AM/FM ETR CASSETTE (AM=5KHZ STEP)

main86120-35100iBB50,HZB50..EX;BB42,HZB50,RZB40,50..STD..GCC199705-199907

MATSUSHITA,ID=57401,AM/FM ETR CASSETTE (AM=9KHZ STEP)

main86120-35190iBB42,50,HZB50..DSL,TD199907-200908

MATSUSHITA, ID=57101,AM ETR CASSETTE 2 SPEAKER

main86120-35190iTRB40,50200708-200908

MATSUSHITA, ID=57101

main86120-37040iBB42..22S;BB42..WOC..GCC;HZB50..RHD..SRF;BB42,HZB50..RHD..HRF..WOC..GEN199301-201108

MATSUSHITA,ID=52102,AM 5 BUTTON

sub86120-37021

main86120-60C10iBB42..RHD;BB42..LHD..SRF;BB50,HZB50,TRB40,50,XZB50..(21S,26S,30S)..(GCC,GEN,TAIW)200708-201209

FUJITSU TEN,ID=17424

sub86120-60C11

86206CONVERTER SUB-ASSY, VOLTAGE

main86206-36020iBB42,58,59,HZB50;BB50..19S,20S,21S,30S199301-200510

sub86206-36120

main86206-36090iBB58,59;BB50..19S,20S,21S200510-201411

sub86206-36091

main86206-36091iBB42,50,HZB50201412-201501

86211BRACKET, RADIO, NO.1

main86211-36020iBB4#,50,HZB50,RZB40,50199301-199705

main86211-36030iBZB50..EX;BB5#..TDEFI199705-201311

main86211-36040iXZB50..RHD..(20S,21S)..WC;BB42,BZB40,50,HZB50,XZB40,59..RHD200708-201501

86212BRACKET, RADIO, NO.2

main86212-36010iBB4#,50,HZB50,RZB40,50199301-199705

main86212-36020iXZB50..RHD..IV199705-201311

main86212-36030iBB42,5#,HZB50,RZB40,50..LHD199705-201311

main86212-36040iXZB50..WOC..CBU200708-201501

86245BRACKET, VOLTAGE CONVERTER

main86245-36010iXZB59;XZB50..RHD..(20S,21S)199301-201501

main86245-36020iBB50..CHI199301-200708

main86245-36030iBB42,HZB50..LHD200708-201501

9014950032

main90149-50032

9015350010

main90153-50010

9017906058

main90179-06058

9017906128

main90179-06128

9165140616

main91651-40616

10 parts on this diagram · 7 diagrams in section
