REAR WASHER

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-36010iBB42,RZB40,50..GCC,GEN;HZB50..(20S,30S)..(GCC,GEN)199301-199705

sub85391-36020

main85391-36020iRZB50;RZB40..GEN;RZB40..SRF..GCC199705-201501

85310RMOTOR ASSY, REAR WASHER

main85310-20200iRZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN)¥0199301-201501

12V

main85330-36160iBB42;HZB50..30S199301-201501

24V

85330RJAR ASSY, REAR WASHER

main85325-36030iHZB50..(GCC,GEN)..5F;BB42,50,RZB40,50..17S,19S,22S,26S,30S¥0199301-200007

main85325-36031iHZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,50,RZB40..(19S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN200007-201501

85330SBUSH, REAR WASHER JAR

main90099-32089iHZB50..(20S,30S)..(GCC,GEN);BB42,50,RZB40,50..(17S,22S,26S,30S)..(GCC,GEN)199301-201501

85332DCAP, REAR WASHER TANK

main85316-35130iHZB50..(20S,30S)..(GCC,GEN);BB42,50,RZB40,50..(17S,22S,26S,30S)..(GCC,GEN)¥220199301-201501

85348RJOINT, REAR WASHER HOSE, NO.1

main85355-14481iBB42..RHD;BB42..LHD..SRF;BB50,HZB50,TRB40,50..26S,30S¥0199301-201501

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122iHZB50..(20S,30S)..(GCC,GEN);BB42,50,RZB40,50..(17S,22S,26S,30S)..(GCC,GEN)199301-201501

85348UJOINT, REAR WASHER HOSE, NO.3

main85355-20200iHZB50..(20S,30S)..(GCC,GEN);BB42,50,RZB40,50..(17S,22S,26S,30S)..(GCC,GEN)199301-201501

85348VJOINT, REAR WASHER HOSE, NO.4

main85395-36010iHZB50..(20S,30S)..(GCC,GEN);BB42,50,RZB40,50..(17S,22S,26S,30S)..(GCC,GEN)¥0199301-201501

85348YJOINT, REAR WASHER HOSE, NO.5

main85349-32150iBB42,50,HZB50,TRB40,50¥0201402-201501

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-59092iBB42,RZB40,50..GCC,GEN;HZB50..(20S,30S)..(GCC,GEN)199301-199705

L=2180

sub90099-59065

main90446-06006iHZB50..(GCC,GEN)..5F;BB42,50,RZB40,50..(17S,22S,26S,30S)..(GCC,GEN)¥640199705-201402

L=2000(*H,L=1957)

main90446-06006iBB42,50,HZB50,TRB40,50¥640201402-201501

L=2000(*H,L=1830)

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-62120iBB42,50,HZB50,TRB40,50201402-201501

L=120

85389PACKING, WINDSHIELD WASHER HOSE, NO.1

main85389-36030iBB42,HZB50,RZB40,50..GCC,GEN¥0199301-201501

85389APACKING, WINDSHIELD WASHER HOSE, NO.2

main85389-36020iHZB50..(20S,30S)..(GCC,GEN);BB42,50,RZB40,50..(17S,22S,26S,30S)..(GCC,GEN)199301-201501

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200¥120

9011906098

main90119-06098¥80

9048001147

main90480-01147¥210

9095901116

main90959-01116¥60

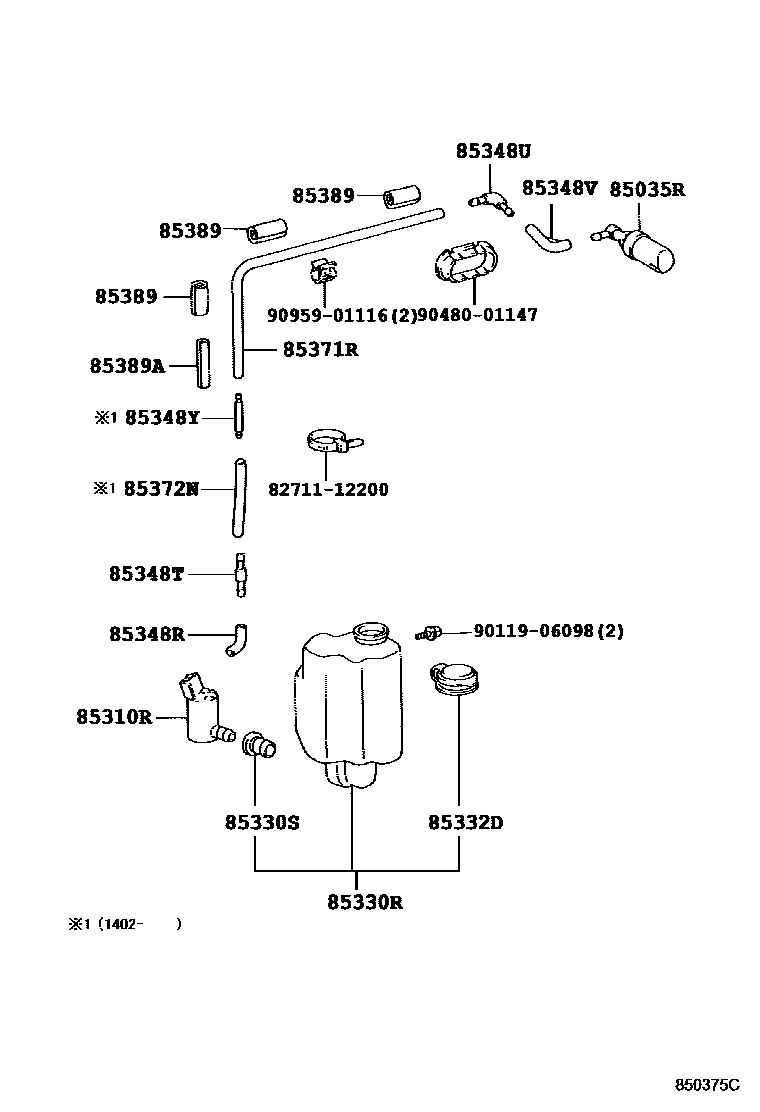

18 parts on this diagram · 1 diagram in section
