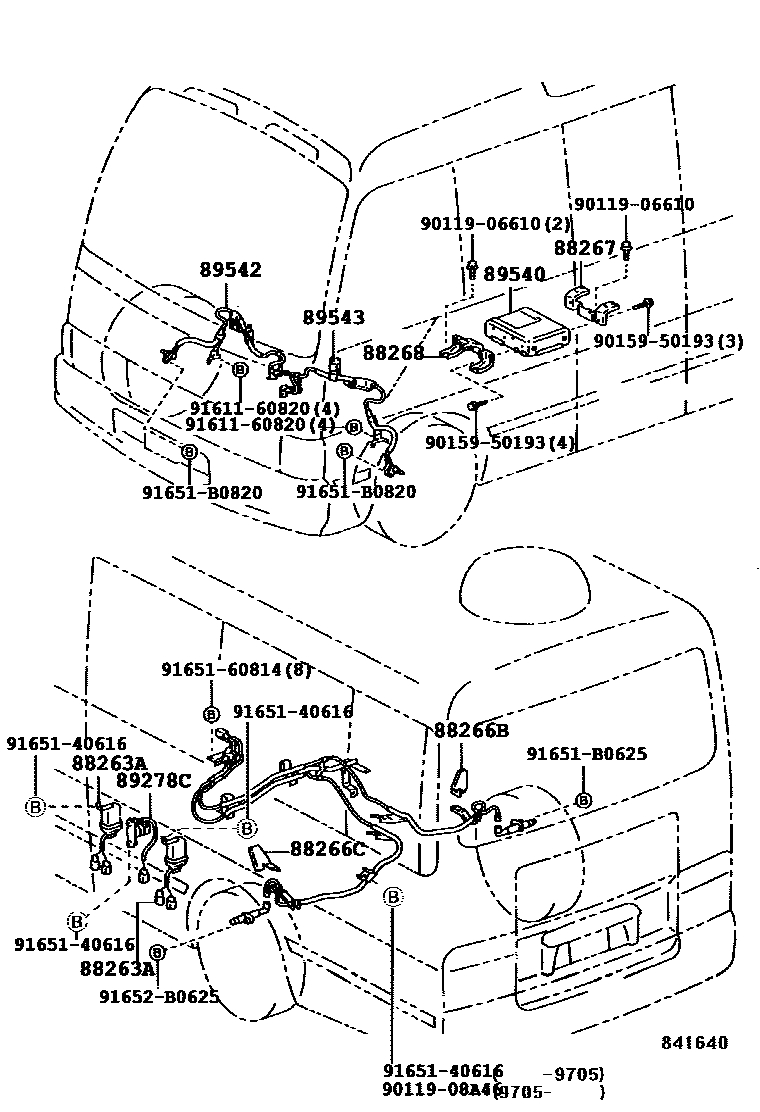

ABS & VSC

0001 1 0002 1 0003 1 0004 1

88263ARELAY, SKID CONTROL

main88263-36020iBB50..WC..CBU199705-199907

MOTOR RELAY

main88263-36030iBB50..WC..CBU199705-199907

SOLENOID RELAY

main88263-36040iBB50..6F199907-201501

main88263-37010iBZB40,50,XZB40,5#..GEN200908-201501

88266BCLAMP, SKID CONTROL SENSOR, NO.1

main88266-36110iBB50..WC..CBU199705-199907

88266CCLAMP, SKID CONTROL SENSOR, NO.2

main88266-36120iBB50..WC..CBU199705-199907

88267BRACKET, SKID CONTROL COMPUTER, NO.1

main88267-36020iBB50..WC..CBU199705-199907

88268BRACKET, SKID CONTROL COMPUTER, NO.2

main88268-36020iBB50..WC..CBU199705-199907

89278CRELAY, SKID CONTROL

main89278-36020iBB50..WC..CBU199705-199907

89540COMPUTER ASSY, SKID CONTROL

main89540-36050iBB50..6F199907-200908

main89540-36070iTRB50..GCC201108-201501

main89540-36110iHZB50..LHD201209-201501

PART NUMBER LABEL=89540-36110

main89540-36110iXZB50..IV200908-201311

main89540-36120iXZB40,5#..HRF200908-201501

main89540-36130iHZB50..WOC;HZB50..SRF..WC;HZB50..HRF..GCC200908-201501

PART NUMBER LABEL=89540-36130

main89541-36020iBB50..WC..CBU199705-199907

89542SENSOR, SPEED, FRONT RH

main89542-36010iBB50..WC..CBU199705-199907

main89542-36020iBZB40,50;HZB50..LHD;TRB50..GCC199907-201501

main89542-36050iXZB50..IV200608-201501

main89542-36060iXZB50..IV201109-201311

89543SENSOR, SPEED, FRONT LH

main89543-36010iBB50..WC..CBU199705-199907

main89543-36020iBB50..CBU..6F199907-201501

main89543-36050iHZB50,XZB50..LHD..HRF..WC..(GEN,TAIW)200608-201501

9011906610

main90119-06610

9011908A46

main90119-08A46

9015950193

main90159-50193

9161160820

main91611-60820

9165140616

main91651-40616

9165160814

main91651-60814

91651B0625

main91651-B0625

91651B0820

main91651-B0820

91652B0625

main91652-B0625

18 parts on this diagram · 4 diagrams in section
