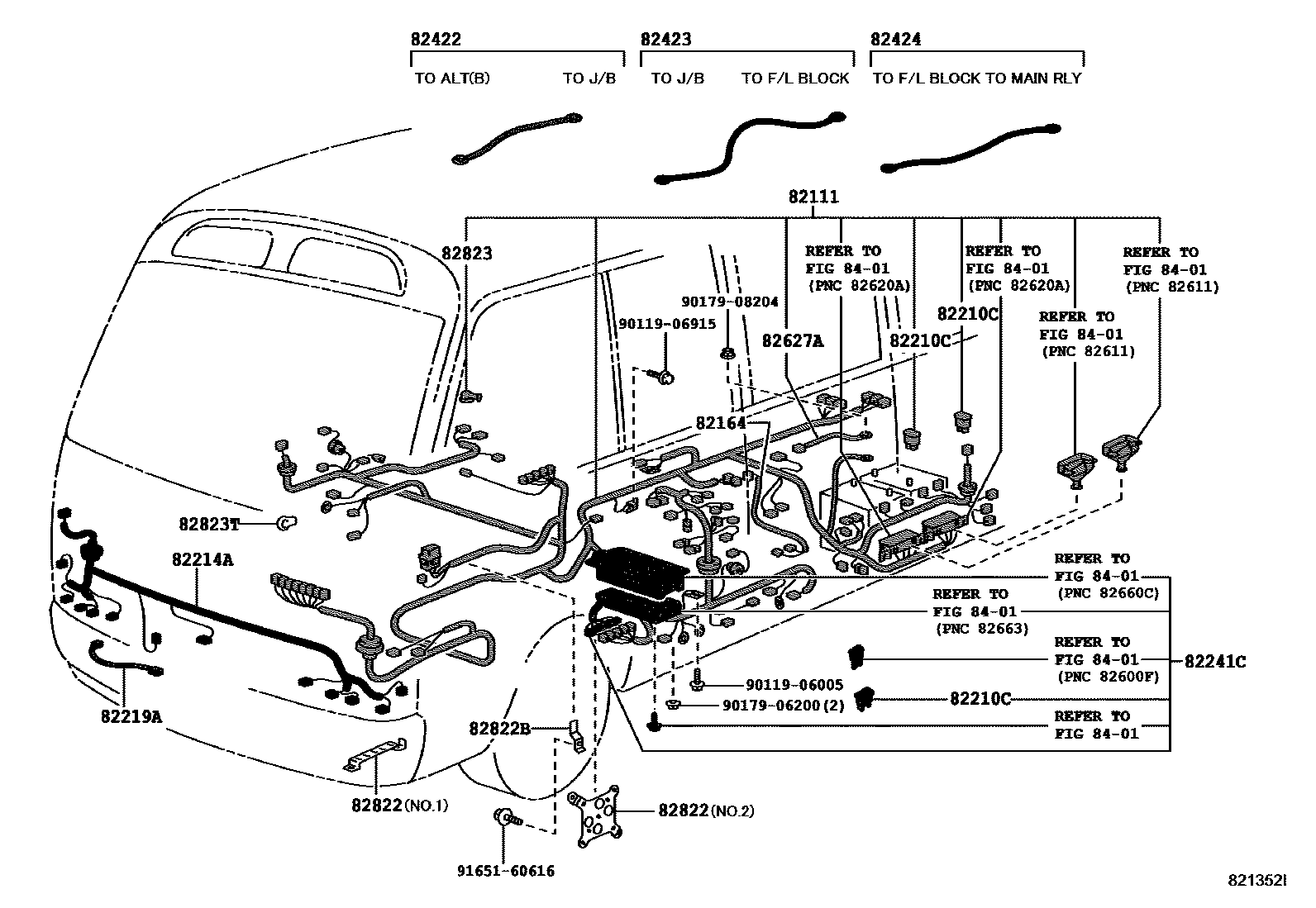

WIRING & CLAMP
82111WIRE, ENGINE ROOM MAIN
FOLDING AUTO DOOR OR W(REAR HEATER..2PC)
W(FR MANUAL HEATER & RR HEATER)
BATTERY(48D26R X2)
W(BATTERY=48D26R X 2 & FRONT HEATER)
W(BATTERY=48D26R X 2)
W(BATTERY X 2)
W(BATTERY X 2)
W(BATTERY X 2)
W(BATTERY X 2)
FOLDING AUTO DOOR
GLIDING AUTO DOOR
FOLDING AUTO DOOR OR W(REAR HEATER..2PC)
W(FR MANUAL HEATER & RR HEATER)
W(FR MANUAL HEATER & RR HEATER)
W(FRONT HEATER)
SINGAPORE SPEC
FOLDING AUTO DOOR
SINGAPORE SPEC
sub82111-36437
sub82111-36432
*EX-USSR
*EX-USSR
*EX-USSR
*EX-USSR
COLD SPEC
RUSSIA SPEC & COLD SPEC
RUSSIA SPEC
RUSSIA SPEC & W(BATTERY X 2)
FOLDING AUTO DOOR
sub82111-36557
sub82111-36552
FOLDING AUTO DOOR OR W(REAR HEATER..2PC)
GLIDING AUTO DOOR
FOLDING AUTO DOOR
FOLDING AUTO DOOR
GLIDING AUTO DOOR
sub82111-36583
CHINA SPEC
CHINA SPEC OR *EX-USSR
CHINA SPEC
*EX-USSR
*EX-USSR
CHINA SPEC
RUSSIA SPEC
CHINA SPEC
RUSSIA SPEC
RUSSIA SPEC
SINGAPORE SPEC
SINGAPORE SPEC
sub82111-36A91
sub82111-36A93
SINGAPORE SPEC
SINGAPORE SPEC
SINGAPORE SPEC
SINGAPORE SPEC
SINGAPORE SPEC
SINGAPORE SPEC
SINGAPORE SPEC
SINGAPORE SPEC
SINGAPORE SPEC
sub82111-36K12
sub82111-36K22
W(GLIDING AUTO SIDE DOOR)
W(GLIDING AUTO SIDE DOOR)
JORDAN SPEC
JORDAN SPEC
W(ABS)
W(ABS)
W(ABS)
W(ABS)
W(BATTERY=55D23R X2)
W(BATTERY=55D23R X2)
W(ABS)
W(ABS)
W(ABS & GLIDING AUTO SIDE DOOR)
W(ABS & GLIDING AUTO SIDE DOOR)
W(ABS)
W(REAR NO.8 SEAT=2+1)
W(FR MANUAL HEATER & RR HEATER)
sub82115-36213
SINGAPORE SPEC
SINGAPORE SPEC
SINGAPORE SPEC
sub82115-36323
sub82115-36332
sub82115-36342
82164WIRE, FRAME
82210CFUSIBLE LINK
30A,GREEN
30A,TERM.:FEMALE,PNK,PACIFIC
30A,TERM.:FEMALE,PNK,ENGINE ROOM SIDE
60A,TERM.:MALE,YEL
80A,TERM.:MALE,BLK
main90982-08223iBB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB42,HZB50..HRF..(26S,30S)..WC;BB50,58,RZB40,50..LHD.199301-200408
30A,TERM.:MALE,PNK
50A,TERM.:MALE,RED
100A,TERM.:MALE,BLUE
120A,TERM.:MALE,WHT
30A,TERM.:FEMALE,PNK,YAZAKI
30A,TERM.:FEMALE,PNK
main90982-08281iBB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN199907-201501
40A,TERM.:FEMALE,GRN
50A,TERM.:FEMALE,RED
30A,TERM.:FEMALE,PNK
140A,TERM.:MALE,RBR
10A
15A
7.5A,MINI FUSE,BRN
82214AWIRE, LAMP
W(AIR CLEANER)
W(AIR CLEANER)
W(AIR CLEANER)
W(AIR CLEANER)
W(AIR CLEANER PLUGGING WARNING)
W(AIR CLEANER PLUGGING WARNING)
main82214-36072iBB42..WC..GCC;RZB40..WOC..GEN;BB42..LHD..26S..GEN;RZB40..26S..WC..(GCC,GEN);BB50,HZB50,RZB50..LHD..STD..(GCC,GEN)..CBU..5F199907-200708
W(AIR CLEANER)
W(AIR CLEANER)
W(AIR CLEANER)
W(AIR CLEANER)
W(AIR CLEANER PLUGGING WARNING)
W(AIR CLEANER PLUGGING WARNING)
W(FRONT FOG LAMP)
W(AIR CLEANER)
W(AIR CLEANER PLUGGING WARNING)
CHINA SPEC
CHINA SPEC & W(E-MARK)
CHINA SPEC & W(FRONT FOG LAMP)
CHINA SPEC & W(AIR CLEANER)
CHINA SPEC & W(AIR CLEANER & E-MARK)
CHINA SPEC & W(AIR CLEANER & FRONT FOG LAMP)
W(AIR CLEANER PLUGGING WARNING)
SINGAPORE SPEC
W(AIR CLEANER PLUGGING WARNING)
W(AIR CLEANER PLUGGING WARNING)
W(DOUBLE SWING BACK DOOR)
W(DOUBLE SWING BACK DOOR) OR W(GLIDING AUTO SIDE DOOR)
W(DOUBLE SWING BACK DOOR)
W(DOUBLE SWING BACK DOOR)
W(GLIDING AUTO SIDE DOOR)
82219AWIRE, SENSOR
*196,NO.1
*196,NO.3
NO.1
NO.3
NO.1
NO.1
main82219-36050iBB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F..TD;BB42,50,58..HRF.199907-201501
82241CWIRE, RELAY
main82241-36021iBB4#..RHD..WOC;BB42..WOC..GCC;HZB50..RHD..SRF;HZB50..HRF..WOC..DSL;HZB50..30S..GEN..4FC199505-199705
*EX-USSR OR W(*RWD)
24V
*EX-USSR OR BATTERY 48D26RX2 OR W(*RWD) OR W(FOLDING AUTO DOOR)
BATTERY 48D26RX2 OR W(FOLDING AUTO DOOR)
*EX-USSR OR W(*RWD)
BATTERY 48D26RX2 OR W(*RWD & FOLDING AUTO DOOR)
W(BATTERY=48D26R X 2)
W(FOLDING AUTO DOOR)
W(REAR WINDOW DEFOGGER OR FOLDING AUTO DOOR)
W(GLIDING AUTO DOOR)
W(REAR WINDOW DEFOGGER OR GLIDING AUTO DOOR)
main82241-36031iHZB50..GCC..4FC;HZB50..LHD..WC..5F..DSL;BB4#,HZB50..RHD..HRF..(17S,19S,20S,22S,30S)..WC199505-199705
W(REAR WINDOW DEFOGGER OR FOLDING AUTO DOOR)
W(REAR WINDOW DEFOGGER OR FOLDING AUTO DOOR)
*EX-USSR OR W(REAR WINDOW DEFOGGER OR FOLDING AUTO DOOR)
W(FOLDING AUTO DOOR)
W(REAR WINDOW DEFOGGER OR FOLDING AUTO DOOR)
12V
W(FOLDING AUTO DOOR)
12V
sub82241-36042
sub82241-36102
sub82241-36032
82422WIRE, ALTERNATOR SUB, NO.1
82423WIRE, ALTERNATOR SUB, NO.2
82424WIRE, ALTERNATOR SUB, NO.3
82627AWIRE, FUSIBLE LINK
82822BRACKET,CONNECTOR BLOCK
NO.1
NO.2
82822BBRACKET, CONNECTOR BLOCK
82823CAP, TERMINAL, NO.1
CHINA SPEC
*EX-USSR
82823TCAP, ALTERNATOR TERMINAL
DARK GRAY
main82823-22050iBB50..17S,20S,21S,30S;BB42,59,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5#200408-201612
BLACK
8401
9011906005
main90119-06005
9011906915
main90119-06915
9017906200
main90179-06200
9017908204
main90179-08204
9165160616
main91651-60616
20 parts on this diagram · 46 diagrams in section
