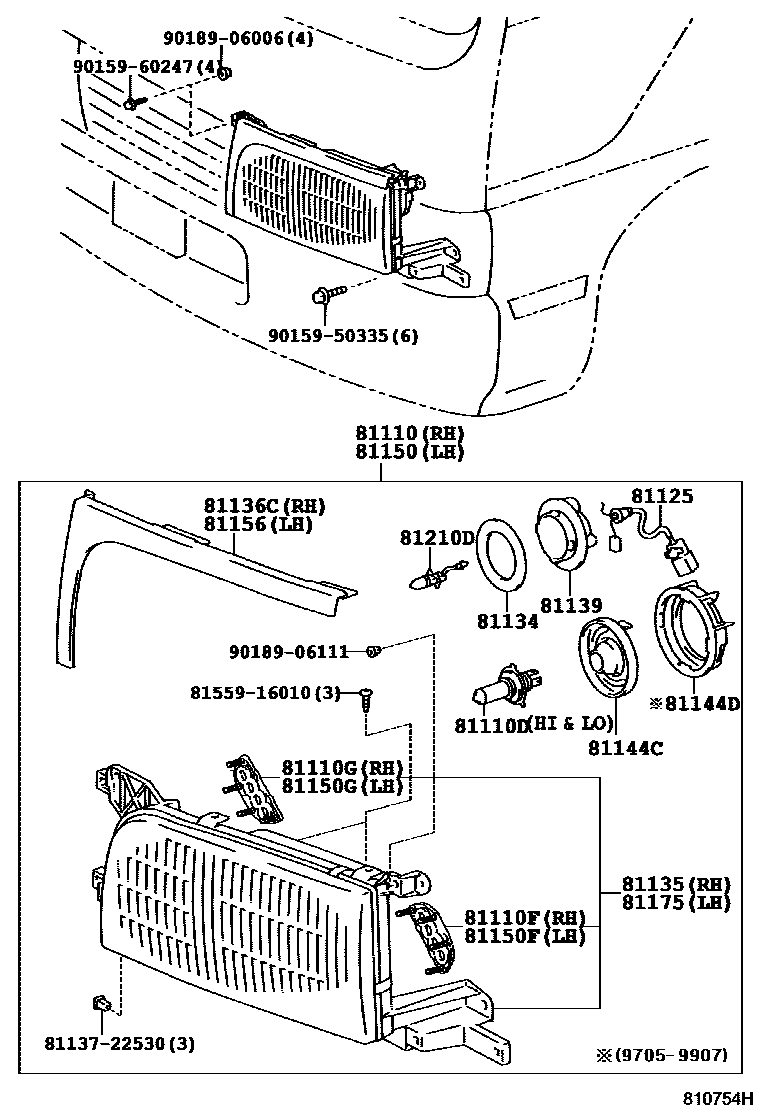

HEADLAMP

0001 1 0003 1SEMI-SEALD BEAM HEADLAMP 0004 1 0005 1

81110HEADLAMP ASSY, RH

main81110-36180iBB42,HZB50..LHD..DSL199301-199308

24V

sub81110-36181

main81110-36181iBB42..22S;BB42..WOC..GCC199308-200306

24V

sub81110-36182

main81110-36181iBB50..WOC..TD200108-200306

sub81110-36182

main81110-36182iBB42,50,HZB50..LHD..5F200306-200607

24V

sub81130-36182

sub90981-08H14

sub90981-08H16

main81110-36190iBB40,HZB50..ARL199301-199308

24V

sub81110-36191

main81110-36191iBB40,HZB50..ARL199308-200108

24V

main81110-36200iHZB50..RHD..SRF;BB42,HZB50..RHD..WOC..GEN199301-199308

12V

sub81110-36201

main81110-36201iBB42..RHD..SRF199308-200306

12V

sub81110-36202

main81110-36202iBB42..RHD..WOC200306-200607

12V

sub81130-36182

sub90981-02051

sub90981-02H12

sub90981-02H13

main81110-36210iBB42,HZB50..LHD..WOC..DSL199301-199308

12V

sub81110-36211

main81110-36211iRZB40,50;BB42,HZB50..LHD..WOC..DSL199308-200306

12V

sub81110-36212

main81110-36212iRZB50..GCC;RZB40..SRF..GCC200408-200708

main81110-36220iBB42,HZB50..LHD..DSL199301-199308

24V, YELLOW BULB

sub81110-36221

main81110-36221iBB42,HZB50..LHD..DSL199308-200108

24V, YELLOW BULB

sub81110-36H00

main81110-36231iRZB40,50..(26S,30S)..GEN;BB42,HZB50..LHD..WOC..GEN199309-200306

W(SEMI-SEALED BEAM HEADLAMP),12V

sub81110-36232

main81110-36231iRZB40,50..STD..GCC200108-200306

sub81110-36232

main81110-36232iTRB40,50..GEN;BB42,HZB50..LHD..WOC200306-201501

W(SEMI-SEALED BEAM HEADLAMP),12V

main81110-36232iBB42,HZB50..LHD..WOC;TRB40,50,XZB40,50..LHD..GEN201501

12V

main81110-36240iBB42,HZB50..RHD..(GEN,SCO)199301-199308

24V

sub81110-36241

main81110-36241iBB42..RHD..SRF;BB42,HZB50..RHD..HRF..STD..WC..GEN..5F199308-200306

24V

sub81110-36242

main81110-36242iBB42,HZB50..RHD200306-200607

24V

sub81130-36182

sub90981-08H12

sub90981-08H13

sub90981-08H15

sub90981-08H16

main81110-36250iBB42,HZB50..LHD..WOC..DSL199301-199308

12V, YELLOW BULB

sub81110-36251

main81110-36251iRZB40,50..GCC,GEN;BB42,HZB50..LHD..WOC199308-200108

12V, YELLOW BULB

sub81110-36H01

main81110-36260iBB42,HZB50..LHD..WOC..GEN199301-199308

W(SEMI-SEALED BEAM HEADLAMP),24V

sub81110-36261

main81110-36260iBB42,HZB50..LHD..WOC..GEN199301-199308

CHINA SPEC

sub81110-36261

main81110-36261iHZB50..LHD..EX199308-200306

W(SEMI-SEALED BEAM HEADLAMP),24V

sub81110-36262

main81110-36261iBB42..LHD..HRF..WOC;BB50..STD..GEN..CBU..5F..TD;BB42,HZB50..LHD..(26S,30S)..WC..GEN199308-200306

CHINA SPEC

sub81110-36262

main81110-36261iBB42,HZB50..GCC200108-200306

sub81110-36262

main81110-36262iBB42,HZB50..GCC200306-201501

W(SEMI-SEALED BEAM HEADLAMP),24V

main81110-36262iBB42,HZB50..LHD..GEN201501

24V

main81110-36270iBB42,43,50..17S,20S199705-199907

W(FOG LAMP-HALOGEN)

sub81130-36270

main81110-36280iBB50..STD..GEN199705-200008

CHINA SPEC

main81110-36280iBB50..STD..WC..IV..5F199907-200108

main81110-36290iRZB40,50..CHI200012-200108

main81110-36290iRZB40,50..HRF..GEN199705-200008

CHINA SPEC

main81110-36320iBB58199705-200108

sub81130-36320

main81110-36330iBB50..EX199705-200108

SINGAPORE SPEC

sub81130-36330

main81110-36370iXZB50..ARL200108-200708

main81110-36390iBB50,59..5F..TDEFI200108-200708

main81110-36420iRZB40,50..CHI200108-200408

main81130-36182iBB42,50,HZB50..LHD..GEN..5F200607-200701

24V

main81130-36182iBB42,HZB50..RHD;BB42,HZB50..GCC200607-200708

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13013iRZB40..HRF..GCC199309-201501

12V 45/40W,WHITE

main90981-13014iRZB40,50;BB42,HZB50..LHD..WOC..DSL199301-200108

12V 45/40W,YELLOW

sub90981-13H00

main90981-13058iBZB40,50..STD200108-200708

12V 60/55W,HALOGEN

main90981-13063iXZB40,5#..ARL,GEN,TAIW200708-201501

12V 55W,HALOGEN

main90981-17008iBB42,50,HZB50..LHD..STD..GEN..CBU..5F199301-201501

24V 55/50W,WHITE

main90981-17008iBB42,HZB50..LHD..WOC..GEN199301-199505

24V 55/50W,WHITE,CHINA SPEC

main90981-17009iBB42,50,HZB50..LHD..(GCC,GEN)..CBU..5F199301-200108

24V 55/50W,YELLOW

sub90981-17H00

main90981-17011iBB40,HZB50..ARL199301-199907

24V 75/70W,*HAL *WH

sub90981-17019

main90981-17019iBB5#..(ARL,GEN)..TDEFI199907-200708

24V 75/70W,*HAL *WH

main90981-17022iBB42,HZB50..GCC200708-201501

24V 70W

main90981-22004iRZB40,50..HRF..GEN199705-199907

12V 60/55W,*HAL *WH,CHINA SPEC & W(E-MARK)

sub90981-13055

main90981-22004iRZB40,50..CHI199907-200108

12V 60/55W,*HAL *WH

sub90981-13055

81110FGEAR UNIT ASSY, RH NO.1

main90075-50019iBB50,HZB50,RZB40,50..(DX,STD)..(ARL,CHI)199907-200708

main90075-50023iXZB50..STD..GEN200708-201501

81110GGEAR UNIT ASSY, RH NO.2

main90075-50021iBB43,50..RHD..5F199907-200708

81125CORD, HEADLAMP

main81125-36170iBB50..STD..WC..IV..5F199705-200708

main81125-36530iXZB50..STD..GEN200708-201501

81134GASKET, HEADLAMP

main81134-36170iHZB50,RZB40..EX199705-200708

81135UNIT ASSY, HEADLAMP, RH

main81130-36270iBB43,50..RHD..5F199705-200108

main81130-36280iBB42,HZB50,RZB40,50..LHD..HRF..WC..GEN199705-200008

CHINA SPEC

main81130-36280iBB50..STD..WC..IV..5F199907-200211

main81130-36320iBB58199705-200108

main81130-36330iBB50..EX..GEN..CBU199705-200108

SINGAPORE SPEC

main81130-36370iHZB50..ARL200108-200708

main81130-36390iBB59,BZB50..EX;BB50..5F..TDEFI200108-200708

main81130-36410iBB50,58..GEN..6F200108-200708

main81130-36550iBZB40,50,XZB40,5#..GEN201209-201501

main81130-36570iXZB5#..EX..5F201209-201501

SINGAPORE SPEC

main81130-36570iXZB50..STD..GEN200708-201209

main81130-36610iBB42,HZB50,TRB40,50,XZB50..GCC,TAIW200708-201501

81136CRIM, HEADLAMP, RH

main81116-36170iBB42,HZB50,RZB40,50..LHD..HRF..WC..GEN199705-200211

main81116-36380iBB50,HZB50,RZB40,50..(DX,STD)..(ARL,CHI)200108-200708

81139COVER, HEADLAMP SOCKET

main81139-36170iHZB50,RZB40..EX199705-200708

81144CCOVER, HEADLAMP SOCKET

main90075-65002iBB42..17S,22S;BB43,5#,RZB40,50..HRF..GEN;BB42,HZB50..LHD..HRF..(20S,26S,30S)..WC..GEN199705-200708

81144DCAP, HEADLAMP LOCKING

main90075-99057iBB50,RZB40..HRF..WC..GEN;BB42,RZB50..HRF..(17S,22S,30S)..(GEN,SCO);BB42,HZB50..LHD..HRF..(20S,26S,30S)..WC..GEN199705-199907

81150HEADLAMP ASSY, LH

main81150-36160iBB42,HZB50..LHD..DSL199301-199308

24V

sub81150-36161

main81150-36161iBB42..22S;BB42..WOC..GCC199308-200306

24V

sub81150-36162

main81150-36161iBB50..WOC..TD200108-200306

sub81150-36162

main81150-36162iBB42,50,HZB50..LHD..5F200306-200607

24V

sub81170-36162

sub90981-08H14

sub90981-08H16

main81150-36170iBB40,HZB50..ARL199301-199308

sub81150-36171

main81150-36171iHZB50..ARL199308-200108

24V

main81150-36180iHZB50..RHD..SRF;BB42,HZB50..RHD..WOC..GEN199301-199308

12V

sub81150-36181

main81150-36181iHZB50..RHD..SRF;BB42,HZB50..RHD..WOC..GEN199308-200306

12V

sub81150-36182

main81150-36182iBB42..RHD..WOC200306-200607

12V

sub81170-36162

sub90981-02051

sub90981-02H12

sub90981-02H13

main81150-36190iBB42,HZB50..LHD..WOC..DSL199301-199308

12V

sub81150-36191

main81150-36191iBB42,HZB50,RZB40..LHD..WOC..GEN;RZB40,50..(26S,30S)..WC..(GCC,GEN)199308-200306

12V

sub81150-36192

main81150-36192iRZB40,50..GEN;BB42,HZB50..LHD..WOC200408-200708

main81150-36200iBB42,HZB50..LHD..DSL199301-199308

24V, YELLOW BULB

sub81150-36201

main81150-36201iBB42,HZB50..LHD..DSL199308-200108

24V, YELLOW BULB

sub81150-36H00

main81150-36211iRZB40,50..GEN;BB42,HZB50..LHD..WOC..GEN199309-200108

W(SEMI-SEALED BEAM HEADLAMP),12V

sub81150-36212

main81150-36211iRZB40,50..STD..GCC200108-200306

sub81150-36212

main81150-36212iBB42,HZB50..LHD..WOC;TRB40,50,XZB40,50..LHD..GEN201501

12V

main81150-36212iRZB50;RZB40..GEN;RZB40..SRF..GCC200306-201501

W(SEMI-SEALED BEAM HEADLAMP),12V

main81150-36220iBB42,HZB50..RHD..(GEN,SCO)199301-199308

24V

sub81150-36221

main81150-36221iHZB50..RHD..SRF;BB42,HZB50..RHD..HRF..WOC..GEN;BB43,HZB50..RHD..(17S,20S,22S)..GEN199308-200306

sub81150-36222

main81150-36222iBB42,HZB50..RHD200306-200607

24V

sub81170-36162

sub90981-08H12

sub90981-08H13

sub90981-08H15

sub90981-08H16

main81150-36230iBB42,HZB50..LHD..WOC..DSL199301-199308

12V, YELLOW BULB

sub81150-36231

main81150-36231iRZB40,50;BB42,HZB50..LHD..WOC..DSL199308-200108

12V, YELLOW BULB

sub81150-36H01

main81150-36240iBB42,HZB50..LHD..WOC..GEN199301-199308

W(SEMI-SEALED BEAM HEADLAMP),24V

sub81150-36241

main81150-36240iBB42,HZB50..LHD..WOC..GEN199301-199308

CHINA SPEC

sub81150-36241

main81150-36241iBB42,HZB50..LHD..WC..GEN..5F199308-200306

W(SEMI-SEALED BEAM HEADLAMP),24V

sub81150-36242

main81150-36241iBB42,HZB50..GCC200108-200306

sub81150-36242

main81150-36241iBB42,HZB50..LHD..WC..GEN..5F199308-200306

CHINA SPEC

sub81150-36242

main81150-36242iBB42..LHD..HRF200306-201501

W(SEMI-SEALED BEAM HEADLAMP),24V

main81150-36242iBB42,HZB50..LHD..GEN201501

24V

main81150-36250iBB42,43,50..17S,20S199705-199907

W(FOG LAMP-HALOGEN)

sub81170-36250

main81150-36260iBB50..STD..GEN199705-200008

CHINA SPEC

main81150-36260iBB50..STD..WC..IV..5F199907-200108

main81150-36270iRZB40,50..HRF..GEN199705-200008

CHINA SPEC

main81150-36270iRZB40,50..CHI200012-200108

main81150-36300iBB58199705-200108

sub81170-36300

main81150-36310iBB50..EX..GEN..CBU199705-200108

SINGAPORE SPEC

sub81170-36310

main81150-36350iHZB50..ARL200108-200708

main81150-36370iXZB5#..GEN200108-200708

main81150-36400iRZB40..EX200108-200408

main81170-36162iBB42,HZB50..LHD..WOC200607-200701

BATTERY=(55D23R X2) OR (95D31R X2)

main81170-36162iBB42,HZB50..RHD;BB42,HZB50..GCC200607-200708

81150FGEAR UNIT ASSY, LH NO.1

main90075-50020iBB50,59,BZB40,50..(ARL,GEN)..(LPG,TDEFI)199907-200708

main90075-50023iXZB50..STD..GEN200708-201501

81150GGEAR UNIT ASSY, LH NO.2

main90075-50022iBB43,50..RHD..5F199907-200708

81156RIM, HEADLAMP, LH

main81156-36150iBB42..17S,22S;BB43,5#,RZB40,50..HRF..GEN;BB42,HZB50..LHD..HRF..(20S,26S,30S)..WC..GEN199705-200211

main81156-36360iBB50,HZB50,RZB40,50..(DX,STD)..(ARL,CHI)200108-200708

main81156-36510iXZB50..20S,21S;BZB40,50,XZB40,59..HRF;BB42,HZB50,TRB40,50..GCC200708-201501

81175UNIT ASSY, HEADLAMP, LH

main81170-36250iBB43,50..RHD..5F199705-200108

main81170-36260iBB42,HZB50..LHD..HRF..WC..GEN199705-200008

CHINA SPEC

main81170-36260iBB50..STD..WC..IV..5F199907-200211

main81170-36300iBB58199705-200108

main81170-36310iBB50..EX..GEN..CBU199705-200108

SINGAPORE SPEC

main81170-36350iXZB50..ARL200108-200708

main81170-36370iBB50,59,BZB40,50..RHD..5F200108-200708

main81170-36390iBB50,58,HZB50,RZB40..LHD..(17S,19S,20S,23S)..(GCC,GEN)200108-200708

main81170-36530iBZB40,50,XZB40,5#..RHD..GEN201209-201501

main81170-36550iXZB50..ARL201209-201501

SINGAPORE SPEC

main81170-36550iXZB50..STD..GEN200708-201209

main81170-36590iBB42,HZB50,TRB40,50,XZB50..GCC,TAIW200708-201501

81210DBULB, FOG LAMP

main90981-13018iRZB40..EX199907-200708

12V 55W,HALOGEN

main90981-13018iRZB40,50..HRF..GEN199705-199907

12V 55W,HALOGEN,CHINA SPEC & W(FOG LAMP-HALOGEN)

main90981-17016iBB58;BB42,43,50..17S,20S199705-200108

24V 55W,*WSB

main90981-17021iBB50,59,XZB5#..RHD..GEN199705-200708

24V 70W

8113722530PROTECTOR, HEADLAMP, NO.2 RH

main81137-22530

8155916010MOULDING, REAR COMBINATION LAMP, RH

main81559-16010

9015950335

main90159-50335

9015960247

main90159-60247

9018906006

main90189-06006

9018906111

main90189-06111

23 parts on this diagram · 4 diagrams in section
