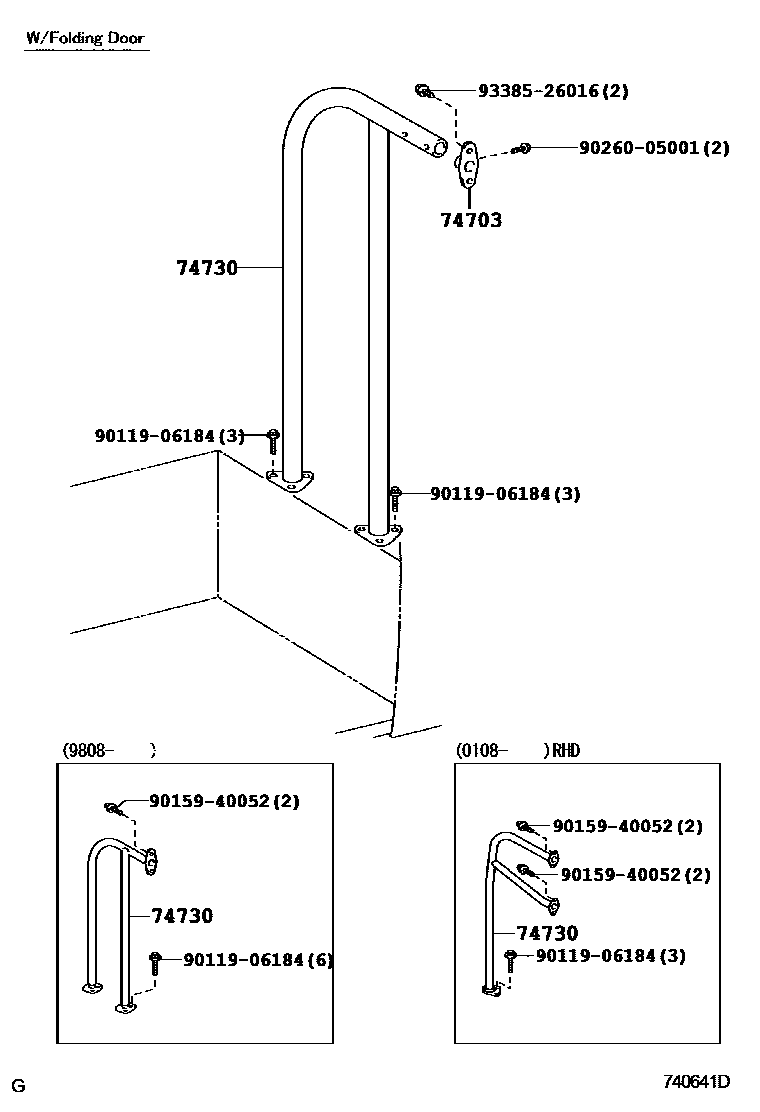

PROTECTOR PIPE, ROLL BAR & HANDRAIL

0001 1DOOR SIDE(FOLDING DOOR) 0002 1DOOR SIDE(FOLDING DOOR) 0006 1DOOR SIDE(FOLDING DOOR) 0008 1DOOR SIDE(FOLDING DOOR) 0009 1DOOR SIDE(GLIDING DOOR) 0010 1DOOR SIDE(GLIDING DOOR) 0011 1DOOR SIDE(GLIDING DOOR) 0012 1DOOR SIDE(GLIDING DOOR) 0013 1ROOF/SIDE WINDOW HAND RAIL 0014 1W(PROTECTOR PIPE) 0016 1W(PROTECTOR PIPE) 0018 1W(PROTECTOR PIPE)

74703FRAME SUB-ASSY, HAND GRIP SIDE

main74703-90B00iBB50..EX199705-199808

SINGAPORE SPEC

main74703-90B00iHZB50..SCO;HZB50..LHD..EX;HZB50..STD..DSL;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S199301-201501

74730FRAME ASSY, HAND GRIP

main74707-36070iBB42,43..17S199308-199808

sub74707-36071

main74707-36071iBB43199808-199907

main74707-36072iBZB40199907-200410

main74730-36020iBB42,58,HZB50,RZB40,50..LHD..STD..CBU199301-199808

sub74730-36021

main74730-36021iBB42,50,HZB50,RZB40,50,TRB40,50..LHD..5F199808-201501

main74730-36030iBB50..EX199705-199808

SINGAPORE SPEC

sub74730-36031

main74730-36030iHZB50..SCO;BB40,42,HZB50..RHD..STD..(ARL,GEN)199301-199808

sub74730-36031

main74730-36031iHZB50..RHD..STD;BB42,50..RHD..CBU199808-200108

main74730-36070iBB42,50,HZB50..RHD..(20S,21S,22S,26S,30S)..(EX,STD)200108-201501

9011906184

main90119-06184

9015940052

main90159-40052

9026005001

main90260-05001

9338526016

main93385-26016

6 parts on this diagram · 12 diagrams in section
