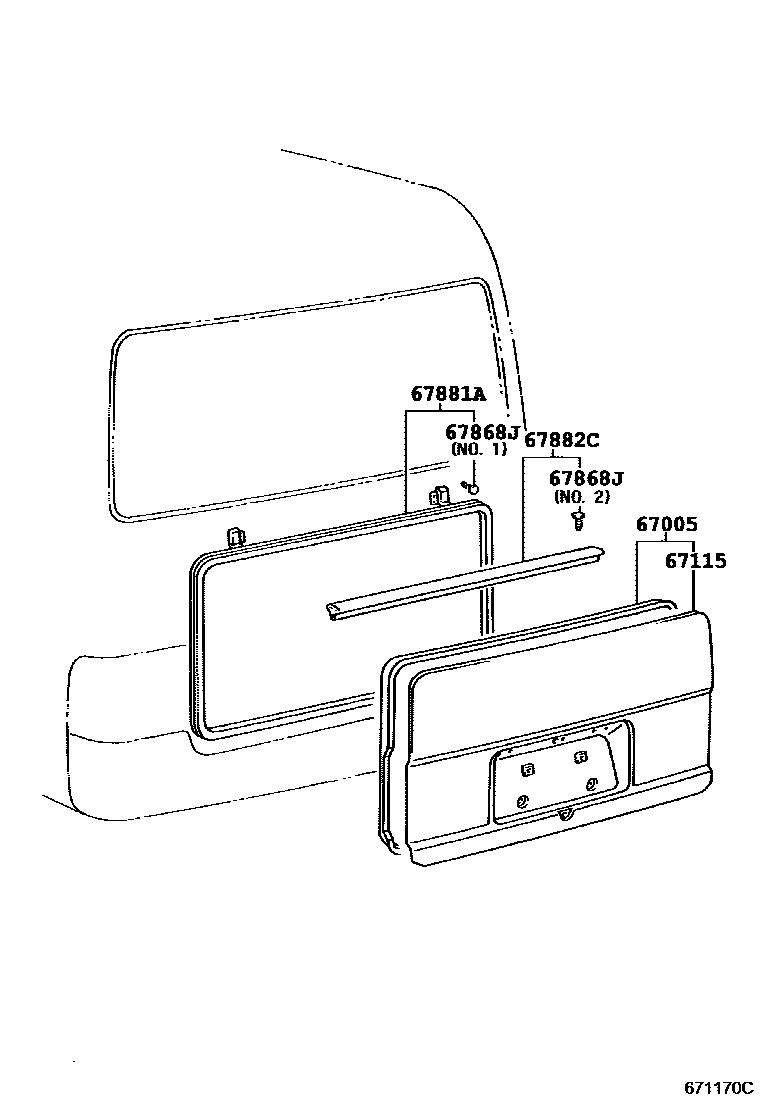

BACK DOOR PANEL & GLASS

0001 1LUGGAGE DOOR(PANEL) 0002 1LUGGAGE DOOR(TRIM) 0003 1DOUBLE SWING BACK DOOR(PANEL)0004 1DOUBLE SWING BACK DOOR(TRIM) 0005 1SINGLE SWING BACK DOOR(PANEL)0006 1SINGLE SWING BACK DOOR(PANEL)0007 1SINGLE SWING BACK DOOR(TRIM)

67005PANEL SUB-ASSY, BACK DOOR

main67006-36040iBB42,HZB50..RHD..STD..GEN..5F199301-199705

W(*SSBD)

sub67006-36160

main67006-36090iHZB50..SCO199301-199705

SINGAPORE SPEC

sub67006-36170

main67006-36110iBB40,HZB50..ARL199705-200211

W(*SSBD)

main67006-36160iHZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN199705-200908

W(*SSBD)

main67006-36160iBB50,BZB50..EX200408-200908

main67006-36170iBB50..EX199705-200908

SINGAPORE SPEC

main67006-36230iBB50..ARL200211-200908

main67006-36240iBB50..ARL200211-200908

W(REAR UNDER MIRROR)

main67006-36270iBB42..RHD..WOC200408-200908

W(REAR UNDER MIRROR)

main67006-36270iXZB40200803-200908

main67006-36280iXZB59200408-200908

SINGAPOLE SPEC & W(REAR UNDER MIRROR)

main67006-36450iBB42..RHD..WOC;BB42,HZB50,XZB50..RHD..HRF..GEN200908-201501

W(*SSBD)

main67006-36450iHZB50,XZB50..RHD..GEN201501-201612

main67006-36460iXZB50..EX..5F200908-201612

SINGAPORE SPEC

main67006-36470iXZB50..ARL200908-201501

W(*SSBD)

main67006-36480iXZB50..ARL200908-201501

W(REAR UNDER MIRROR)

main67006-36500iBZB40,HZB50,XZB40,5#..RHD..GEN200908-201612

W(REAR UNDER MIRROR)

main67006-36510iXZB5#..EX..5F201501-201612

SINGAPORE SPEC & W(REAR UNDER MIRROR)

main67006-36510iXZB5#..GEN200908-201501

SINGAPOLE SPEC & W(REAR UNDER MIRROR)

main67006-36640iXZB50..ARL201501-201612

W(BACK MONITOR)

main67006-36650iXZB50..ARL201501-201612

W(BACK MONITOR & REAR UNDER MIRROR)

main67008-36020iBB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S199301-201612

W(LUGGAGE BOX)

67115PANEL, BACK DOOR, OUTER

main67115-36030iBB42,RZB40,50..GCC,GEN;HZB50..(20S,30S)..(GCC,GEN)199301-201501

67868JRETAINER, DOOR WEATHERSTRIP

main67867-12150iBB42,50,59,BZB40,50,HZB50..RHD..(ARL,GEN)200303-201501

W(LUGGAGE COMPARTMENT DOOR),NO.2

main67867-12150iBB50..19S,20S,30S;BB42,58,HZB50,RZB40,50..STD200303-201501

W(DOUBLE SWING BACK DOOR),RH

main67867-12150iBZB40,HZB50,XZB40,5#..RHD200303-201501

W(SINGLE SWING BACK DOOR)

main67867-12150iXZB50..EX..5F200408-200808

RH

main67868-30030iHZB50,XZB50..LHD..HRF..WC..(GEN,TAIW)200408-201501

W(DOUBLE SWING BACK DOOR),CENTER

main67868-30030iXZB50..GEN..4FC200408-200808

CENTER

main67868-30030-01iRZB40..EX199309-199907

BLACK,TRIM4#

sub67868-30030

main67868-30030-01iBB42,HZB50,RZB40,50..(20S,22S,26S,30S)..(GCC,GEN)199301-199907

W(*DSBD),BLACK,TRIM4#

sub67868-30030

main67868-30030-01iBB4#,5#,RZB50..(GCC,GEN)..CBU;HZB50,RZB40..STD..(GCC,GEN)..5F199907-200108

BLACK,TRIM4#,CENTER

sub67868-30030

main67868-30030-01iHZB50..30S;BB42,50,58,RZB40,50..(19S,20S,23S,26S,30S)..(GCC,GEN)200108-200408

W(DOUBLE SWING BACK DOOR),BLACK,TRIM1#,CENTER

sub67868-30030

main67868-30040iBB58199301-200303

RH

main67868-30040iBB42,50,HZB50,RZB40,50..STD..(GCC,GEN)..CBU..5F199301-199907

W(*DSBD),LH

main67868-30040iBB50..LHD..CBU;BB42,HZB50,RZB40,50..(CHI,GCC,GEN)..5F199907-200303

NO.2

main67868-30040iBB42,50,HZB50,RZB40,50..STD..(GCC,GEN)..CBU..5F199301-199907

W(*DSBD),RH

main67868-30040iBB50..LHD..CBU;BB42,HZB50,RZB40,50..(CHI,GCC,GEN)..5F199301-200303

LH

main67868-30040iBB50..LHD..CBU;BB42,HZB50,RZB40,50..(CHI,GCC,GEN)..5F199301-200303

W(SINGLE SWING BACK DOOR)

main67868-30040iBZB50..STD200302-200303

main67868-30040iBB50..LHD..CBU;BB42,HZB50,RZB40,50..(CHI,GCC,GEN)..5F199907-200408

NO.1

main67868-30040iBB43,50..RHD..CBU199808-199907

W(*DSBD)

main67868-30040iRZB40..HRF..GCC200408-201501

W(LUGGAGE COMPARTMENT DOOR),NO.1

main67868-30040iBB42..LHD..HRF..26S199505-199705

TAIWAN SPEC OR W(*DSBD),LH

main67868-30040iBB42..LHD..HRF..26S199505-199705

TAIWAN SPEC OR W(*DSBD),RH

67881AWEATHERSTRIP, BACK DOOR

main67881-36010iBB50,RZB40,50..CHI199301-200312

W(LUGGAGE COMPARTMENT DOOR)

sub67881-36040

main67881-36020iBB42..RHD..SRF;BB50..RHD..CBU..TDEFI;BB42,59,BZB40,50..RHD..WC;HZB50..RHD..HRF..STD..WC..GEN..5F199301-200312

W(SINGLE SWING BACK DOOR)

sub67881-36021

main67881-36021iXZB40200312-201501

W(SINGLE SWING BACK DOOR)

main67881-36030iBB42,50,HZB50,RZB40,50..STD..(GCC,GEN)..CBU..5F199301-199808

W(*DSBD)

sub67881-36031

main67881-36030iHZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,20S,22S)..GEN199808-200312

W(DOUBLE SWING BACK DOOR)

sub67881-36031

main67881-36030iBB42..LHD..HRF..26S199505-199705

TAIWAN SPEC OR W(*DSBD)

sub67881-36031

main67881-36031iHZB50,TRB50..26S;HZB50..LHD..HRF..30S..WC..GEN;BZB40,50,XZB50..STD..WC..(GEN,TAIW)200312-201501

W(DOUBLE SWING BACK DOOR)

main67881-36040iBB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S200312-201501

W(LUGGAGE COMPARTMENT DOOR)

67882CWEATHERSTRIP, BACK DOOR, NO.2

main67882-36010iBB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S201501

W(LUGGAGE COMPARTMENT DOOR)

main67882-36010iBB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50,RZB50..30S..(GCC,GEN);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC199301-201501

main67882-36020iRZB40..HRF..GCC200108-201501

W(DOUBLE SWING BACK DOOR)

main67882-36020iXZB50..GEN..4FC200708-200808

main67882-36020iBB42,HZB50,RZB40,50..GCC,GEN199301-200408

W(*DSBD)

main67882-36020iBB42..22S;HZB50..30S;RZB40,50..STD;BB42..RHD..GEN;BB42..LHD..SRF199505-199705

TAIWAN SPEC OR W(*DSBD)

5 parts on this diagram · 7 diagrams in section
