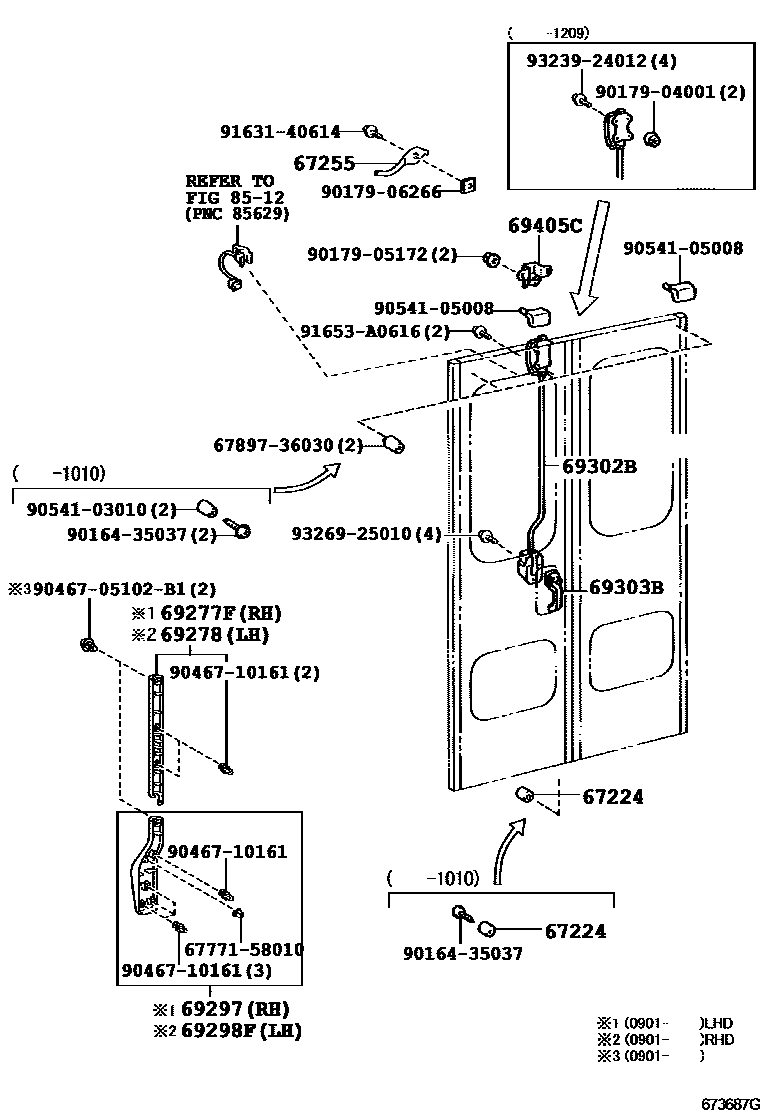

CENTER DOOR LOCK & HINGE

0001 1FOLDING DOOR 0002 1FOLDING DOOR 0003 1GLIDE DOOR 0004 1MECHANICAL DOOR 0005 1MECHANICAL DOOR 0006 1MECHANICAL DOOR 0007 1MECHANICAL DOOR

67224GUM, DOOR CUSHION, NO.2

main67224-90500iBB4#,58,HZB50,RZB40,50..STD..CBU199301-200108

SINGAPORE PACKAGE

main67224-90500iBB50,HZB50,RZB40,50..STD..(ARL,CHI)199907-201010

main90541-09125iBB42,BZB40,50,HZB50,TRB40,50,XZB40,50..(EX,STD)..5F201011-201501

67255STOPPER, CENTER INSIDE LOCK

main67255-36010iBB42,HZB50..RHD..STD..GEN199301-199902

main67255-36011iBB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;RZB40..26S..WC..(GCC,GEN);HZB50,RZB40..LHD..WOC..GEN;BB42,HZB50..HRF..(26S,30S)..WC;BB50,BZB40,199902-201501

main67255-36020iBB42,HZB50,RZB40,50..LHD..STD..CBU199301-199902

69277FBEZEL, DOOR INSIDE HANDLE, NO.1 RH

main69277-36010-B0iBB42,50,HZB50,TRB40,50,XZB50..LHD..(GEN,TAIW)200901-201612

MD.CHARCOAL,TRIM1#

69278BEZEL, DOOR INSIDE HANDLE, NO.1 LH

main69278-36010-B0iBB42,BZB40,50,HZB50,XZB40,50..RHD..(EX,STD)..5F200901-201612

MD.CHARCOAL,TRIM1#

69297BEZEL, DOOR INSIDE HANDLE, NO.2 RH

main69297-36010-B0iBB42,HZB50,TRB40,50..GCC200901-201612

MD.CHARCOAL,TRIM1#

main69297-36020-B0iBB42,HZB50,TRB40,50,XZB40,50..LHD201209-201612

W(*FD AUTO),MD.CHARCOAL,TRIM1#

69298FBEZEL, DOOR INSIDE HANDLE, NO.2 LH

main69298-36010-B0iBZB40,50,XZB40200901-201209

W/O(DESTINATION EXPRESS BOX),MD.CHARCOAL,TRIM1#

main69298-36010-B0iXZB50..RHD..(EX,STD)..WC..CBU200901-201612

MD.CHARCOAL,TRIM1#

main69298-36020-B0iBZB40,50,XZB40200901-201209

MD.CHARCOAL,TRIM1#

main69298-36030-B0iBB42,BZB40,50,HZB50,XZB40,50..RHD..(EX,STD)..CBU201209-201612

W(*FD AUTO),MD.CHARCOAL,TRIM1#

69302BLOCK SUB-ASSY, CENTER DOOR INSIDE HANDLE

main69302-36010iBB4#,HZB50..RHD..STD199301-200108

SINGAPORE SPEC

main69302-36011-B0iHZB50..STD..ARL200108-201209

MD.CHARCOAL,TRIM1#

main69302-36020iBB42,58,HZB50,RZB40,50..LHD..STD..CBU199301-200108

main69302-36021-B0iBB50,RZB40,50..STD..CHI200108-201209

MD.CHARCOAL,TRIM1#

main69302-36030-B0iBB42,BZB40,50,HZB50,XZB40,50..RHD..(EX,STD)..CBU201209-201612

W(*FD AUTO),MD.CHARCOAL,TRIM1#

main69302-36040-B0iBB42,HZB50..RHD201209-201612

MD.CHARCOAL,TRIM1#

main69302-36050-B0iBB42,50,HZB50,TRB40,50,XZB50..LHD..CBU201209-201612

W(*FD AUTO),MD.CHARCOAL,TRIM1#

main69302-36060-B0iBB42,HZB50,TRB40,50,XZB40,50..LHD..GEN201209-201612

MD.CHARCOAL,TRIM1#

69303BHANDLE SUB-ASSY, CENTER DOOR LOCK, OUTSIDE

main69303-36010iRZB40..HRF..GCC199907-201501

main69303-36010iBB50..IV;BB4#,58,HZB50,RZB40,50..STD199301-200108

SINGAPORE SPEC

69405CSTOPPER SUB-ASSY, CENTER DOOR INSIDE LOOK

main69405-90B00iBB4#,58,HZB50,RZB40,50..STD..CBU199301-200108

SINGAPORE SPEC

main69405-90B00iBB50,HZB50,RZB40,50..STD..(ARL,CHI)199907-201501

8512

6777158010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-58010

6789736030SPACER, FRONT DOOR WEATHERSTRIP, RH

main67897-36030

9016435037

main90164-35037

9017904001

main90179-04001

9017905172

main90179-05172

9017906266

main90179-06266

9046705102B1

main90467-05102B1

9046710161

main90467-10161

9054103010

main90541-03010

9054105008

main90541-05008

9163140614

main91631-40614

91653A0616

main91653-A0616

9323924012

main93239-24012

9326925010

main93269-25010

24 parts on this diagram · 7 diagrams in section
