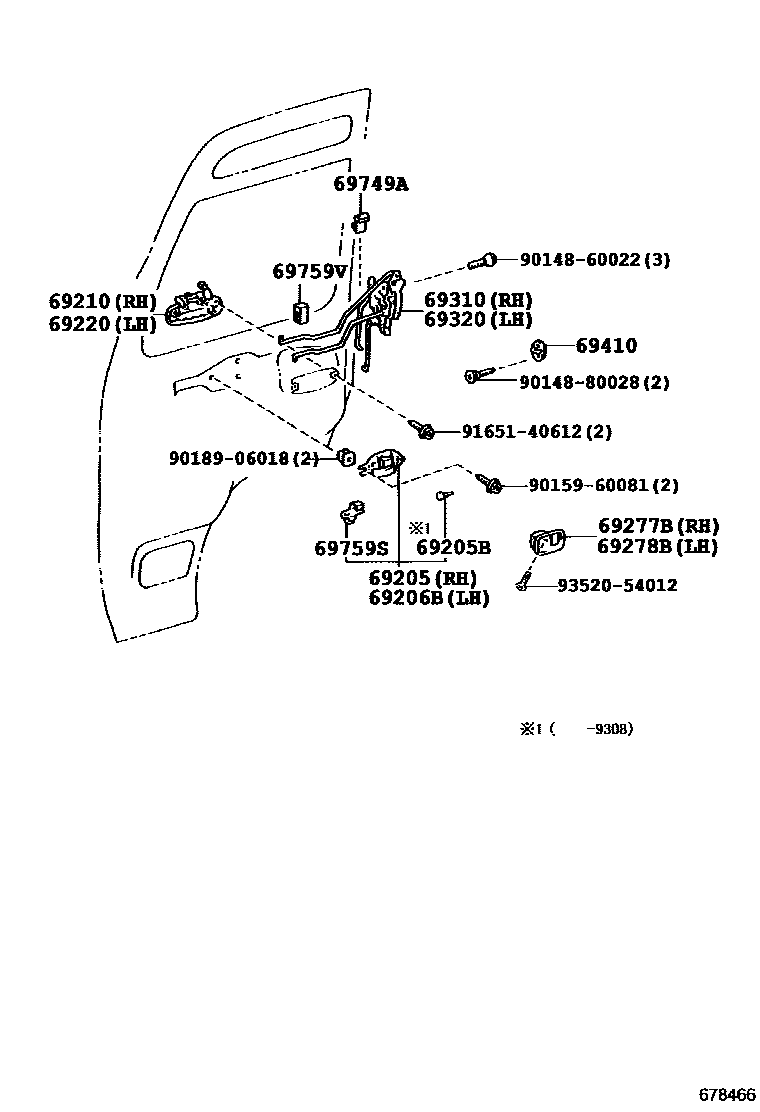

FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-60030-A0iBB4#,HZB50..RHD..DSL199301-199505

IVORY,TRIM4#

main69205-60040-A0iBB4#,50,HZB50..RHD..CBU199505-199907

IVORY,TRIM4#

sub69205-60040

main69205-60040-A1iBB4#,50,HZB50..RHD..(4FC,5F)199907-200108

IVORY,TRIM4#

sub69205-60040

main69205-60040-B1iHZB50..RHD..GEN;BB42,50,59,BZB40,50..RHD..(ARL,GEN)200108-201612

MD.CHARCOAL,TRIM1#

sub69205-60040

main69206-60040-A0iBB42,HZB50,RZB40,50..LHD..CBU199505-199907

IVORY,TRIM4#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04018iBB4#,HZB50..DSL199301-199308

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-60030-A0iBB42,HZB50,RZB40,50..LHD..CBU199301-199505

IVORY,TRIM4#

sub69206-60030

main69206-60040-A0iBB42,5#,HZB50,RZB40,50..LHD..CBU199505-199907

IVORY,TRIM4#

main69206-60040-A1iBB42,5#,HZB50,RZB40,50..LHD..CBU199907-200108

IVORY,TRIM4#

main69206-60040-B1iBB50,RZB40,50..CHI200108-201612

MD.CHARCOAL,TRIM1#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-36010iBB4#,50,HZB50..RHD..CBU199301-201501

NO PAINT REQ.

main69210-36020-E0iBB50,BZB50,XZB50..EX200408-201501

BEIGE ME.,4R4

main69210-36020-F0iBB50,BZB50..EX..GEN200108-200408

CHAMPAGNE ME.,583

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-36010iBB42,5#,HZB50,RZB40,50..LHD..CBU199301-201501

NO PAINT REQ.

main69220-36020-E0iTRB50..HRF..GCC201108-201501

BEIGE ME.,4R4

main69220-36020-F0iHZB50,RZB40..EX200108-200408

CHAMPAGNE ME.,583

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-60010-A0iBB4#,50,HZB50..RHD..CBU199301-199907

IVORY,TRIM4#

sub69277-60010

main69277-60010-A1iBB4#,50,HZB50..RHD..(4FC,5F)199907-200108

IVORY,TRIM4#

sub69277-60010

main69277-60010-B0iBB42,50,59,BZB40,50,HZB50,XZB40,5#..RHD..(ARL,GEN)200108-201612

MD.CHARCOAL,TRIM1#

sub69277-60010

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-60010-A0iBB42,5#,HZB50,RZB40,50..LHD..CBU199301-199907

IVORY,TRIM4#

sub69278-60010

main69278-60010-A1iBB42,5#,HZB50,RZB40,50..LHD..CBU199907-200108

IVORY,TRIM4#

sub69278-60010

main69278-60010-B0iBB42,50,58,HZB50,RZB40,50..LHD..(GCC,GEN)200108-201612

MD.CHARCOAL,TRIM1#

sub69278-60010

69310LOCK ASSY, FRONT DOOR, RH

main69030-36030iBB42..RHD..WOC200908-201108

W(BATTERY=55D23R X2 & *DSBD)

main69030-36040iBB42..RHD..WOC200908-201108

W(DOUBLE SWING BACK DOOR)

main69030-36040iXZB5#..DX,EX200908-201501

W(POWER DOOR LOCK)

main69310-36010iBB4#,HZB50..RHD..DSL199301-199309

main69310-36020iHZB50..RHD..SRF;BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN199309-201501

69320LOCK ASSY, FRONT DOOR, LH

main69040-36010iHZB50..26S..GCC201501

W(POWER DOOR LOCK)

main69040-36010iHZB50..LHD..HRF..WC..GEN200908-201501

W(DOUBLE SWING BACK DOOR)

main69040-36040iTRB50..HRF..GCC201501

W(POWER DOOR LOCK)

main69040-36040iTRB50..HRF..GCC201108-201501

W(GLIDING AUTO SIDE DOOR)

main69320-36010iBB42,HZB50..LHD..DSL199301-199309

main69320-36020iBB50,58..GEN..6F199309-201501

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001iBB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN199301-201501

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-12010iBB4#,5#,HZB50,RZB40,50..CBU199301-201501

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-14050iBB50,58..GEN..6F199301-201501

main69759-24070iBB59,BZB50..EX;BB50..RHD..CBU199301-201501

69759VSILENCER, FRONT DOOR LOCK LINK

main69759-30021iBB4#,5#,HZB50,RZB40,50..CBU199301-201501

9014860022

main90148-60022

9014880028

main90148-80028

9015960081

main90159-60081

9018906018

main90189-06018

9165140612

main91651-40612

9352054012

main93520-54012

19 parts on this diagram · 1 diagram in section
